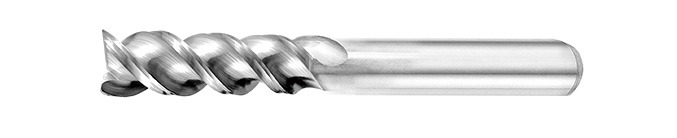

AUE High Feed U-End Mill Aluminum - 3 Flutes

Product Number:AUE
█Features: ①HIGH PERFORMANCE FOR HARD MATERIALS - Cutter is made of Micro Grain Carbide that is very tough, resists wear and offers high cutting performance ②HIGH-QUALITY - Flutes ground by a world-class ISO-9001 Factory █Application: Copper Alloy / Aluminum / Plastic / Wood
  • Application



    ITEM 30HRC 30~40HRC 40~50HRC Carbon steel,
    Alloy steel
    Titanium alloy Nickel/
    Inconel alloy
    Aluminium alloy Copper alloy
    AUE
    ◎ Excellent
    ○ Good




    Features



    1. Special U-Type design:
    Material removal rate (MRR) and surface finishes are greatly improved due to effective chip removal at high rate
    2. Strong tooth with double relief angles:
    Excellent production rates become 100% possible due to the Improvement of tooth hardness.
    3. Sharp aluminum alloy tooth design Applicable for roughing and finishing

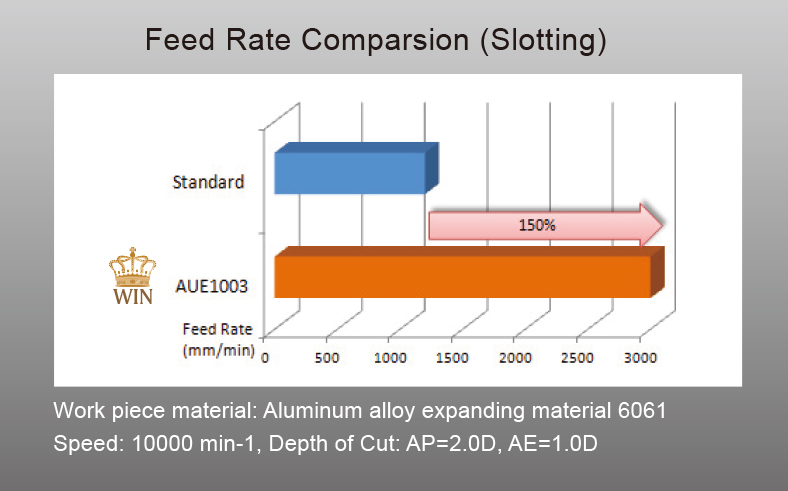

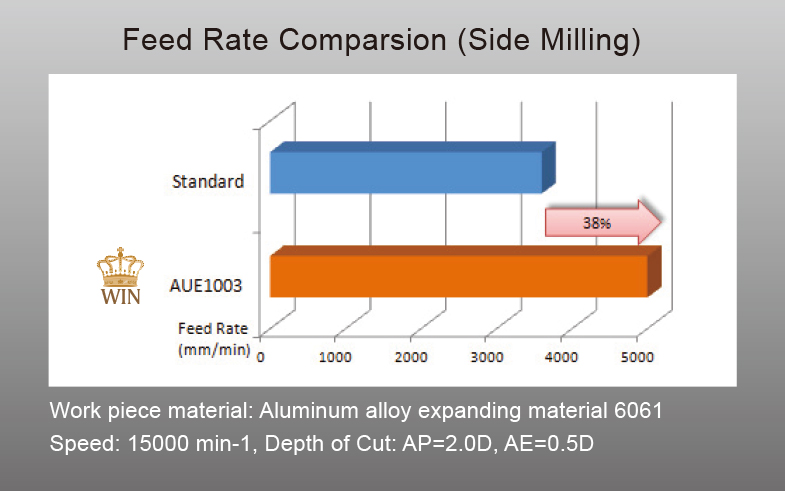

    P174-2P174-1

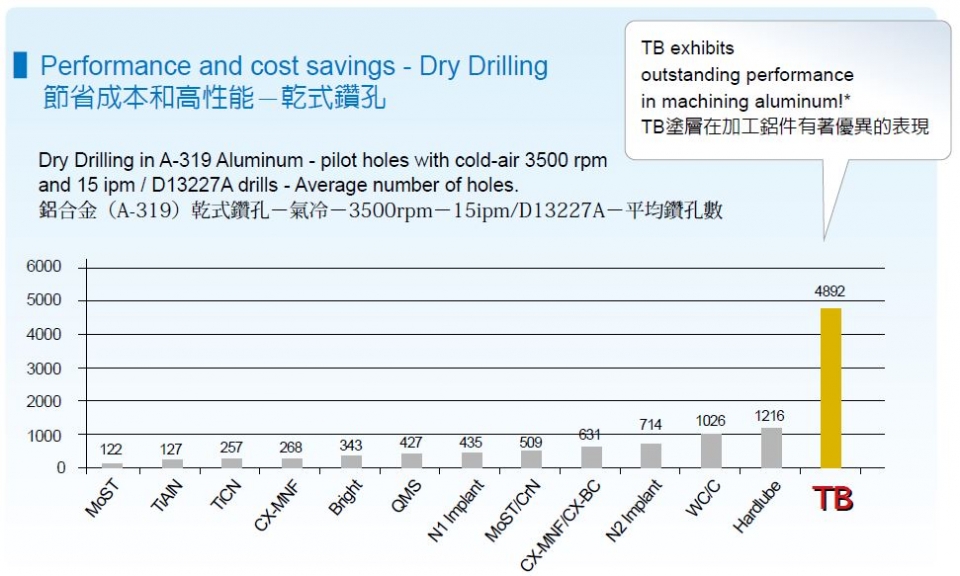

    TB Coating (DLC)
    • Super high lubrication & Super low friction coefficient
    • New PVD Nano Technology
    • The tool is long life to be surprised because TB hardness to near the nature diamond coating
    • Swiss & Speed Tiger Technological Cooperation.​

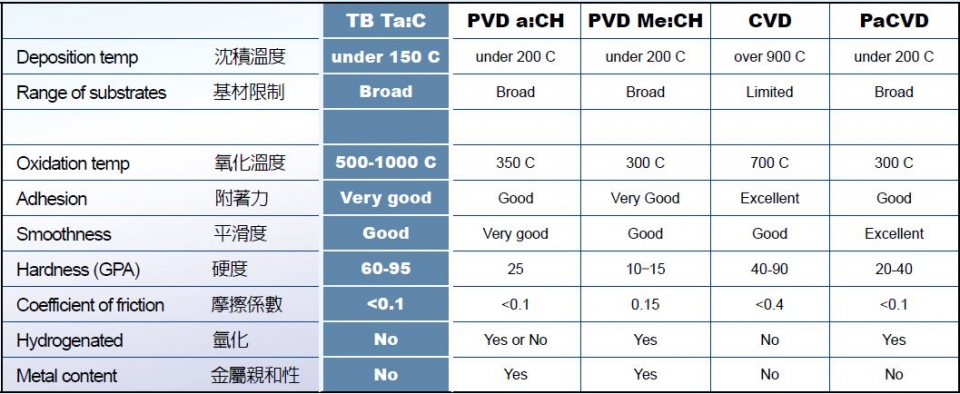

    DLC coatings are generally deposited by five methods, each having different properties:​
    TB-1

    TB-2
    TETRABOND is an excellent choice for machining non-ferrous materials such as:
    • High silicon content aluminium alloys
    • Aluminium magnesium matrix materials
    • Titanium 6Al4V
    • Epoxy resins
    • Fibreglass and composites
    • Plastic
    • Graphite
    • Brass and bronze
    • Ceramics

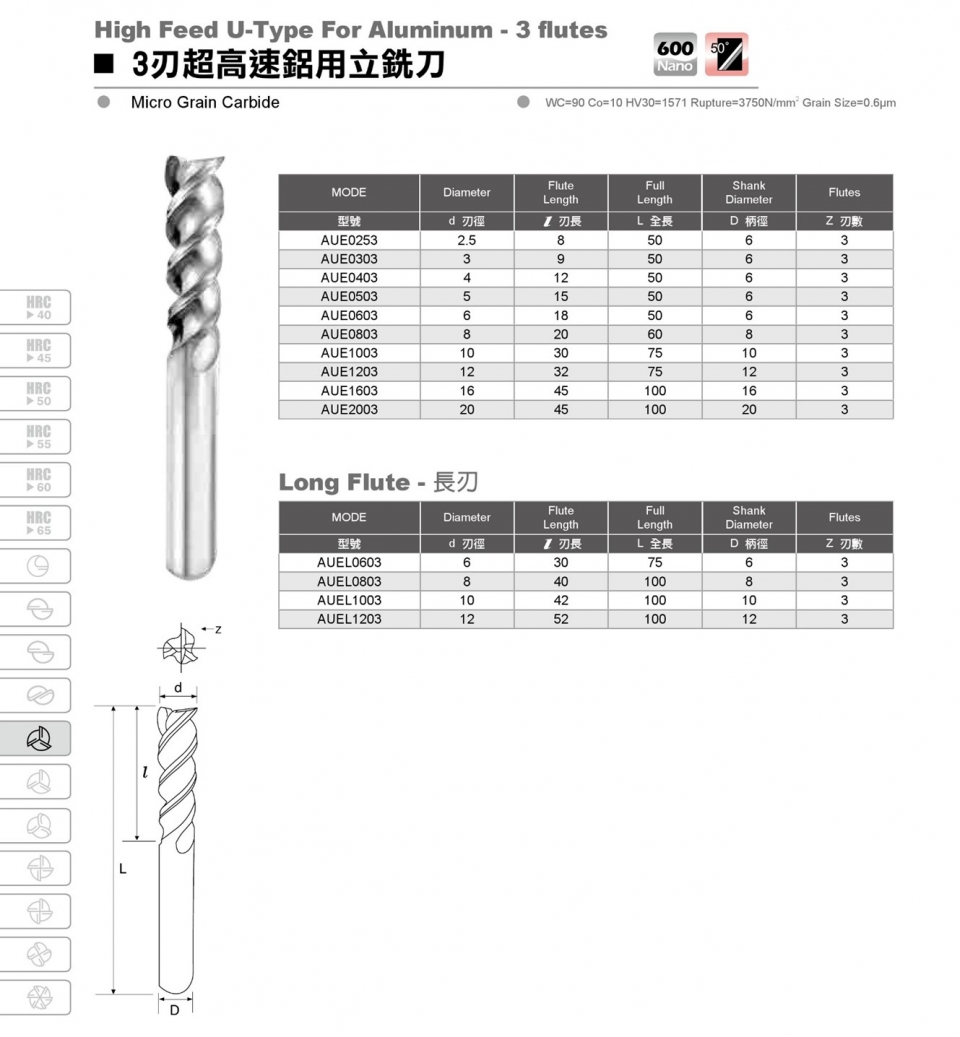

    Dimension



    AUE規格



    Additional Information

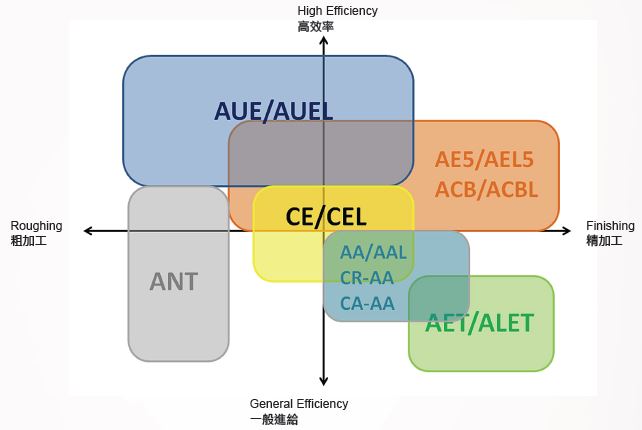

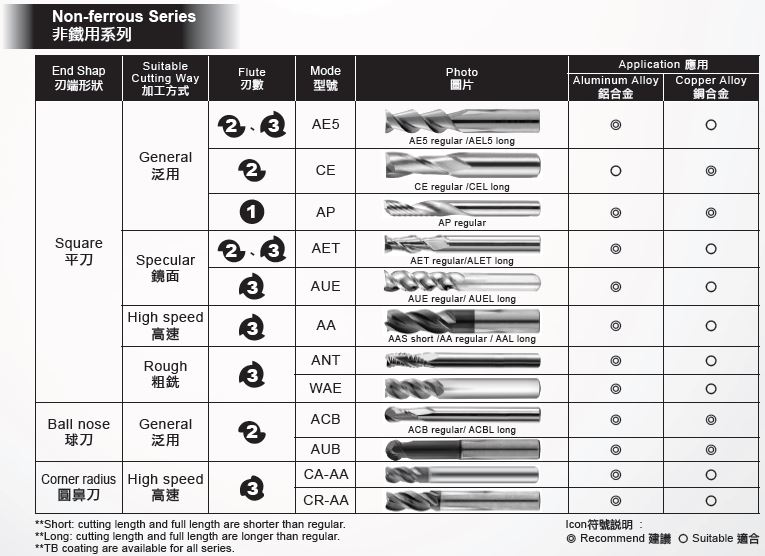

    Overview of Non-ferrous series​
    TB-3
    TB-4

    Different Types are available, please click below link:
    https://reurl.cc/z8nRKa


    Application: Excellent cutting is reached in machining non-ferrous materials, expecially in aluminum with over six multiple in machining efficiency. Long tool life and precision machining in PCB boards, Brass, Titanium, Ceramics, Fiberglass, etc.

    Related Article: The Guide of End Mill for Aluminum Machining.

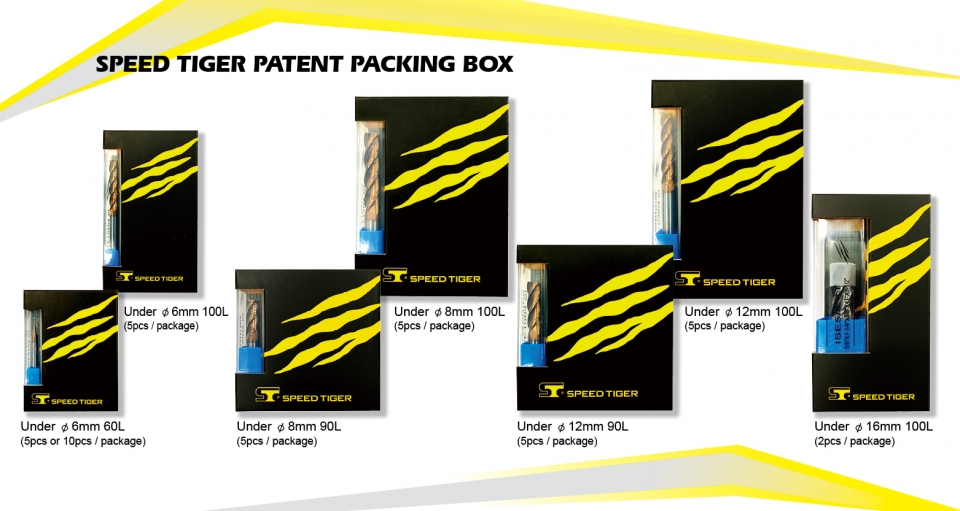

    Package & Shipping



    Delivery :
    Generally it is 5-7 days if the goods are in stock.
    It is 15-20 days if the goods are not in stock, it is according to quantity.


    包裝盒
