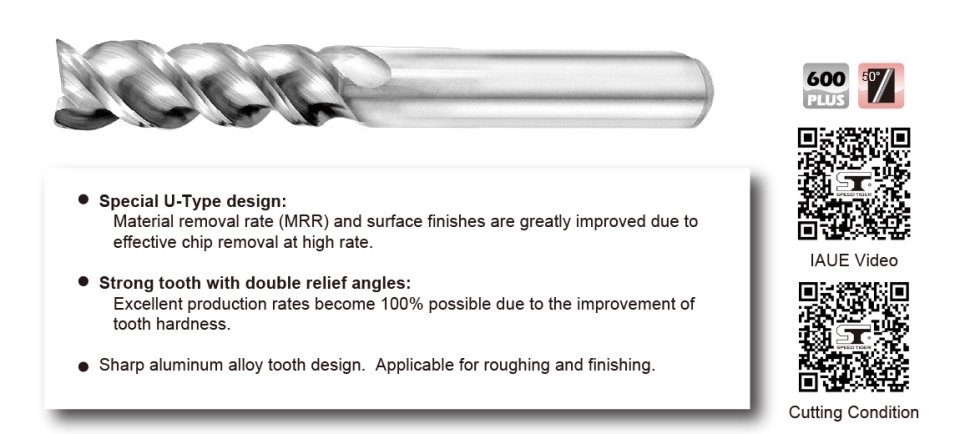

IAUE High Feed U-Type Aluminum End Mill- 3 Flutes

Product Number：IAUE

600Nano End Mills General Application, Diameter：1/8"~5/8", Coating：uncoated

Features Specification Buy Now Contact Us

MODE	Diameter	Flute Length	Full Length	Shank Diameter	Flutes	Specification Download
IAUE1/8"3	1/8	3/8	1-1/2	1/8	3	Download Cutting Condition Download
IAUE3/16"3	3/16	9/16	2	3/16	3
IAUE1/4"3	1/4	3/4	2	1/4	3
IAUE5/16"3	5/16	5/8	2-1/2	5/16	3
IAUE3/8"3	3/8	1-1/4	2-1/2	3/8	3
IAUE1/2"3	1/2	1-1/4	3	1/2	3
AUE5/8"3	5/8	1-5/8	3-1/2	5/8	3
