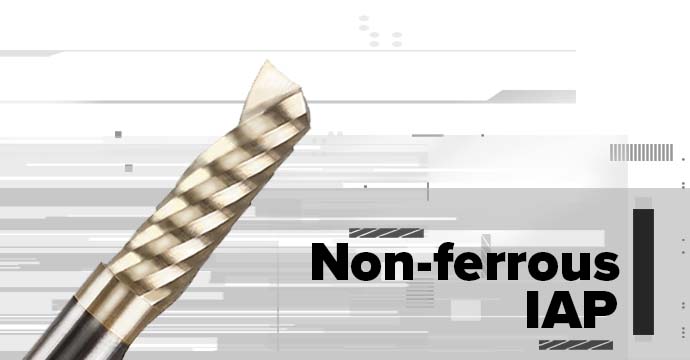

IAP Single Flute Aluminum End Mill (O flute)

Product Number：IAP

█Features: ①HIGH PERFORMANCE FOR HARD MATERIALS - Cutter is made of Micro Grain Carbide that is very tough, resists wear and offers high cutting performance ②HIGH-QUALITY - Flutes ground by a world-class ISO-9001 Factory ③ ZrN Coating: longer tool life. █Application: Copper Alloy / Aluminum / Plastic / Wood

Add Inquiry

Features Coating Buy Now Contact Us

Features

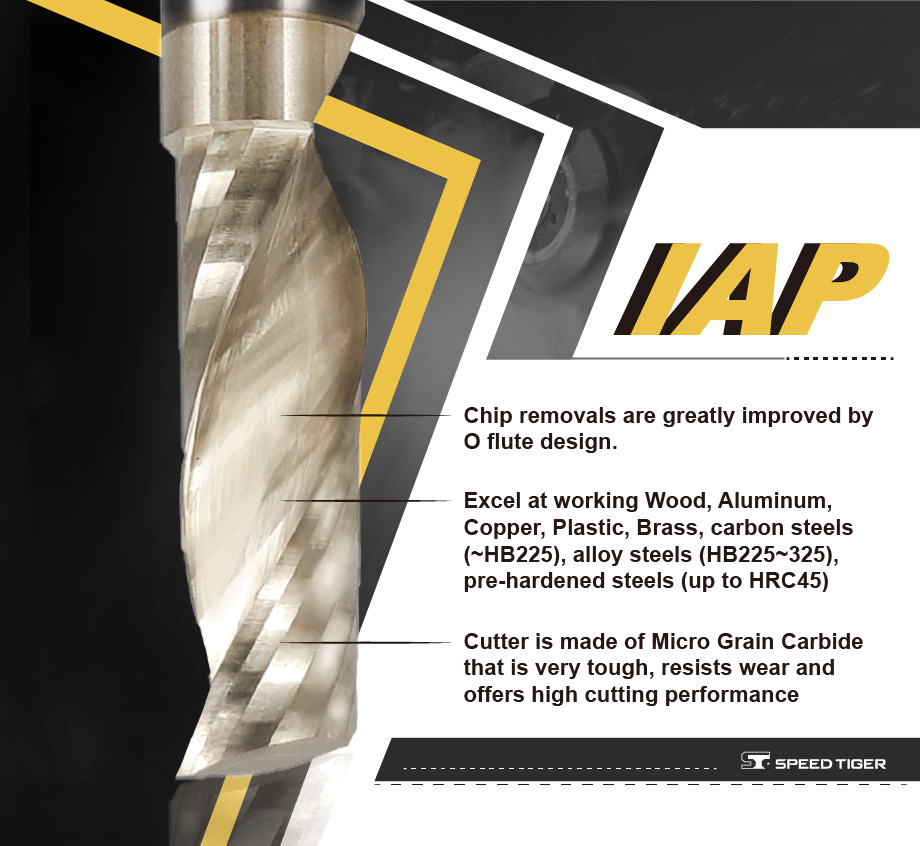

- Chip removals are greatly improved by O flute design.
- Excel at working Wood, Aluminum, Copper, Plastic, Brass, carbon steels (~HB225), alloy steels (HB225~325), pre-hardened steels (up to HRC45)
- Cutter is made of Micro Grain Carbide that is very tough, resists wear and offers high cutting performance
MODE Diameter Flute
Length Full
Length Shank
Diameter Flutes Download

IAP1/4"1 1/4 3/4 2 1/4 1 Cutting Condition
ZrN Coating
- Zirconium nitride (ZrN) lubricates the end mill for stability at high temperature and superior wear resistance at high cutting speeds, offering better surface.
- Improve part quality and less scrap.
- Suitable for high speed machining with both dry and wet cutting way.

MODE	Diameter	Flute Length	Full Length	Shank Diameter	Flutes	Download
IAP1/4"1	1/4	3/4	2	1/4	1	Cutting Condition

MODE	Diameter	Flute Length	Full Length	Shank Diameter	Flutes	Specification Download
IAP1/8"1	1/8''	1/2''	2''	1/4''	1	Download Cutting Condition Download
IAP3/16"1	3/16''	5/8''	2''	1/4''	1
IAP1/4"1	1/4''	3/4''	2''	1/4''	1
IAP5/16"1	5/16''	9/16''	2-1/2''	5/16''	1
IAP3/8"1	3/8''	1''	3''	3/8''	1
IAP1/2"1	1/2''	1-1/8''	3''	1/2''	1
