P-LTTA Taper Long Flute Square End Mill - 2 Flutes

Product Number:P-LTTA
█Features: Micro Grain Carbide that has high toughness, coating AlTiN, and wear-resisting, non-general titanium, aluminum is specialized in milling on M/C high hardness at a high speed and can carry on rough machining get to detailed process directly for heat treatment mould to reduce change times, improve machine flexible rate and shorten producing time.█Application: ~45HRC/Iron, Carbon steel, Cast Iron, Alloy Steel, Tool Steel, Heat treatment Steel, Welding Steel.
  • 600 PLUS Nano End Mills Series General Application

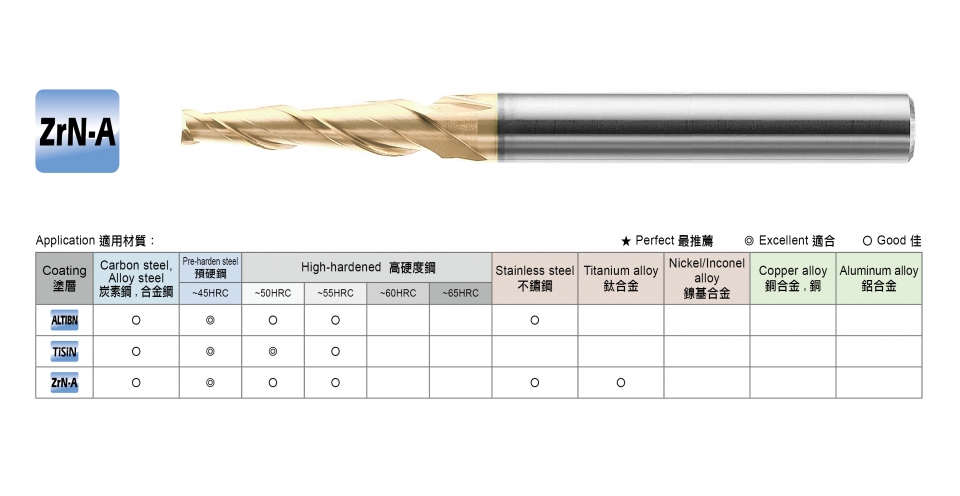

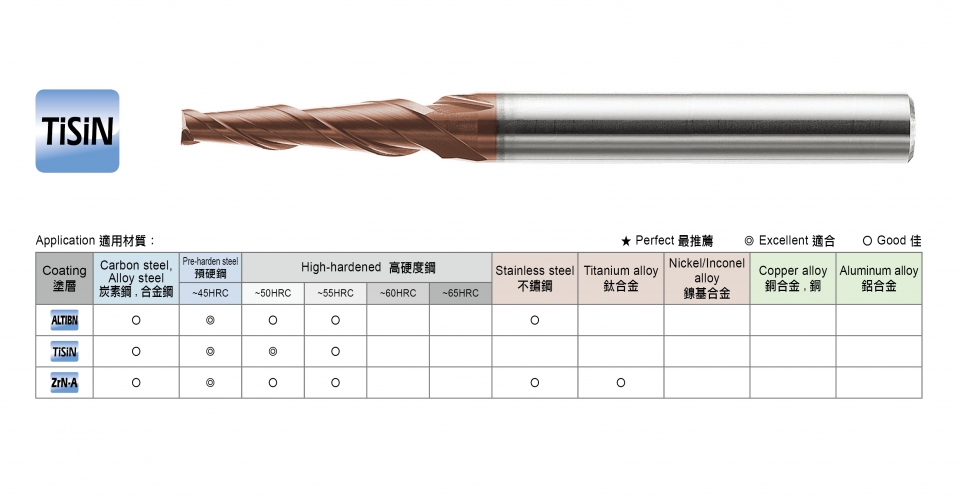

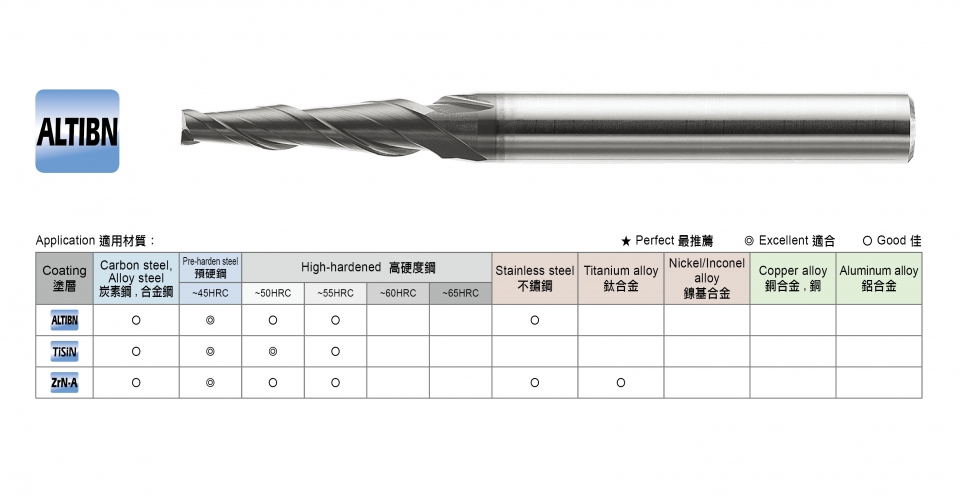

    Application:  ~45HRC/Iron, Carbon steel, Cast Iron, Alloy Steel, Tool Steel, Heat treatment Steel, Welding Steel.

    Micro Grain Carbide that has high toughness, coating AlTiN, and wear-resisting, non-general titanium, aluminum is specialized in milling on M/C high hardness at a high speed and can carry on rough machining get to detailed process directly for heat treatment mould to reduce change times, improve machine flexible rate and shorten producing time.

    Features




    feature_工作區域 1 複本
    1. Maximized rigidity, and chip removals are greatly improved due to special geometric design and reinforced design in cutting edges against chipping at corners.
    2. Excellent performance of anti-vibration and noise.
    3. High hardness-used coating, effectively improves tool life and finishes.



    600 plus_600細節

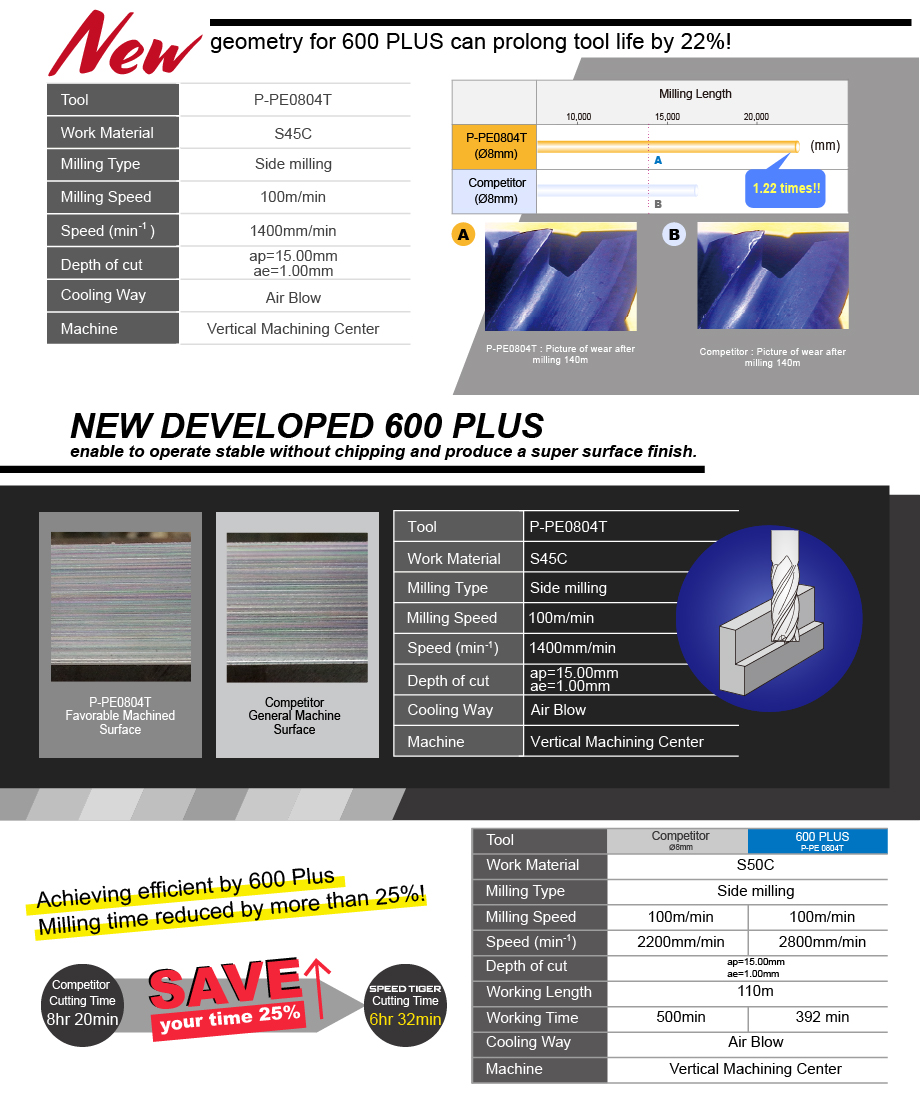

    Comparision



    Series Grain Size Hardness
     (HRC)
    Coating Application
    200Nano 0.2μm ~65 TiSiN Super Hard Hardness
    400Nano 0.4μm ~60 nBS High Hardness
    600Nano 0.6μm ~50 AlTiN General
