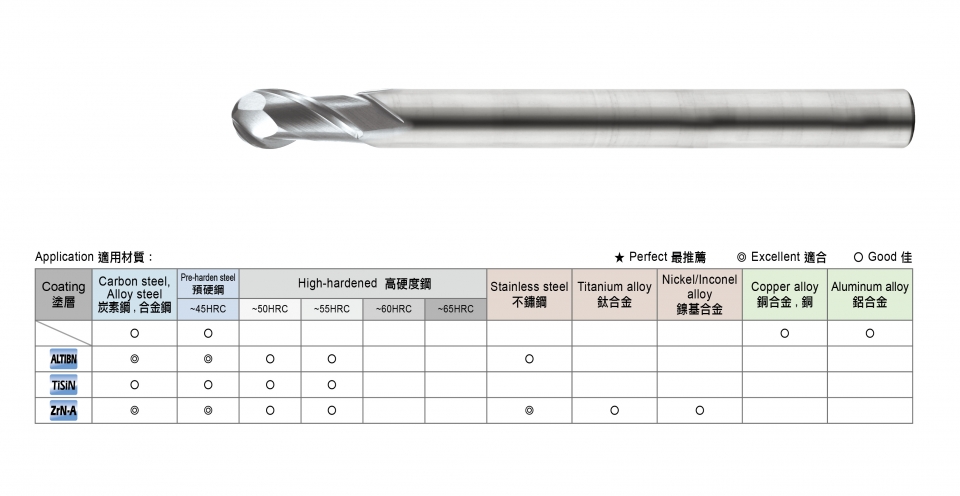

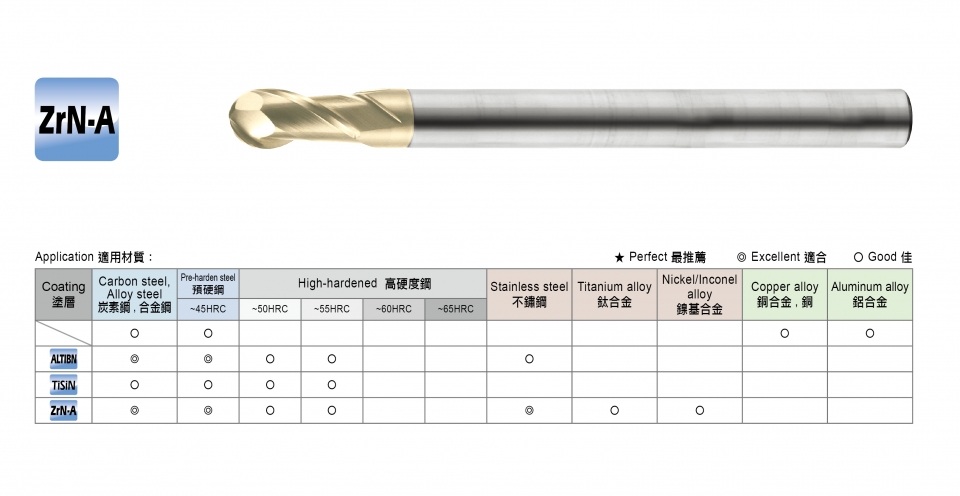

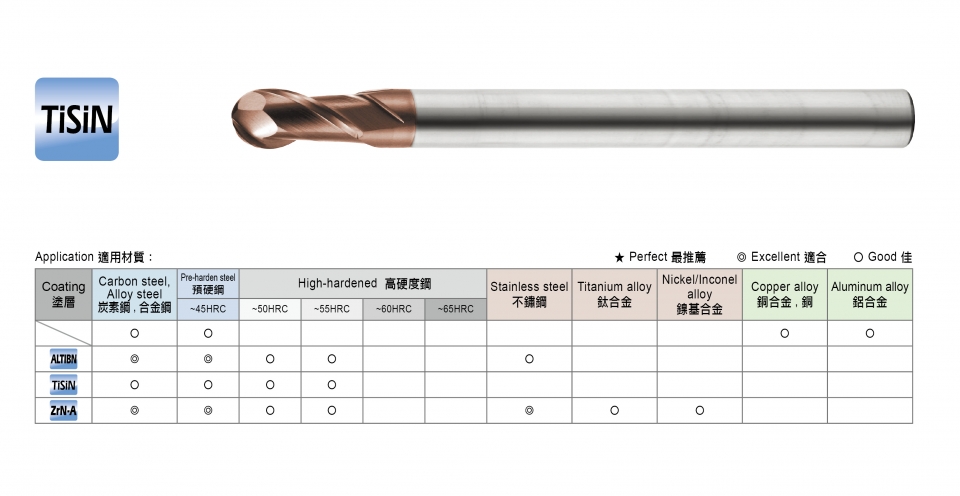

Long Shank Ball Nose End Mill - 2 Flutes - P-SLB/P-MLB/P-LLB/P-XLB

Product Number:P-SLB/P-MLB/P-LLB/P-XLB
600 PLUS Nano End Mills Series, Diameter:1mm~16mm,Coating:Uncoated / ALTIBN / TiSiN / ZrN-A(Zirconia + AlTiBN)
  • Spec. Download
    Cutting Condition Download

    600 PLUS Nano End Mills Series General Application
    Application:  ~45HRC/Iron, Carbon steel, Cast Iron, Alloy Steel, Tool Steel, Heat treatment Steel, Welding Steel.

    Main Feature:
    Micro Grain Carbide that has high toughness, coating AlTiN and wear-resisting, non-general titanium aluminum is specialized in milling on M/C high hardness at a high
    speed and can carry on rough machining get to detailed process directly for heat treatment mould to reduce change times, improve machine flexible rate and shorten producing time.

    feature_工作區域 1 複本
    1. Maximized rigidity, and chip removals are greatly improved due to special geometric design and reinforced design in cutting edges against chipping at corners.
    2. Excellent performance of anti-vibration and noise.
    3. High hardness-used coating, effectively improves tool life and finishes.

    600 plus_600細節

    Series Grain Size Hardness
    Coating Application
    200Nano 0.2μm ~65 TiSiN Super Hard Hardness
    400Nano 0.4μm ~60 nBS High Hardness
    600Nano 0.6μm ~50 AlTiN General
