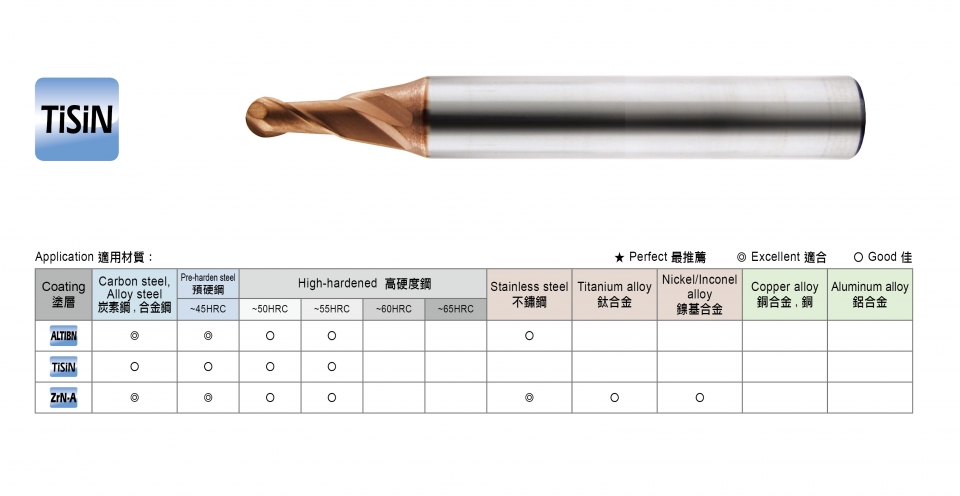

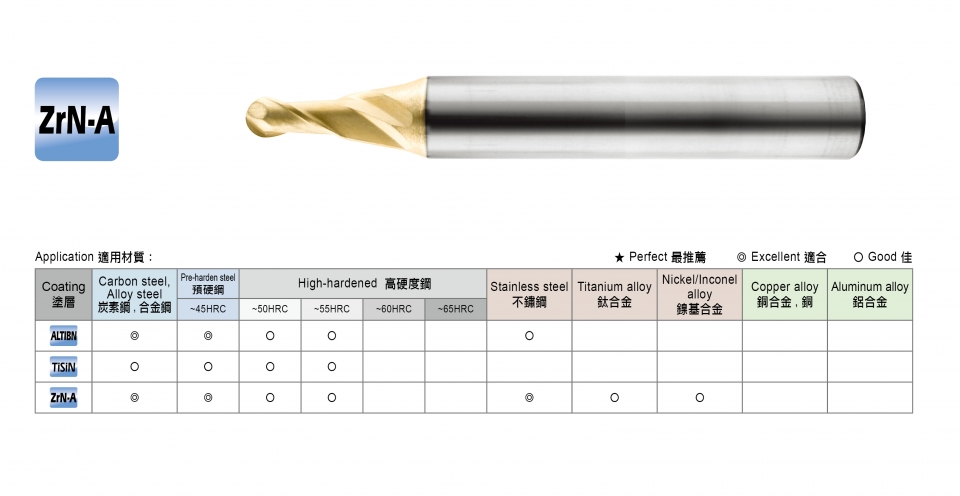

P-TBTA Taper Ball Nose End Mill - 2 FlutesProduct Number：P-TBTA
600 PLUS Nano End Mills Series, Diameter：1mm~3mm，Coating： ALTIBN / TiSiN / ZrN-A(Zirconia + AlTiBN)
600 PLUS Nano End Mills Series General Application
Application: ~45HRC/Iron, Carbon steel, Cast Iron, Alloy Steel, Tool Steel, Heat treatment Steel, Welding Steel.
Micro Grain Carbide that has high toughness, coating AlTiN, and wear-resisting, non-general titanium, aluminum is specialized in milling on M/C high hardness at a high speed and can carry on rough machining get to detailed process directly for heat treatment mould to reduce change times, improve machine flexible rate and shorten producing time.
- Maximized rigidity, and chip removals are greatly improved due to special geometric design and reinforced design in cutting edges against chipping at corners.
- Excellent performance of anti-vibration and noise.
- High hardness-used coating, effectively improves tool life and finishes.
Series Grain Size Hardness
Coating Application 200Nano 0.2μm ~65 TiSiN Super Hard Hardness 400Nano 0.4μm ~60 nBS High Hardness 600Nano 0.6μm ~50 AlTiN General
