Power Tips: Replaceable End Mills Head

Product Number:SBS,RTAS,SES,PES, AES5,FHPCS, KTGS, KCRS, TAMS, PDSTS,RCS, TMAS, TMTS, TMRS, TRSS
Diameter:6mm~32mm
  •  Spec. Download
     Cutting Condition Download

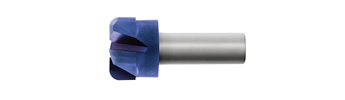

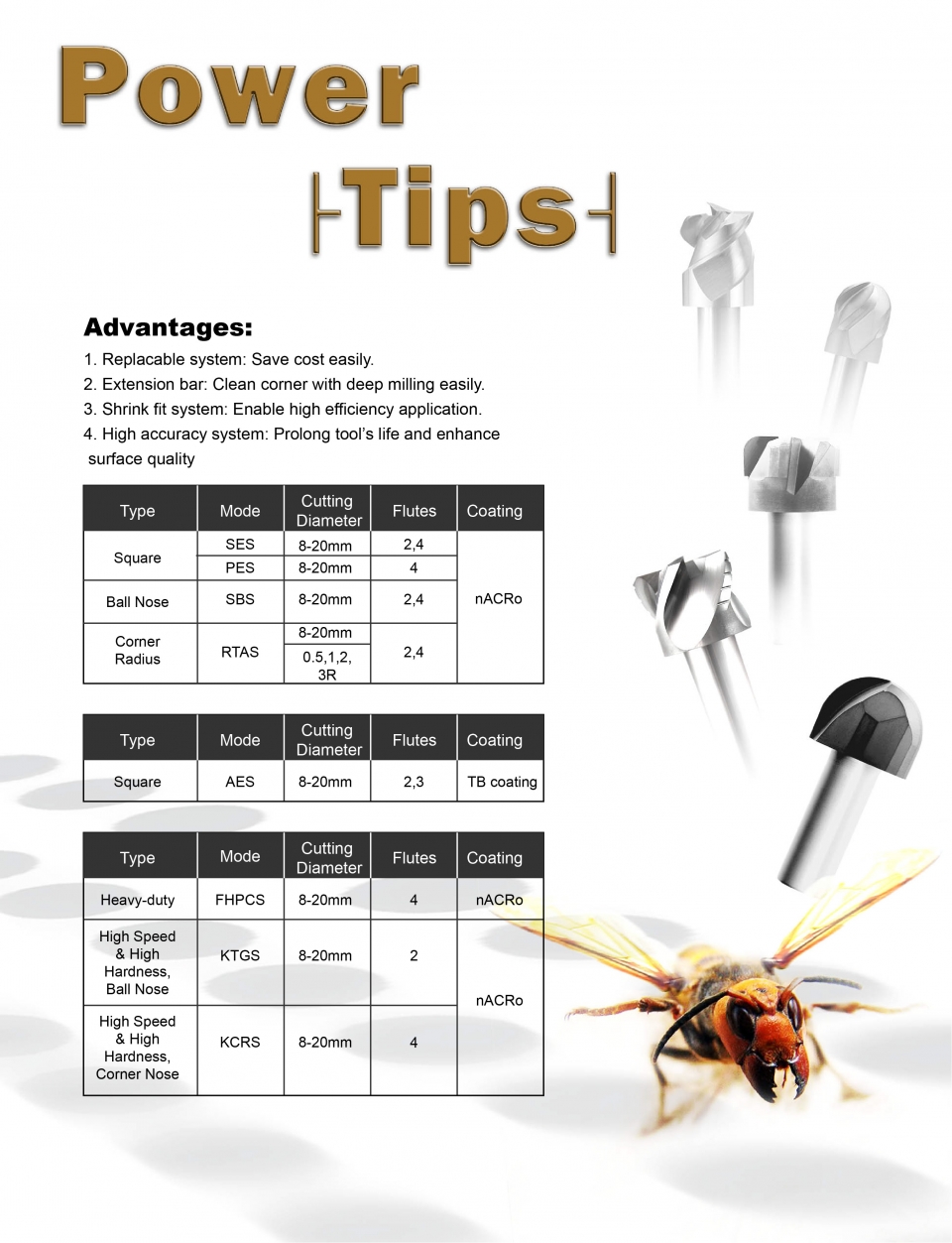

    Power Tips Series- Replaceable End Mills Head

    Application: ~55HRC / Iron, Carbon steel, Cast Iron, Alloy Steel, Tool Steel, Heat treatment Steel, Welding Steel.

    燒結機規格等_PT

  • Type
    Mode Flutes Diameter Shank Diameter Photo Dimension Cutting Condition

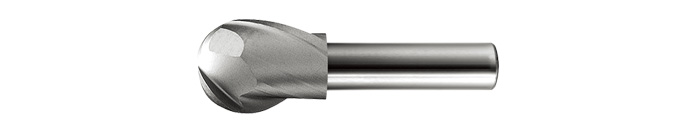

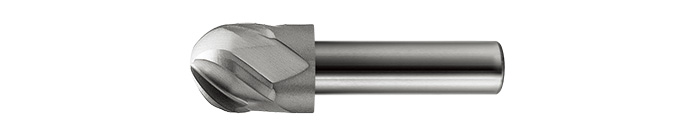

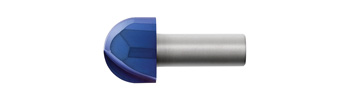

    BALL NOSE TIP SBS 2 / 4 8mm~21mm 6mm~12mm 2-SBS-14-SBS-1 Download
    CORNER RADIUS TIP RTAS 2 / 4 8mm~21mm 6mm~12mm 2-RTAS-1
    4-RTAS-1

    Download Download

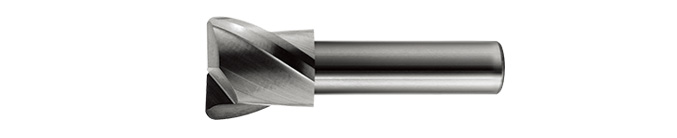

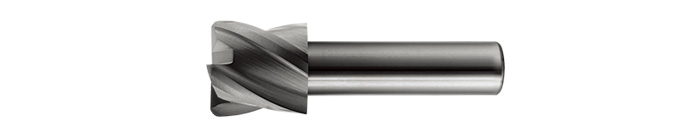

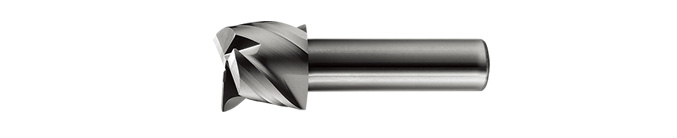

    SQUARE TIP SES 2 / 4 8mm~20mm 6mm~12mm 2-SES-1
    4-SES-1

    Download Download

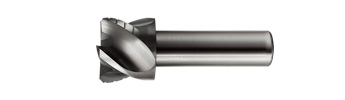

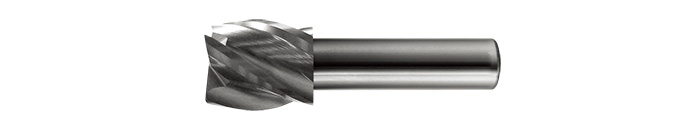

    SQUARE TIP PES 3 8mm~21mm 6mm~12mm 3-PES-1

    Download Download

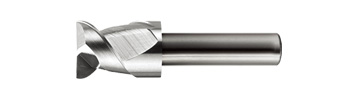

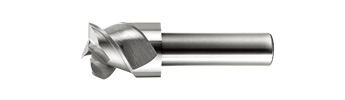

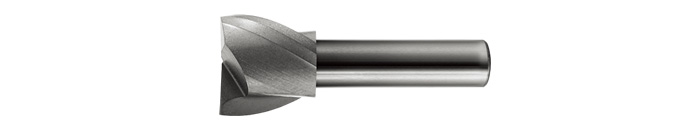

    FOR ALUMINUM AES5 2 / 3 8mm~20mm 6mm~12mm 2-AES53-AES5 Download Download
    Heavy-duty FHPCS 4 8mm~20mm 6mm~12mm 4-FHPCS

    Download Download
    Super High Speed/
    Hardness Ball Nose
    KTGS 2 8mm~20mm 6mm~12mm 2-KTGS

    Download Download
    Super High Speed/
    Hardness Corner Radius
    KCRS 4 8mm~16mm 6mm~10mm 4-KCRS


    Download Download
    Dovetail Cutter TAMS 6 / 8 16mm~32mm 10mm~12mm   Download
    Position Chamfer Cutter PDSTS 2 4mm~20mm 4mm~10mm   Download
    Corner Rounding Cutter RCS 4 0.5R~6R 4mm~12mm   Download
    Double Chamfer Cutter TMAS 4 / 6 / 8 8mm~20mm 4mm~10mm   Download
    Keyseat Cutter TMTS 6 / 8 / 10 8mm~30mm 4mm~16mm   Download
    Keyseat Cutter -
    Full Radius
    TMRS 6 / 8 / 10 8mm~30mm 4mm~16mm   Download
    220° Ball Nose Tip TRSS 6 12mm~25mm 6mm~12mm   Download
