Anti-Vibration Shrink Fit Extension Set

Product Number:S-,SD-
Shank Diameter:10mm~32mm Length of Combination: 120L~300L
  • 100% Solve the Problem of Processing Interference!!



    燒結機規格等_雙頭龍
    燒結機規格等_雙頭規格-07
    燒結機規格等_雙頭規格-06





  •

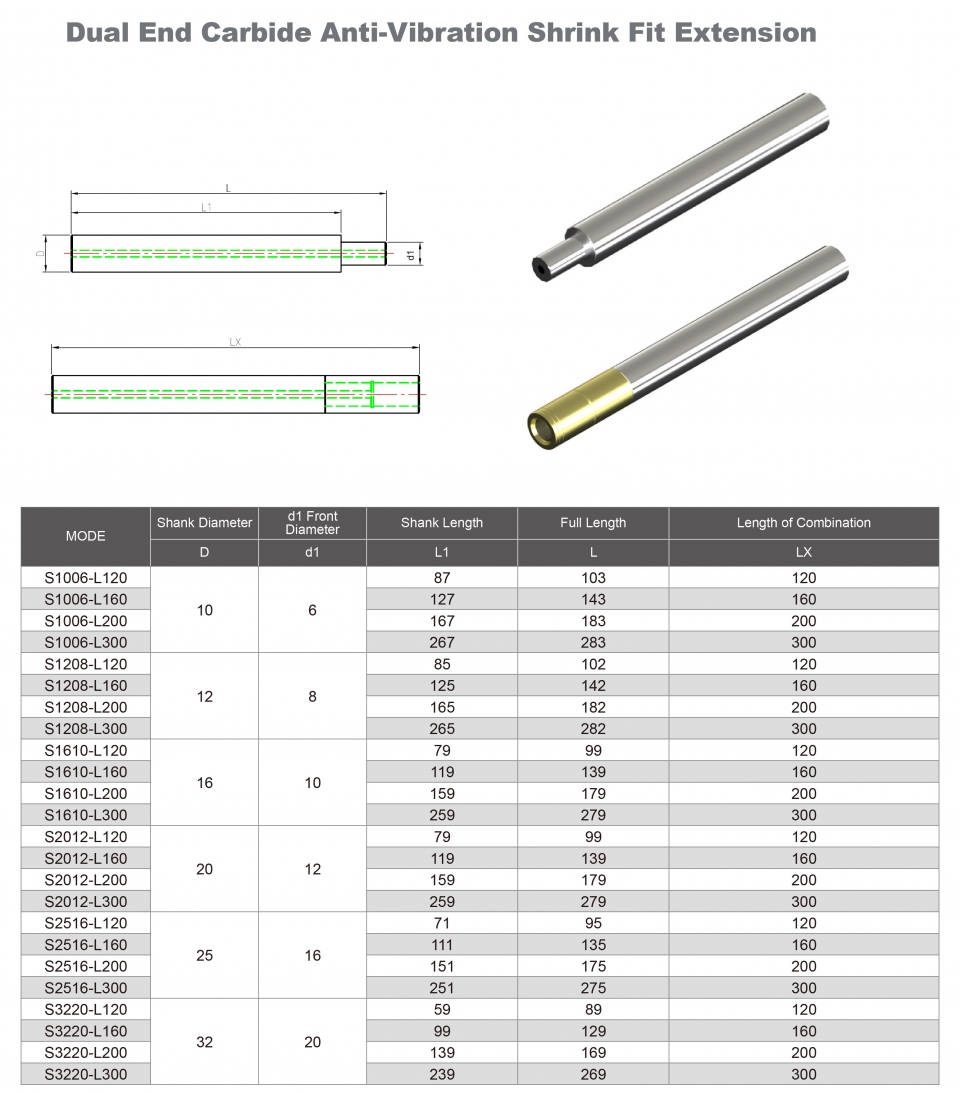

    Mode Shank Diameter
    (D)
    Front Diameter
    (d1)
    Shank Length
    (L1)
    Full Length
    (L)
    Length of Combination
    (LX)
    S1006-L120 10 6 87 103 120
    S1006-L160 10 6 127 143 160
    S1006-L200 10 6 167 183 200
    S1006-L300 10 6 267 283 300
    S1208-L120 12 8 85 102 120
    S1208-L160 12 8 125 142 160
    S1208-L200 12 8 165 182 200
    S1208-L300 12 8 265 282 300
    S1610-L120 16 10 79 99 120
    S1610-L160 16 10 119 139 160
    S1610-L200 16 10 159 179 200
    S1610-L300 16 10 259 279 300
    S2012-L120 20 12 79 99 120
    S2012-L160 20 12 119 139 160
    S2012-L200 20 12 159 179 200
    S2012-L300 20 12 259 279 300
    S2516-L120 25 16 71 95 120
    S2516-L160 25 16 111 135 160
    S2516-L200 25 16 151 175 200
    S2516-L300 25 16 251 275 300
    S3220-L120 32 20 59 89 120
    S3220-L160 32 20 99 129 160
    S3220-L200 32 20 139 169 200
    S3220-L300 32 20 239 269 300
  •

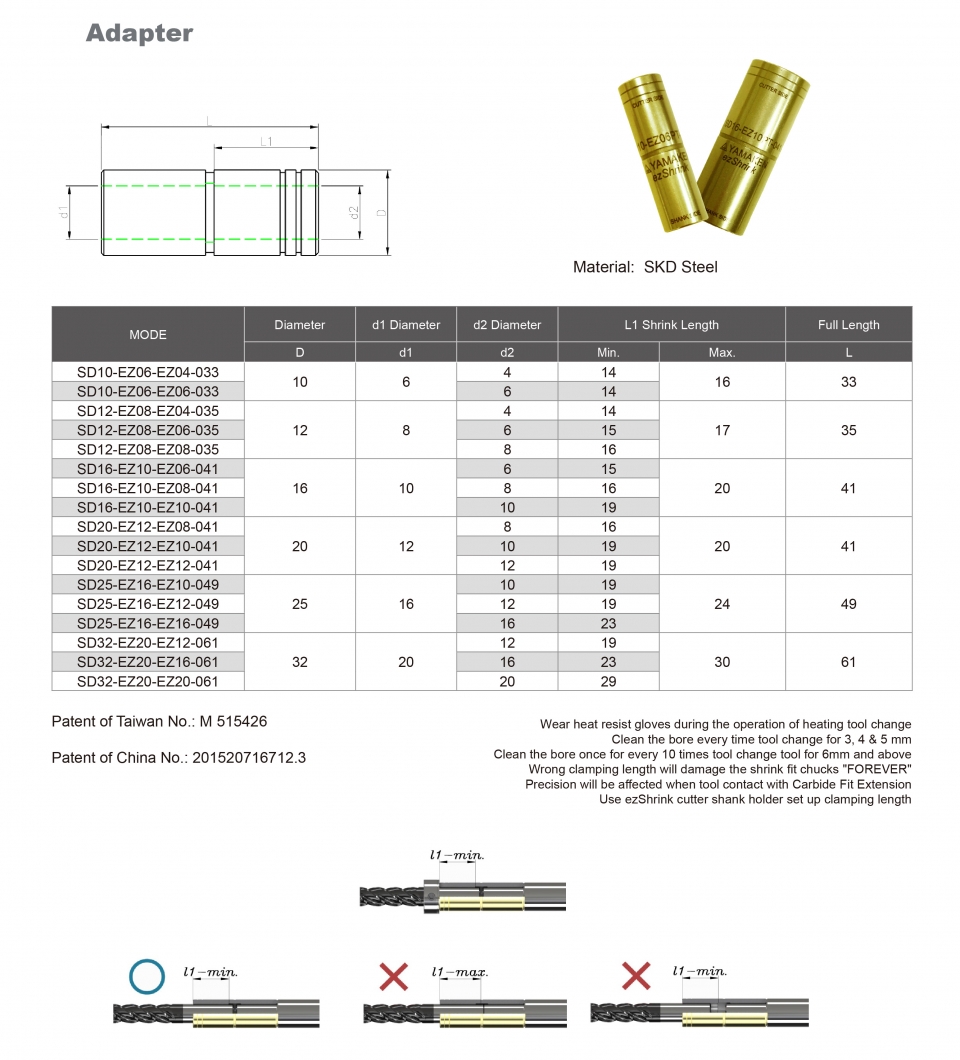

    Mode Diameter
    (D)
    Diameter for Holder
    (d1)
    Diameter for End Mill
    (d2)
    Min. Shrink Length
    (L1)
    ​Max. Shrink Length
    (L1)
    Full Length
    (L)
    SD10-EZ06-EZ04-033 10 6 4 14 16 33
    SD10-EZ06-EZ06-033 10 6 6 14 16 33
    SD12-EZ08-EZ04-035 12 8 4 14 17 35
    SD12-EZ08-EZ06-035 12 8 6 15 17 35
    SD12-EZ08-EZ08-035 12 8 8 16 17 35
    SD16-EZ10-EZ06-041 16 10 6 15 20 41
    SD16-EZ10-EZ08-041 16 10 8 16 20 41
    SD16-EZ10-EZ10-041 16 10 10 19 20 41
    SD20-EZ12-EZ08-041 20 12 8 16 20 41
    SD20-EZ12-EZ10-041 20 12 10 19 20 41
    SD20-EZ12-EZ12-041 20 12 12 19 20 41
    SD25-EZ16-EZ10-049 25 16 10 19 24 49
    SD25-EZ16-EZ12-049 25 16 12 19 24 49
    SD25-EZ16-EZ16-049 25 16 16 23 24 49
    SD32-EZ20-EZ12-061 32 20 12 19 30 61
    SD32-EZ20-EZ16-061 32 20 16 23 30 61
    SD32-EZ20-EZ20-061 32 20 20 29 30 61
