HPSS Series - High Speed Plugging & Slotting & Side Milling

Product Number:HPSS
Diameter:2mm~20mm

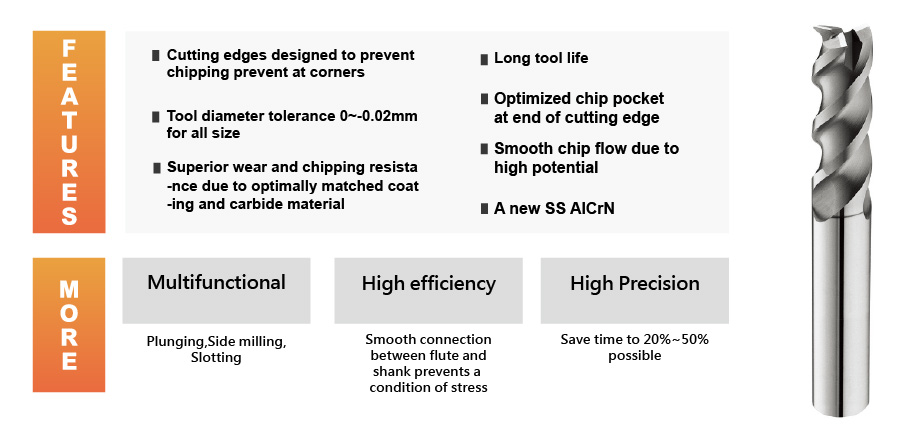

  • Features



    High Speed  Plugging + Slotting + Sidemilling  End Mills Series
    Application:  ~HRC60/ Iron, Carbon steel, Cast Iron, Alloy Steel, Tool Steel, Heat treatment Steel, Welding Steel

    HPSS_工作區域 1
  • Spec. Download
    Cutting Condition Download


    MODE
    Standard Type
    MODE

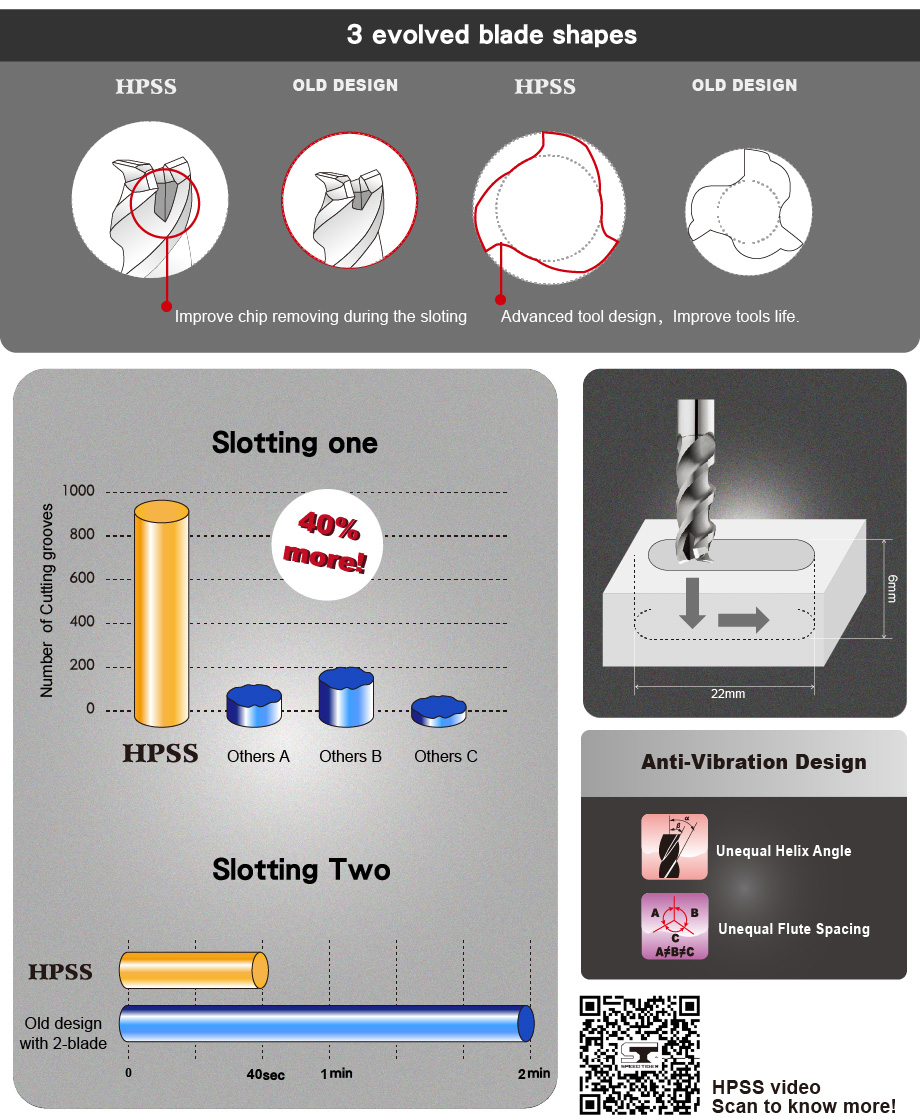

    Anti-Vibration Design
    Diameter Flute
    Length
    Full
    Length
    Shank
    Diameter
    Flutes
    HPSS0200 HPSS0200.A 2 4 50 6 3
    HPSS0250 HPSS0250.A 2.5 5 50 6 3
    HPSS0300 HPSS0300.A 3 6 50 6 3
    HPSS0350 HPSS0350.A 3.5 8 50 6 3
    HPSS0400 HPSS0400.A 4 8 50 6 3
    HPSS0450 HPSS0450.A 4.5 10 50 6 3
    HPSS0500 HPSS0500.A 5 10 50 6 3
    HPSS0550 HPSS0550.A 5.5 13 50 6 3
    HPSS0600 HPSS0600.A 6 13 60 6 3
    HPSS0650 HPSS0650.A 6.5 16 60 8 3
    HPSS0700 HPSS0700.A 7 16 60 8 3
    HPSS0750 HPSS0750.A 7.5 16 60 8 3
    HPSS0800 HPSS0800.A 8 19 60 8 3
    HPSS0850 HPSS0850.A 8.5 19 75 10 3
    HPSS0900 HPSS0900.A 9 19 75 10 3
    HPSS0950 HPSS0950.A 9.5 19 75 10 3
    HPSS1000 HPSS1000.A 10 22 75 10 3
    HPSS1100 HPSS1100.A 11 22 75 12 3
    HPSS1200 HPSS1200.A 12 26 100 12 3
    HPSS1300 HPSS1300.A 13 26 100 14 3
    HPSS1400 HPSS1400.A 14 26 100 14 3
    HPSS1500 HPSS1500.A 15 26 100 16 3
    HPSS1600 HPSS1600.A 16 30 100 16 3
    HPSS2000 HPSS2000.A 20 32 100 20 3
