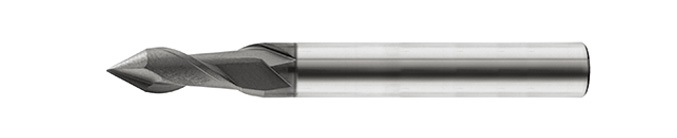

CDM Multi-function End Mill - 2 Flutes

Product Number：CDM

█Features: Speed Tiger CDM excels at centering, counter-sinking, chamfering, grooving, side milling. █Application: ~45HRC/Iron, Carbon steel, Cast Iron, Alloy Steel, Tool Steel, Heat treatment Steel, Welding Steel.

Add Inquiry

Features Specification Contact Us

Features

600 Nano Series General Application

Application: ~45HRC/Iron, Carbon steel, Cast Iron, Alloy Steel, Tool Steel, Heat treatment Steel, Welding Steel.

Micro Grain Carbide that has high toughness, coating AlTiN and wear-resisting, non-general titanium, aluminum specializes in milling on M/C high hardness at a high
speed and can carry on rough machining get to detailed process directly for heat treatment mould to reduce change times, improve machine flexible rate and shorten producing time.

Processing method :
✔ Centering ✔ Counter-sinking ✔ Chamfering ✔ Grooving ✔ Side milling

Comparison

Series	Grain Size	Hardness (HRC)	Coating	Application
200 Nano	0.2μm	~65	TiSiN	Super Hard Hardness
400 Nano	0.4μm	~60	nBS	High Hardness
600 Nano	0.6μm	~45	AlTiN	General

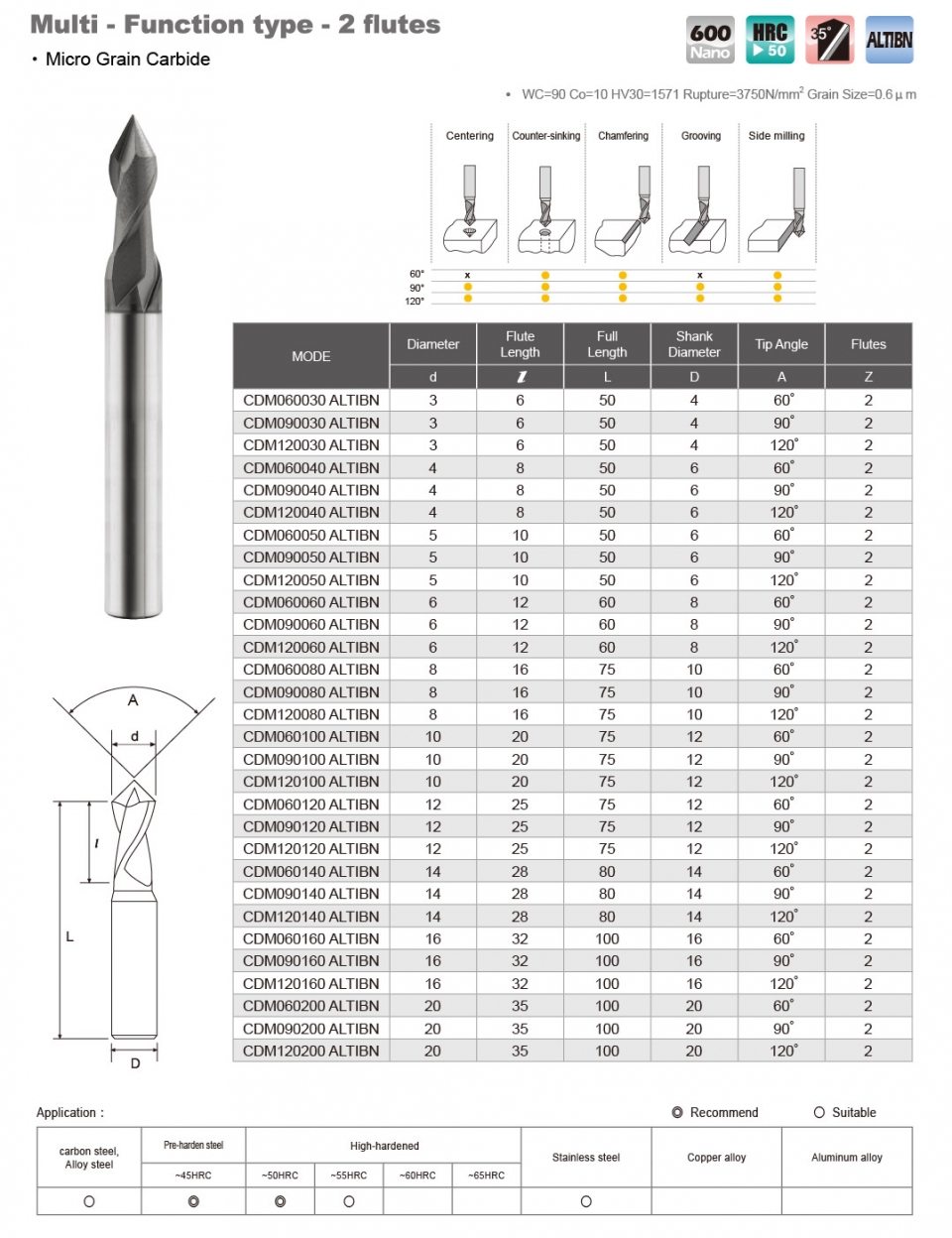

Spec. Download

MODE	Diameter	Flute Length	Full Length	Shank Diameter	Tip Angle	Flutes
CDM060030 ALTIBN	3	6	50	4	60°	2
CDM090030 ALTIBN	3	6	50	4	90°	2
CDM120030 ALTIBN	3	6	50	4	120°	2
CDM060040 ALTIBN	4	8	50	6	60°	2
CDM090040 ALTIBN	4	8	50	6	90°	2
CDM120040 ALTIBN	4	8	50	6	120°	2
CDM060050 ALTIBN	5	10	50	6	60°	2
CDM090050 ALTIBN	5	10	50	6	90°	2
CDM120050 ALTIBN	5	10	50	6	120°	2
CDM060060 ALTIBN	6	12	60	8	60°	2
CDM090060 ALTIBN	6	12	60	8	90°	2
CDM120060 ALTIBN	6	12	60	8	120°	2
CDM060080 ALTIBN	8	16	75	10	60°	2
CDM090080 ALTIBN	8	16	75	10	90°	2
CDM120080 ALTIBN	8	16	75	10	120°	2
CDM060100 ALTIBN	10	20	75	12	60°	2
CDM090100 ALTIBN	10	20	75	12	90°	2
CDM120100 ALTIBN	10	20	75	12	120°	2
CDM060120 ALTIBN	12	25	75	12	60°	2
CDM090120 ALTIBN	12	25	75	12	90°	2
CDM120120 ALTIBN	12	25	75	12	120°	2
CDM060140 ALTIBN	14	28	80	14	60°	2
CDM090140 ALTIBN	14	28	80	14	90°	2
CDM120140 ALTIBN	14	28	80	14	120°	2
CDM060160 ALTIBN	16	32	100	16	60°	2
CDM090160 ALTIBN	16	32	100	16	90°	2
CDM120160 ALTIBN	16	32	100	16	120°	2
CDM060200 ALTIBN	20	35	100	20	60°	2
CDM090200 ALTIBN	20	35	100	20	90°	2
CDM120200 ALTIBN	20	35	100	20	120°	2
