Spot Drill / Chamfer Mill + Inserts SET

Product Number:HSE1245 / HSE1230
█Features: ①For general chamfering and NC spot drilling.②The multi-edge design makes it a cost-efficient solution- 4 times use.③New spotting way, stable center spotting, improve tool life effectively.④Newly developed SH + ZrN coating increases the lubrication, lowers the friction, and improves tool performance effectively. █Application: GENERAL APPLICATION CUTTER - Speed Tiger Spot Drill / Chamfer Mill excels at working carbon steels (~HB225), alloy steels (HB225~325), cast iron, etc.

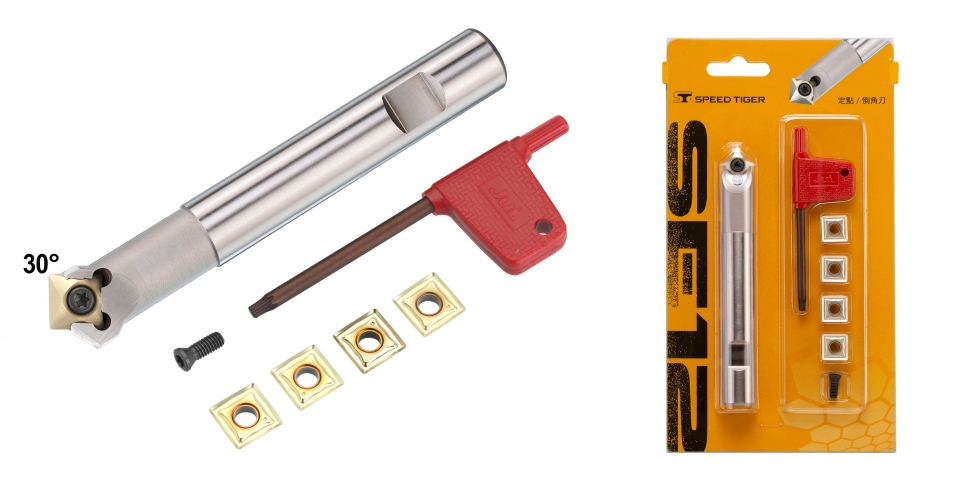

  • Spot Drill / Chamfer Mill + Inserts SET倒角刀新塗層-包裝

    擷取4


    Characteristic

    1. For general chamfering and NC spot drilling.
    2. The multi-edge design makes it a cost-efficient solution- 4 times use.
    3. New spotting way, stable center spotting, improve tool life effectively.
    4. Newly developed SH + ZrN coating increases the lubrication, lowers
    the friction, and improves tool performance effectively.
    5. Patent of Taiwan No.: M560955

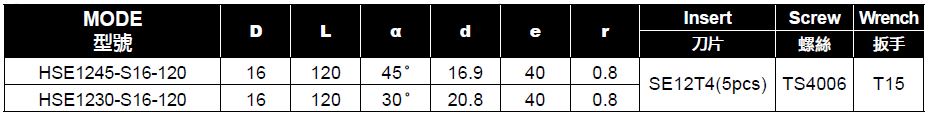

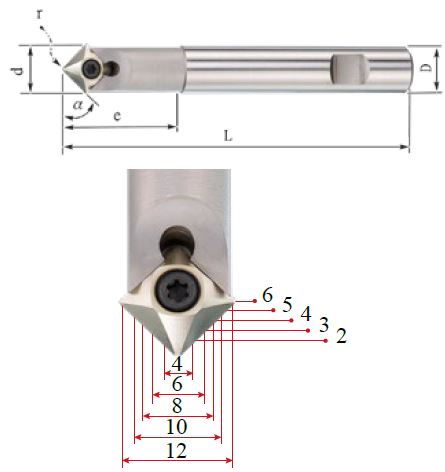

    Dimension


    Mode D L a d e r Insert Screw Wrench
    型號 刀片 螺絲 扳手
    HSE 1245-S16-120 16 120 45° 16.9 40 0.8 SE12T4 (5PCS) TS4006 T15
    HSE 1230-S16-120 16 120 30° 20.8 40 0.8

    Inserts
    - Cut angle: 45°
    - Spot diameter: up to 12 mm (10 mm for carbon steel)
    - Coating: SH (AlTiSiN) + ZrN(Zirconia) low friction

    Package contents
    Holder with insert, 4pcs refill inserts, wrench​



    Recommend Cutting Condition

    擷取

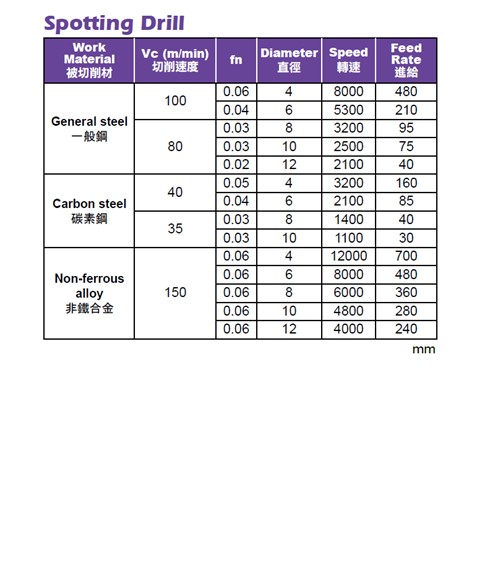

    Spotting Drill
    Work Material
    被切削材
    Vc (m/min)
    切削速度
    fn Diameter
    直徑
    Speed
    轉速
    Feed Rate
    進給
    General Steel
    一般鋼
    100 0.06 4 8000 480
    0.04 6 5300 210
    80 0.03 8 3200 95
    0.03 10 2500 75
    0.02 12 2100 40
    Carbon Steel
    碳素鋼
    40 0.05 4 3200 160
    0.04 6 2100 85
    35 0.03 8 1400 40
    0.03 10 1100 30
    Non-ferrous Alloy
    非鐵合金
    150 0.06 4 12000 700
    0.06 6 8000 480
    0.06 8 6000 360
    0.06 10 4800 280
    0.06 12 4000 240

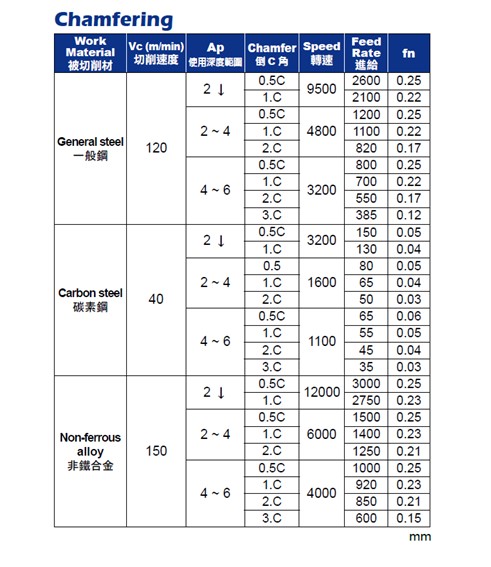

    Chamfering
    Work Material
    被切削材
    Vc (m/min)
    切削速度
    AP
    使用深度範圍
    Chamfer
    倒C角
    Speed
    轉速
    Feed Rate
    進給
    fn
    General Steel
    一般鋼
    120 2↓ 0.5C 9500 2600 0.25
    1.C 2100 0.22
    2~4 0.5C 4800 1200 0.25
    1.C 1100 0.22
    2.C 820 0.17
    4~6 0.5C 3200 800 0.25
    1.C 700 0.22
    2.C 550 0.17
    3.C 385 0.12
    Carbon Steel
    碳素鋼
    40 2↓ 0.5C 3200 150 0.05
    1C 130 0.04
    2~4 0.5C 1600 80 0.05
    1.C 65 0.04
    2.C 50 0.03
    4~6 0.5C 1100 65 0.06
    1.C 55 0.05
    2.C 45 0.04
    3.C 35 0.03
    Non-ferrous Alloy
    非鐵合金
    150 2↓ 0.5C 12000 3000 0.25
    1.C 2750 0.23
    2~4 0.5C 6000 1500 0.25
    1.C 1400 0.23
    2.C 1250 0.21
    4~6 0.5C 4000 1000 0.25
    1.C 920 0.23
    2.C 850 0.21
    3.C 600 0.15

    Cutting Video

  • Dimension

    Mode
    型號
    D L a d e r Insert Screw Wrench
    刀片 螺絲 扳手
    HSE 1245-S16-120 16 120 45° 16.9 40 0.8 SE12T4 (5PCS) TS4006 T15
    HSE 1230-S16-120 16 120 30° 20.8 40 0.8
