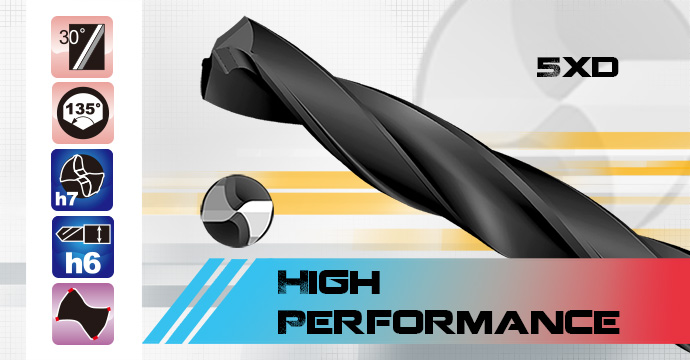

PK High Performance Carbide Drill 5xD

Product Number:5PK High Performance Carbide Drill - Without Coolant Hole, Size Range from Ø3 to Ø 14, Point Angle: 135º
█Features: ①Double margin: Achieves smooth surface of drilling and Allows high precision straight cutting. ②Special geometry design makes the room of chip removals greatly improved and with high rigidity. ③Reinforced design in cutting edge improves tool life effectively. ④ Improved the margin top position, to advance the drilling precision. █Application: Carbon steel, Alloy steel, Pre-harden steel ~45HR, Cast iron
  • ►5PK - without coolant hole
    ♦Size Range: Ø3-14mm
    ♦Point Angle: 135º

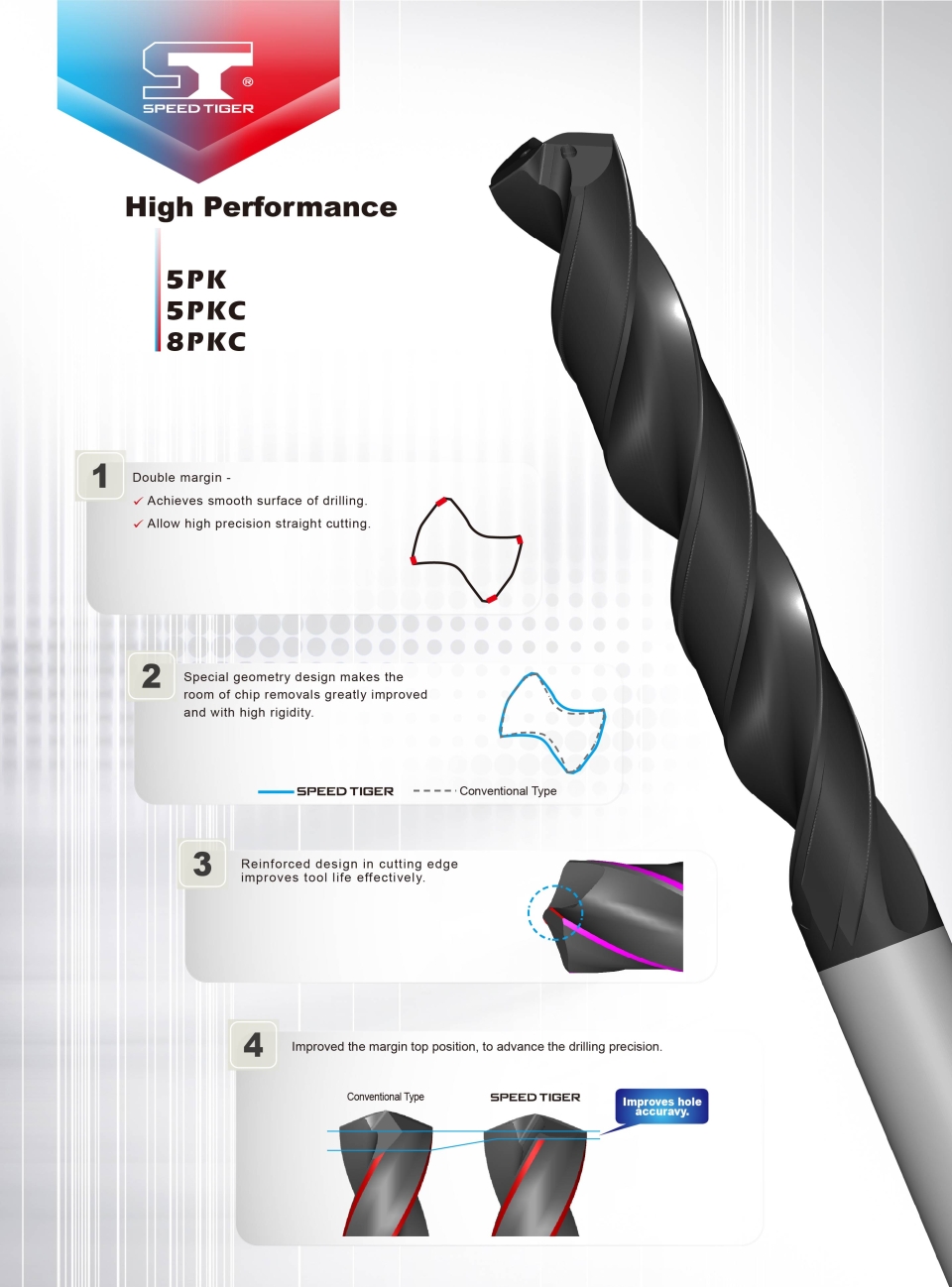

    Features



    1. Double margin
        Achieves smooth surface of drilling.
        Allow high precision straight cutting.
    2. Special geometry design makes the room of chip removals greatly improved and with high rigidity.
    3. Reinforced design in cutting edge improves tool life effectively.
    4. Improved the margin top position, to advance the drilling precision.


    鑽頭_PK

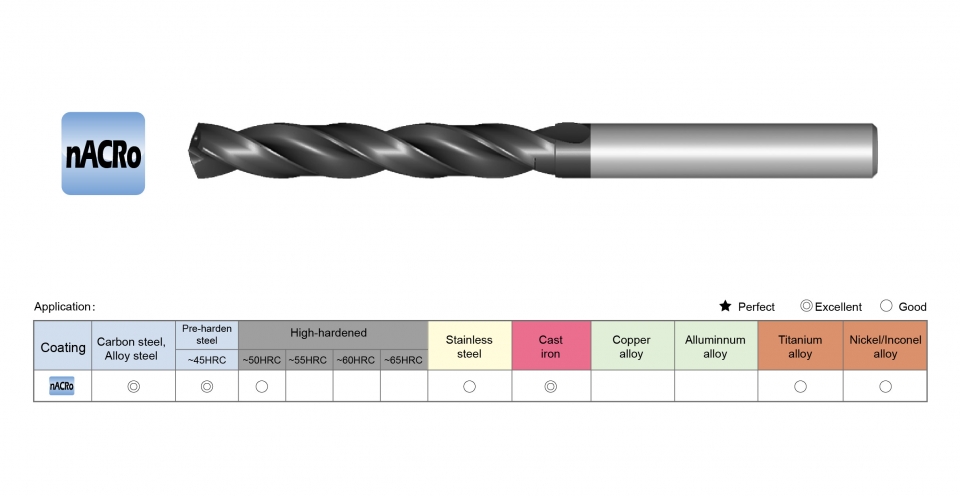

    Application



    ITEM Carbon steel,
    Alloy steel
    Pre-harden steel
    ~45HR
    High-hardened
    ~50HRC
    Stainless steel Cast iron Cooper alloy Aluminum alloy Titanium alloy Nickel/
    Inconel alloy
    5PK
     Excellent      Good

    PVD Coating (nACRo)

    nACRo Nanocomposite coating process.
    1. Contain Si membrane, oxidation start temperature: 1,100℃.
    2. Nano grade coating, better surface finish.
    3. Extremely high nano hardness, extremely high adhesion.
    4. Better protection for tools, reduction of production cost, economical environmentally manufacturing


    nacro
    nacro-1
    Package & Shipping



    Delivery :
    Generally, it is 5-7 days if the goods are in stock.
    It is 15-20 days if the goods are not in stock, it is according to quantity.


    包裝盒

    send inquiry
    https://www.speedtigertools.com/inquiry/

    learn more
    The Guide to Buying Carbide Drill Bits, Choose the right one for your job!
  • ►5PK without coolant hole - 5PKC 8PKC with coolant hole

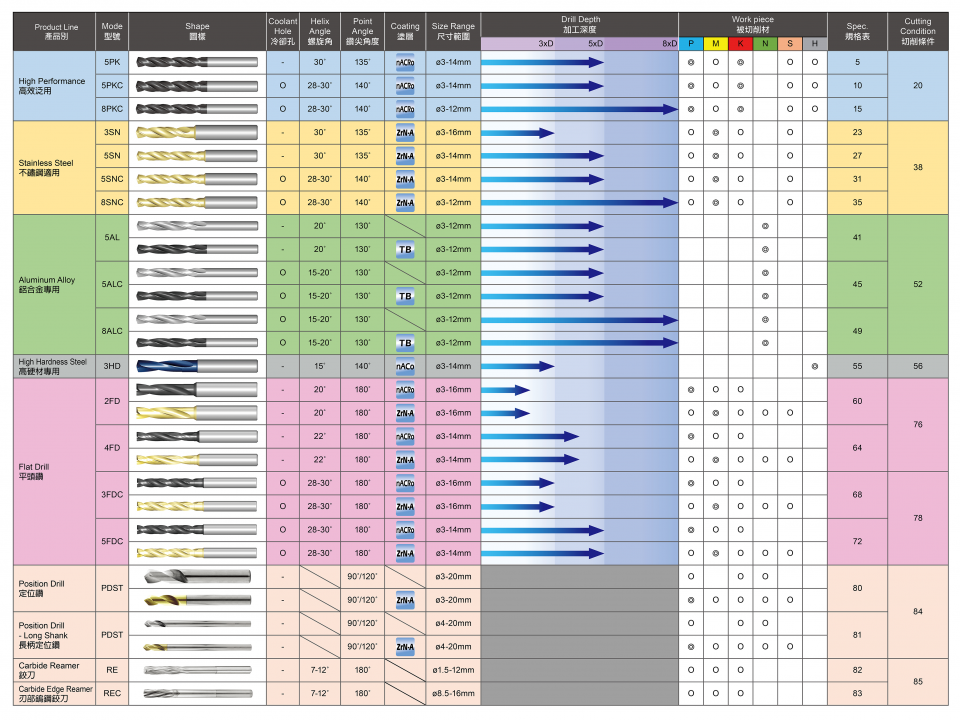

    Application Mode Photo Coolant Hole Helix Angle Point Angle Coating Diameter Spec. Cutting Condition
    General Steel & Cast iron 5PK 5PK-1 X 30° 135° nACRo 3.0mm~14.0mm Download Download
    General Steel & Cast iron 5PKC 5PKC-1 O 28~30° 140° nACRo 3.0mm~14.0mm Download
    General Steel & Cast iron 8PKC 8PKC-1 O 28~30° 140° nACRo 3.0mm~12.0mm Download
