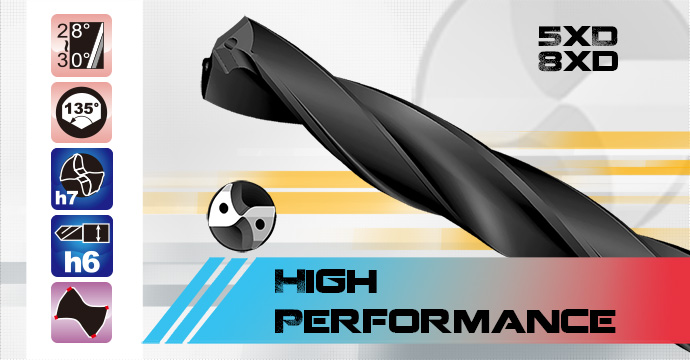

PKC High Performance Carbide Drill 5xD 8xDProduct Number：5PKC, 8PKC 5xD & 8xD High Performance With Coolant Hole Carbide Drills, Size Range: 3mm~14mm / 3mm~12mm, Point Angle: 1
█Features: ①Double margin: Achieves smooth surface of drilling and Allows high precision straight cutting. ②Special geometry design makes the room of chip removals greatly improved and with high rigidity. ③Reinforced design in cutting edge improves tool life effectively. ④ Improved the margin top position, to advance the drilling precision. █Application: Carbon steel, Alloy steel, Pre-harden steel ~45HR, Cast iron
►5PK ►5PKC ►8PKC - With Coolant Hole
♦Size Range: Ø3-12mm // Ø3-12mm
♦Point Angle: 140º

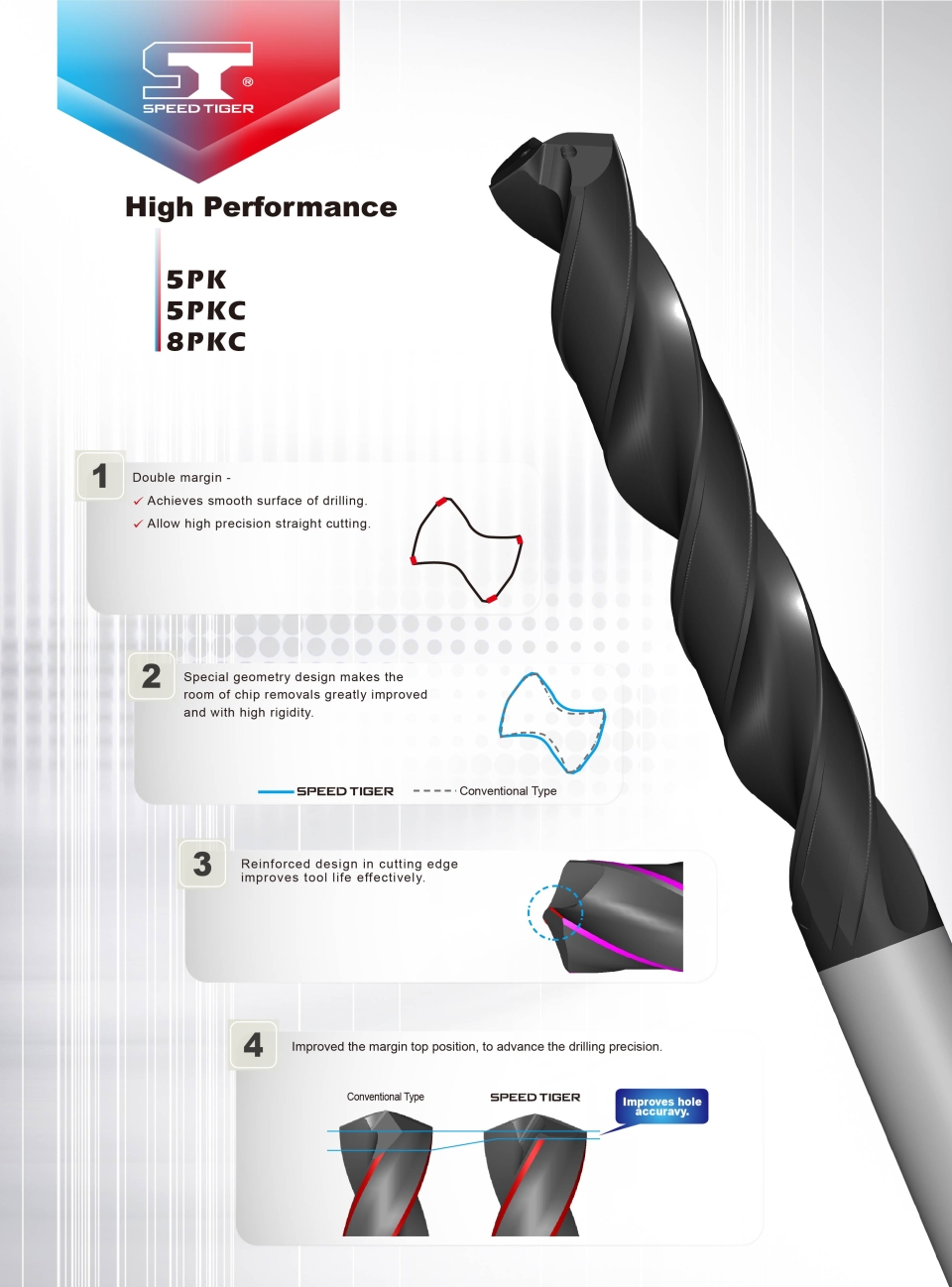

1. Double margin
Achieves smooth surface of drilling.
Allow high precision straight cutting.
2. Special geometry design makes the room of chip removals greatly improved and with high rigidity.
3. Reinforced design in cutting edge improves tool life effectively.
4. Improved the margin top position, to advance the drilling precision.

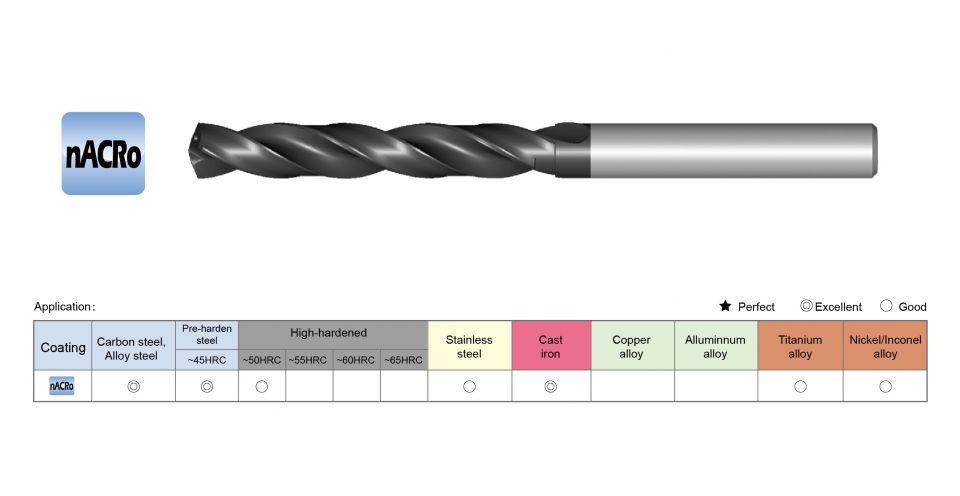

ITEM Carbon steel,
Stainless steel Cast iron Copper alloy Aluminum alloy Titanium alloy Nickel/
5PKC/8PKC ◎ ◎ ○ ○ ◎ ○ ○
PVD Coating (nACRo)
nACRo Nanocomposite coating process.
1. Contain Si membrane, oxidation start temperature: 1,100℃.
2. Nano-grade coating, better surface finish.
3. Extremely high nano hardness, extremely high adhesion.
4. Better protection for tools, reduction of production cost, economical environmentally manufacturing
Package & Shipping
Generally, it is 5-7 days if the goods are in stock.
It is 15-20 days if the goods are not in stock, it is according to quantity.

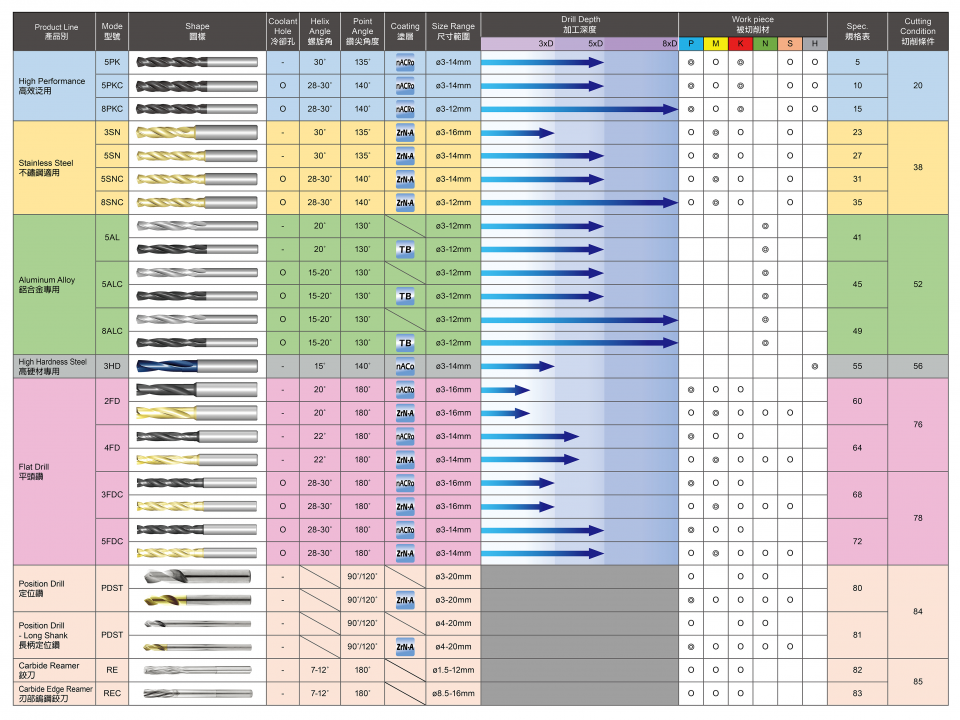

The Guide to Buying Carbide Drill Bits, Choose the right one for your job!
►5PK without coolant hole - 5PKC 8PKC with coolant hole
Application Mode Photo Coolant Hole Helix Angle Point Angle Coating Diameter Spec. Cutting Condition General Steel & Cast iron 5PK X 30° 135° nACRo 3.0mm~14.0mm Download Download General Steel & Cast iron 5PKC O 28~30° 140° nACRo 3.0mm~14.0mm Download General Steel & Cast iron 8PKC O 28~30° 140° nACRo 3.0mm~12.0mm Download
