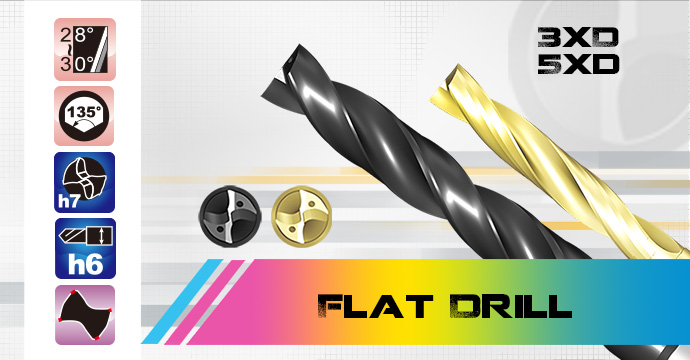

FDC Flat Drill With Coolant Hole 3xD 5xD

Product Number:3FDC, 5FDC
3xD & 5xD Carbide Flat Drill - With Coolant Hole
  • ►2FD ►4FD ►3FDC ►5FDC
    ♦Size Range: Ø3-16mm // Ø3-14mm
    ♦Point Angle: 180º


    Features


    鑽頭_FD
    鑽頭_FD2_FD2

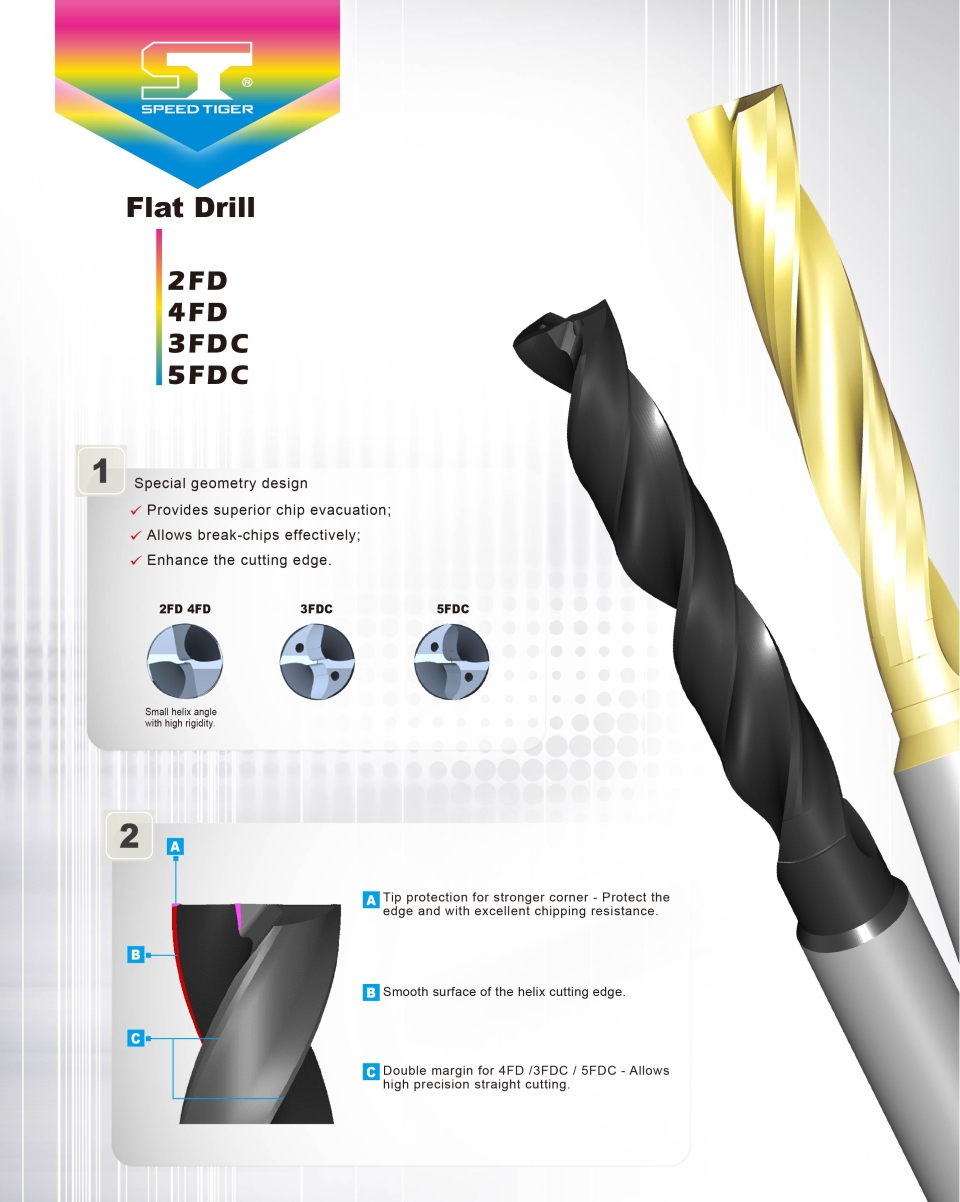

    1. Special geometry design
       -Provides superior chip evacuation
       -Allows break-chips effectively
       -Enhance the cutting edge
    2. A. Tip protection for Stronger Corner -Protect the edge and with excellent chipping resistance.
        B. Smooth surface of the helix cutting edge.
        C. Double margin for 4FD /3FDC / 5FDC - Allows high precision straight cutting.

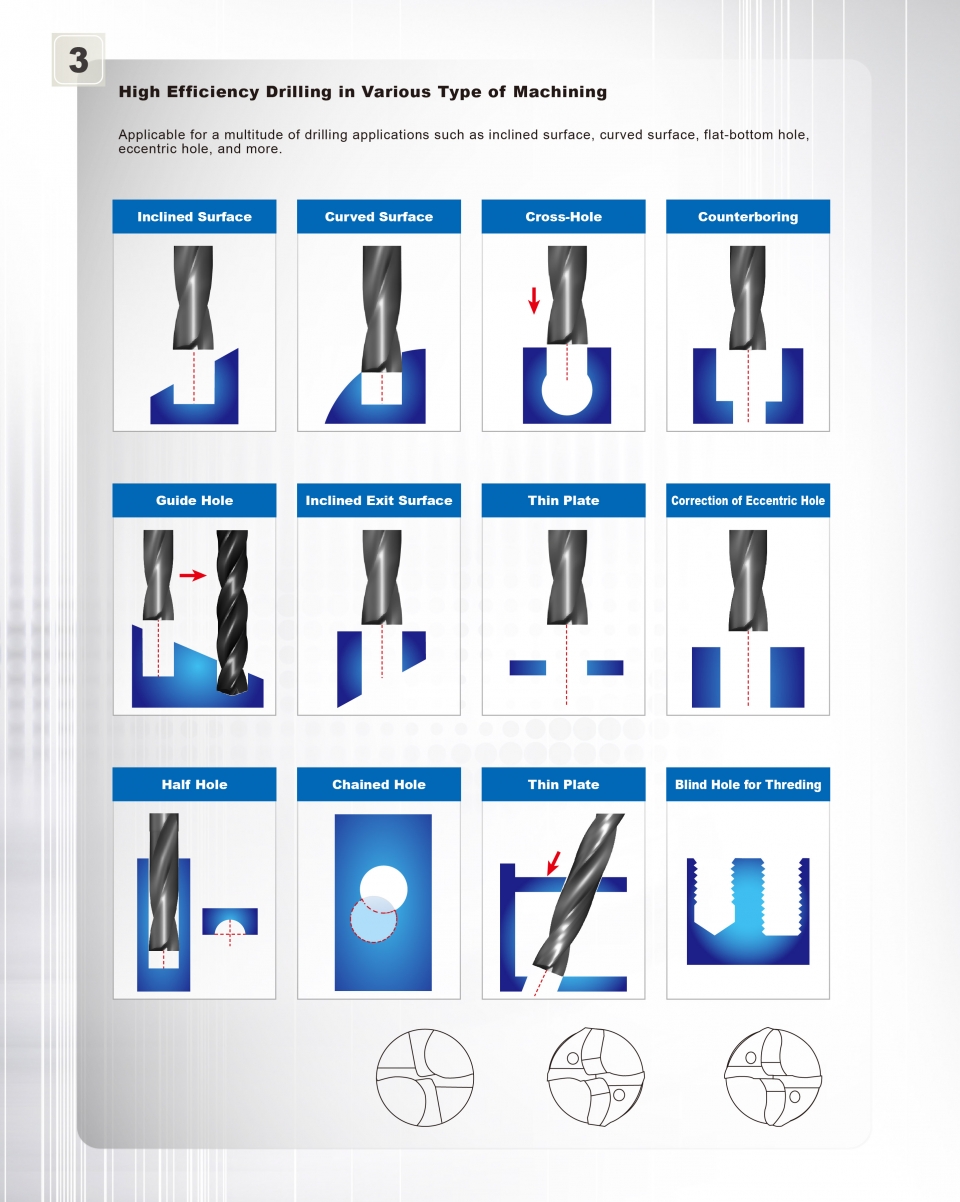

    3. High-Efficiency Drilling in Various Types of MachiningApplicable for a multitude of drilling applications such as inclined surface, curved surface, flatbottom hole, eccentric hole, and more.


    Application



    Coating Carbon steel,
    Alloy steel
    Pre-harden steel
    ~45HR
    High-hardened
    ~50HRC
    Stainless steel Cast iron Cooper alloy Aluminum alloy Titanium alloy Nickel/
    Inconel alloy

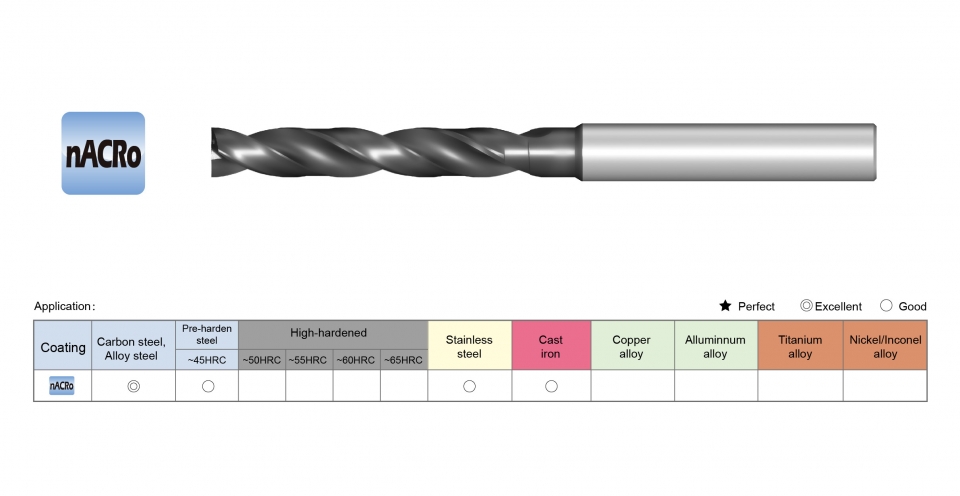

    nACRo

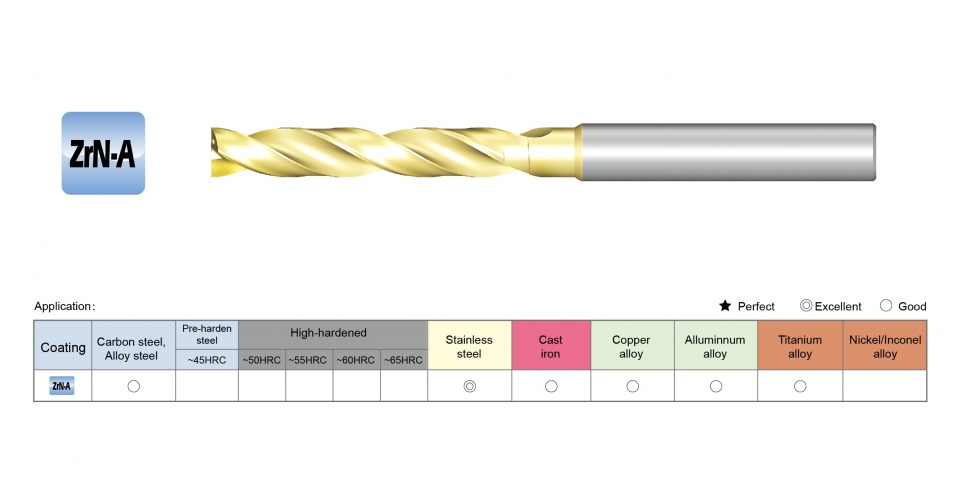

    ZrN-A
     Excellent      Good

    PVD Coating (nACRo & ZrN-A)

    coating_nACRo

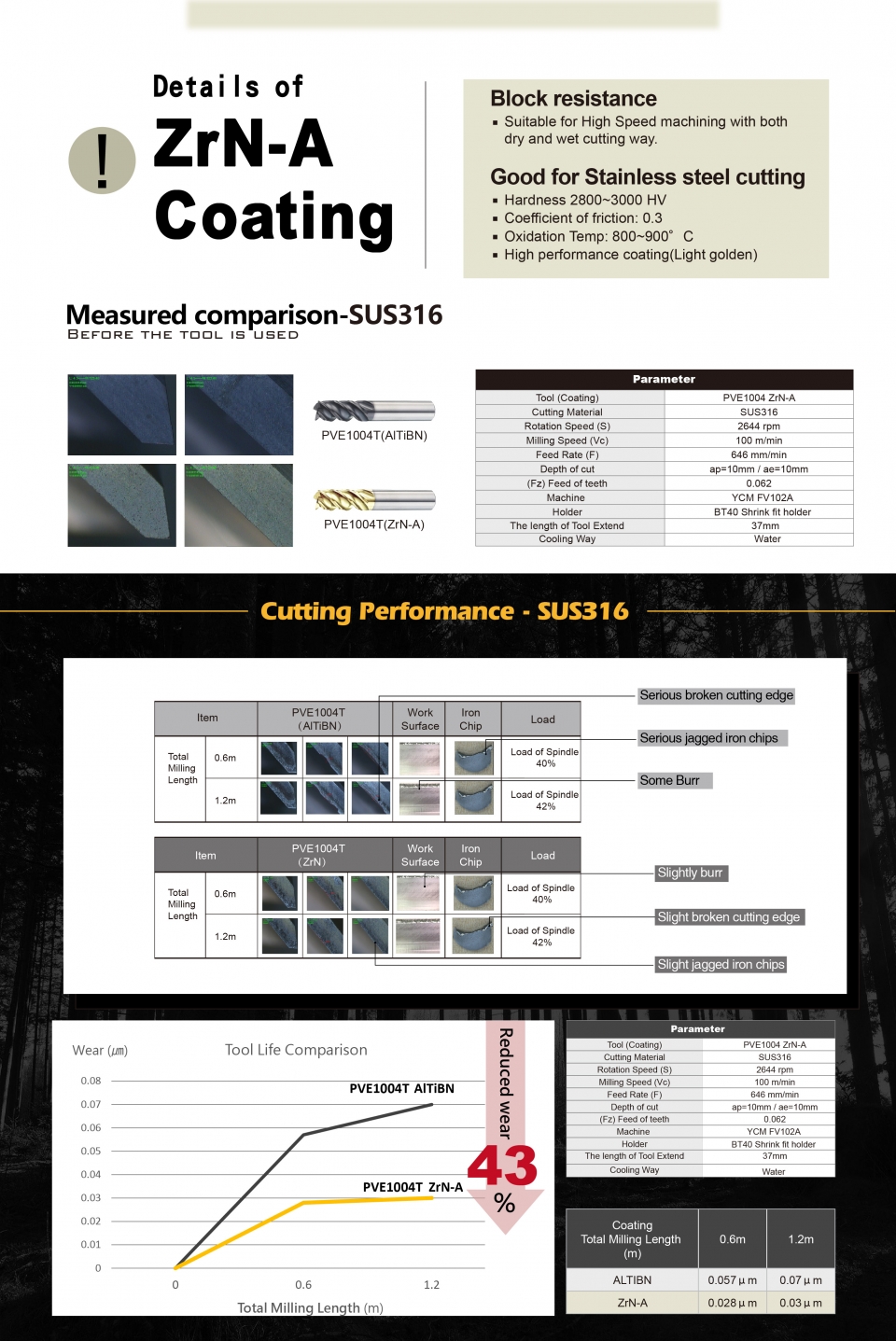

    coating 0428_ZrN-A
    Package & Shipping



    Delivery :
    Generally, it is 5-7 days if the goods are in stock.
    It is 15-20 days if the goods are not in stock, it is according to quantity.


    包裝盒

    SEND INQUIRY
    https://www.speedtigertools.com/inquiry/
  • ►2SN & 4SN- without coolant hole

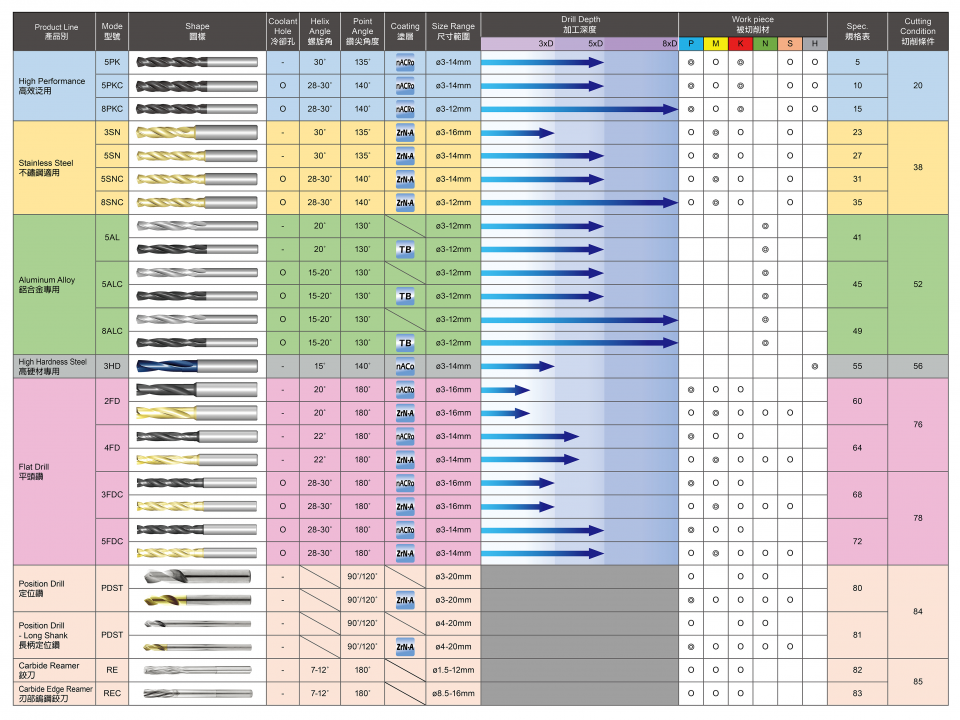

    Mode Photo Coolant Hole Helix Angle Point Angle Coating Diameter Spec. Cutting Condition

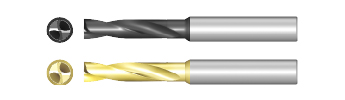

    2FD 2FD-1 X 30° 135° nACRo
    ZrN-A
    3.0mm~16.0mm Download Download
    4FD 4FD-1 X 30° 135° nACRo
    ZrN-A
    3.0mm~14.0mm Download

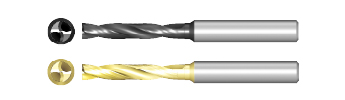

    3FDC 3FDC-1 O 28~30° 140° nACRo
    ZrN-A
    3.0mm~14.0mm Download Download

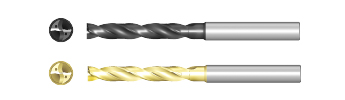

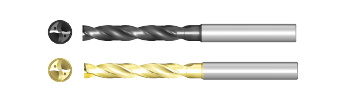

    5FDC 5FDC-1 O 28~30° 140° nACRo
    ZrN-A
    3.0mm~12.0mm Download
