Promotional Set - P-MSB 2Flutes/4Flutes

Product Number：P-MSB - 35° Helix Angle

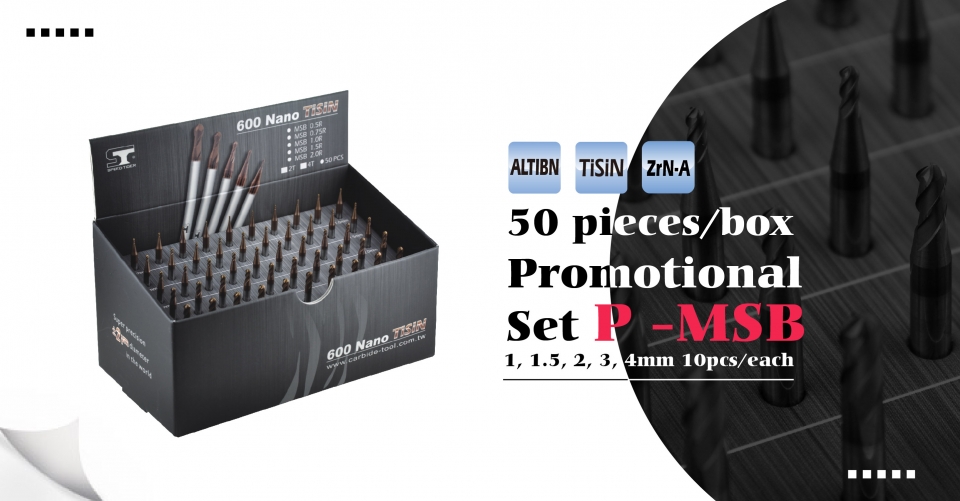

There is a total 50 pieces/ box Promotional Set including the most popular and general sizes, 1, 1.5, 2, 3, 4 mm 10 pieces /each, in order for you to have the right products to sell in your region and to help you enter the market and expand.

Add Inquiry

Specification Features Contact Us

There is a total 50 pieces/ box Promotional Set including the most popular and general sizes, 1, 1.5, 2, 3, 4mm 10pcs/each, in order for you to have the right products to sell in your region and to help you enter the market and expand.

2 Flutes - 35° Helix Angle

Shape	Mode	Diameter	Radius	Flute Length	Full Length	Shank Diameter	Flutes	Coating	Spec.	Cutting Condition
Square	P-MSB0102	1	0.5R	2	50	4	2	Uncoated ALTIBN TiSiN ZrN-A	Download	Download
Square	P-MSB0152	1.5	1.25R	3	50	4	2
Square	P-MSB0202	2	1R	4	50	4	2
Square	P-MSB0302	3	1.5R	6	50	4	2
Square	P-MSB0402	4	2R	8	50	4	2

4 Flutes - 35° Helix Angle

Shape	Mode	Diameter	Radius	Flute Length	Full Length	Shank Diameter	Flutes	Coating	Spec.	Cutting Condition
Square	P-MSB0104	1	0.5R	2	50	4	4	Uncoated ALTIBN TiSiN ZrN-A	Download	Download
Square	P-MSB0154	1.5	1.25R	3	50	4	4
Square	P-MSB0204	2	1R	4	50	4	4
Square	P-MSB0304	3	1.5R	6	50	4	4
Square	P-MSB0404	4	2R	8	50	4	4

Geometric Design
1. Maximized rigidity, and chip removals are greatly improved due to special geometric design and reinforced design in cutting edges against chipping at corners.
2. Excellent performance of anti-vibration and noise.
3. High hardness-used coating, effectively improves tool life and finishes.

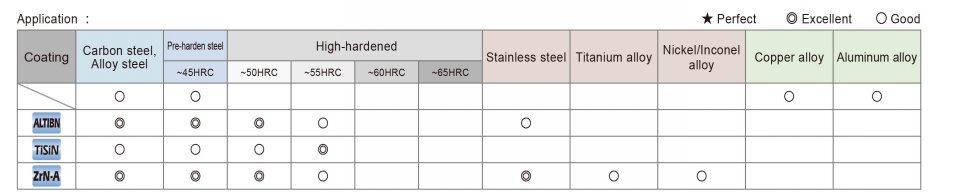

Coating Option

Speed Tiger is not only the largest cutting tools manufacturer, but also the first one that combined milling cutter coating technology in Taiwan. We provide a variety of coating types for different application, you could easily choose the most suitable coating for your work.

Shipping

Delivery: Generally it is 5-7 days if the goods are in stock.
It is 15-20 days if the goods are not in stock, it is according to quantity.
