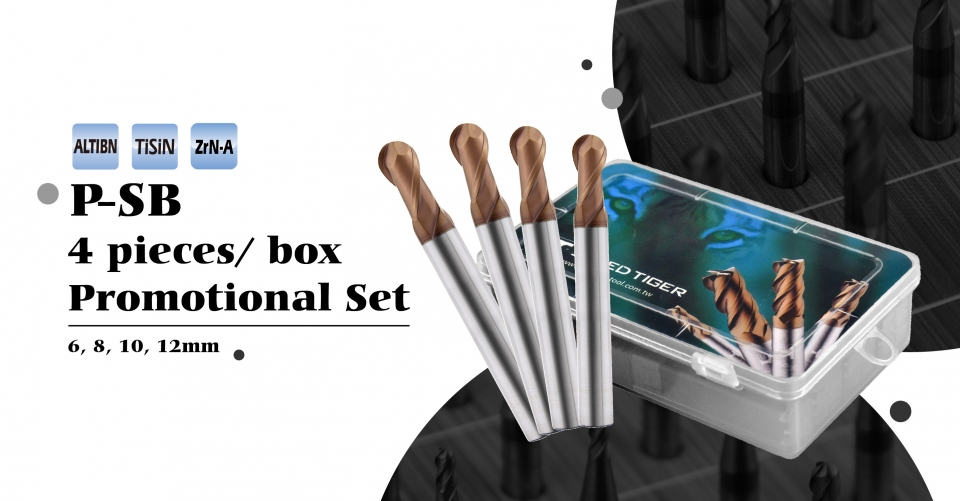

Promotional Set - P-SB 2Flutes/4Flutes

Product Number:P-SB - 35° Helix Angle
There is a 4 pieces/ box Promotional Set including the most popular and general sizes, 6, 8, 10, 12mm, in order for you to have the right products to sell in your region and to help you enter the market and expand.
  • There is a 4 pieces/ box Promotional Set including the most popular and general sizes, 6, 8, 10, 12mm, in order for you to have the right products to sell in your region and to help you enter the market and expand.

    2 Flutes - 35° Helix Angle
    Shape Mode Diameter Radius Flute Length Full Length Shank Diameter Flutes Coating Spec.  Cutting Condition
    Square P-SB0602 6 3R 16 50 6 2 Uncoated
    ALTIBN
    TiSiN
    ZrN-A
    Download Download
    Square P-SB0802 8 4R 20 60 8 2
    Square P-SB1002 10 5R 30 75 10 2
    Square P-SB1202 12 6R 32 75 12 2

    4 Flutes - 35° Helix Angle
    Shape Mode Diameter Radius Flute Length Full Length Shank Diameter Flutes Coating  Spec.  Cutting Condition
    Square P-SB0604 6 3R 16 50 6 4 Uncoated
    ALTIBN
    TiSiN
    ZrN-A
    Download Download
    Square P-SB0804 8 4R 20 60 8 4
    Square P-SB1004 10 5R 30 75 10 4
    Square P-SB1204 12 6R 32 75 12 4


  • Geometric Design



    feature_工作區域 1 複本
    1. Maximized rigidity, and chip removals are greatly improved due to special geometric design and reinforced design in cutting edges against chipping at corners.
    2. Excellent performance of anti-vibration and noise.
    3. High hardness-used coating, effectively improves tool life and finishes.

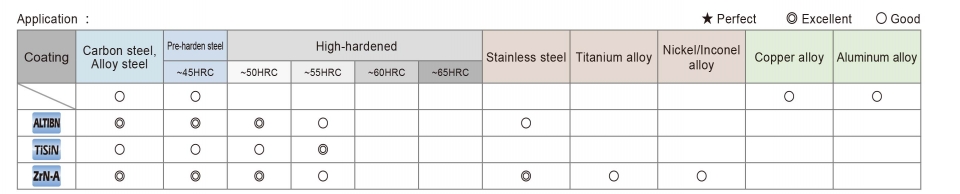

    Coating Options



    應用表_工作區域 1

    Speed Tiger is not only the largest cutting tools manufacturer, but also the first one that combined milling cutter coating technology in Taiwan. We provide a variety of coating types for different application, you could easily choose the most suitable coating for your work.

    Shipping



    Delivery: Generally it is 5-7 days if the goods are in stock.
    It is 15-20 days if the goods are not in stock, it is according to quantity.
