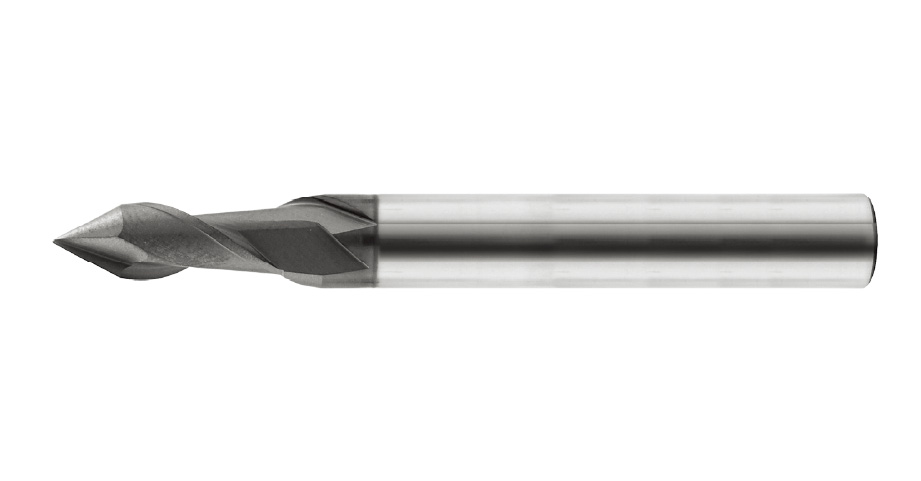

CDM Multi-function End Mill - 2 Flutes

Product Number:CDM
█Features: ①Ideal for Centering, Chamfering, Carving V Groove, Sidemilling. ②60°, 90°, 120°, three tip angles for options. ③HIGH PERFORMANCE FOR HARD MATERIALS - Cutter is made of Micro Grain Carbide that is very tough, resists wear, and offers high cutting performance. █Application - Speed Tiger carbide tools excel at working wood, aluminum, copper, MDF, carbon steels (~HB225), alloy steels (HB225~325), pre-hardened steels (up to HRC45), hardened Steels (HRC40~45), cast iron.
  • Features

    規格_CDM

    600 Nano Series General Application

    Application:  ~45HRC/Iron, Carbon steel, Cast Iron, Alloy Steel, Tool Steel, Heat treatment Steel, Welding Steel.

    Micro Grain Carbide that has high toughness, coating AlTiN and wear-resisting, non-general titanium, aluminum specializes in milling on M/C high hardness at a high
    speed and can carry on rough machining get to detailed process directly for heat treatment mould to reduce change times, improve machine flexible rate and shorten producing time.


    Comparison

    Series Grain Size Hardness
     (HRC)
    Coating Application
    200 Nano 0.2μm ~65 TiSiN Super Hard Hardness
    400 Nano 0.4μm ~60 nBS High Hardness
    600 Nano 0.6μm ~45 AlTiN General


  • Spec. Download

    MODE Diameter Flute
    Length
    Full
    Length
    Shank
    Diameter
    Tip Angle Flutes
    CDM060030 ALTIBN 3 6 50 4 60° 2
