PF47 Profiling & Boring
Product Number：PF47
█Features: ①Profiling & Boring, 47° ②HIGH PERFORMANCE FOR HARD MATERIALS - Cutter is made of Micro Grain Carbide that is very tough, resists wear, and offers high cutting performance. ③HIGH-QUALITY - Flutes ground by a world-class ISO-9001 Factory █Application: Mild steels, Carbon steels, Alloy steels, Cast iron, Stainless steel, Aluminum, Copper, etc.
-

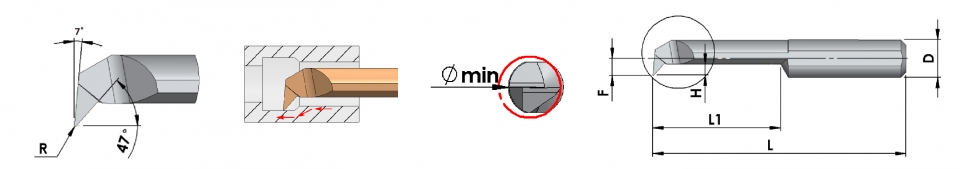

MODE D Ø min F L L1 R H PF47-10.005-03 R/L 4 1 0.4 50 3 0.050.2 PF47-10.005-05 R/L 4 1 0.4 50 5 0.05 0.2 PF47-20.005-06 R/L 4 2 0.8 50 6 0.05 0.4 PF47-20.005-10 R/L 4 2 0.8 50 10 0.05 0.4 PF47-20.005-14 R/L 4 2 0.8 50 14 0.05 0.4 PF47-30.010-09 R/L 4 3 1.3 50 9 0.1 0.6 PF47-30.010-15 R/L 4 3 1.3 50 15 0.1 0.6 PF47-30.010-21 R/L 4 3 1.3 50 21 0.1 0.6 PF47-40.010-12 R/L 4 4 1.8 50 12 0.1 0.8 PF47-40.010-20 R/L 4 4 1.8 50 20 0.1 0.8 PF47-40.010-28 R/L 4 4 1.8 60 28 0.1 0.8 PF47-50.020-15 R/L 6 5 2.3 50 15 0.2 1 PF47-50.020-25 R/L 6 5 2.3 50 25 0.2 1 PF47-50.020-35 R/L 6 5 2.3 60 35 0.2 1 PF47-60.020-18 R/L 6 6 2.8 50 18 0.2 1.2 PF47-60.020-30 R/L 6 6 2.8 60 30 0.2 1.2 PF47.60.020-42 R/L 6 6 2.8 75 42 0.2 1.2 PF47-70.020-21 R/L 8 7 3.3 60 21 0.2 1.4 PF47-70.020-35 R/L 8 7 3.3 75 35 0.2 1.4 PF47-70.020-49 R/L 8 7 3.3 100 49 0.2 1.4 PF47-80.020-24 R/L 8 8 3.8 60 24 0.2 1.6 PF47-80.020-40 R/L 8 8 3.8 75 40 0.2 1.6 PF47-80.020-56 R/L 8 8 3.8 100 56 0.2 1.6 -
-
-
