BT Back Turning

Product Number:BT
Diameter:Ø4.0mm~Ø8.0mm

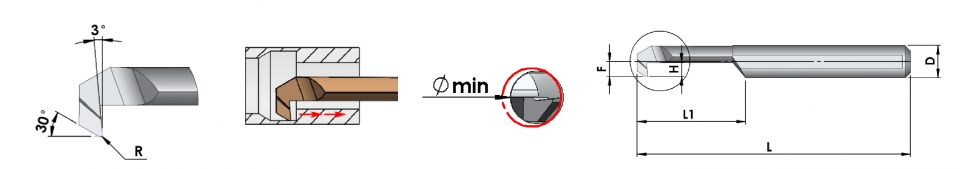

  • 車刀規格圖_Back Turning


    MODE D Ø min F L L1 R H W
    BT30-40.010-12 R/L 4 4 1.8 50 12
    0.1
    1 1.5
    BT30-40.010-20 R/L 4 4 1.8 50 20 0.1 1 1.5
    BT30-60.020-18 R/L 6 6 2.8 50 18 0.2 1.5 2
    BT30-60.020-30 R/L 6 6 2.8 60 30 0.2 1.5 2.5
    BT30-80.020-24 R/L 8 8 3.8 60 24 0.2 2 2.5
    BT30-80.020-40 R/L 8 8 3.8 75 40 0.2 2 2.5
