TA Threading

Product Number:TA
Diameter:Ø2.3mm~Ø6.0mm

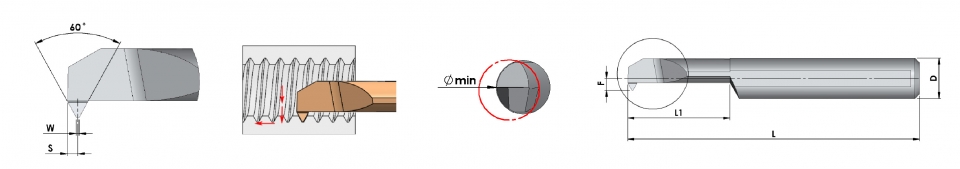

  • 車刀規格圖_Threading

    MODE D Ø min F P(mm) P(TPI) L L1 S W
    TA60-23-08 R/L 4 2.3 1.0 0.2-0.5 80-48
    50
    8 0.45 0.03
    TA60-30-15 R/L 4 3.0 1.3 0.5-0.75 40-36 50 15 0.75 0.06
    TA60-40-15 R/L 4 4.0 1.8 0.5-0.1 40-24 50 15 0.75 0.06
    TA60-60-20 R/L 6 6.0 2.8 0.75-1.5 36-18 50 20 0.8 0.09
