Thread Mill Cutter ISO 1.5D (Effective Length)

Product Number:TMEL + Thread Dia. + Pitch + Dia. + Flutes

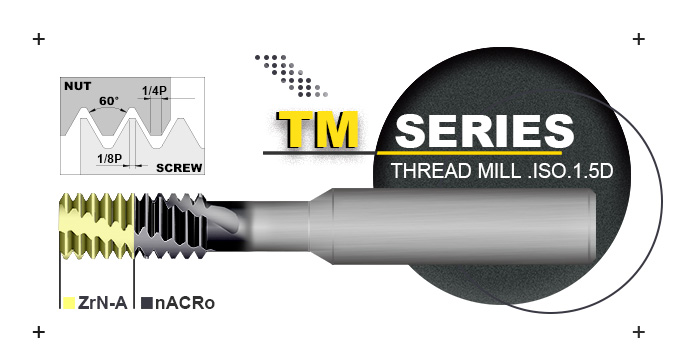

Thread Diameter: M3~M16 // Thread Length: 1.5 x Thread Diameter // TM - ISO R262 (DIN13) / 6H // with Effective Length █ Features: ①Speed Tiger solid carbide Thread Mill offers long tool life and faster cutting speeds. ②Flute design reduces thread chatter, improving product thread finish and quality. ③Available in Single Form, Multi-Form, Tri-Form, and customized. ④Two coating options: ZrN-A and nACro coating, provide good hardness and better resistance to chemical breakdown in high-heat applications.

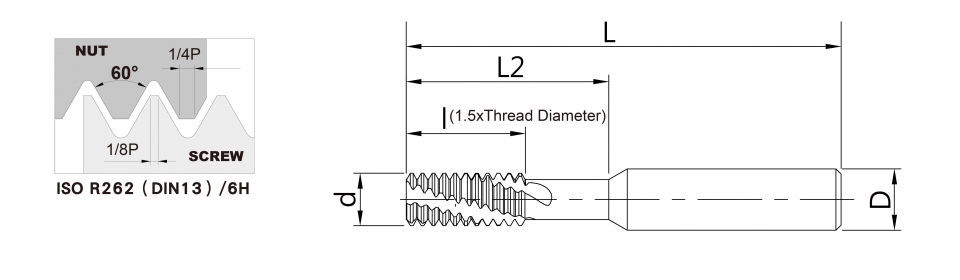

  • 加工綫稿_TMEL
    MODE Thread Diameter
    (M)
    Pitch
    (mm)
    Diameter
    (d)
    Thread Length
    (l)
    Full Length
    (L)
    Shank Diameter
    (D)
    No. of
    flutes (Z)
    Effective Length
    (L2)
    TMEL-M0305002303 M3 0.5 2.3 5.0 50 4 3 9
    TMEL-M0407003103 M4 0.7 3.1 7.0 50 40 3 12
    TMEL-M0508003803 M5 0.8 3.8 8.0 50 4 3 15
    TMEL-M0610004503 M6 1 4.5 10 65 6 3 18
    TMEL-M0812506004 M8 1.25 6 13.8 65 6 4 24
    TMEL-M1015007504 M10 1.5 7.5 16.5 80 8 4 30
    TMEL-M1217509504 M12 1.75 9.5 19.3 105 10 5 42
    TMEL-M1420010005 M14 2 10 24 105 10 5 42
    TMEL-M1620012005 M16 2 12 26 105 12 5 48
