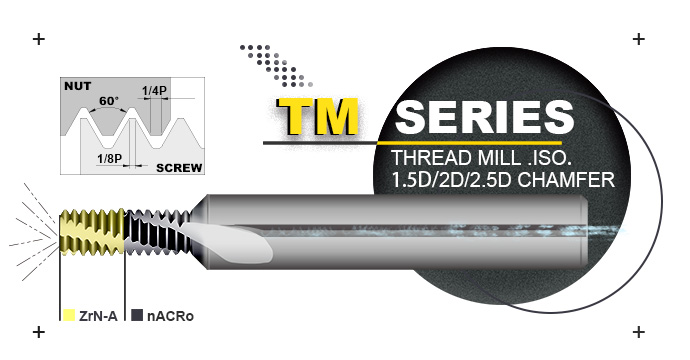

Thread Mill ISO 1.5D/2D/2.5D Chamfer

Product Number:TMCH + Thread Dia. + Pitch + Dia. + Flutes (Thread Length)

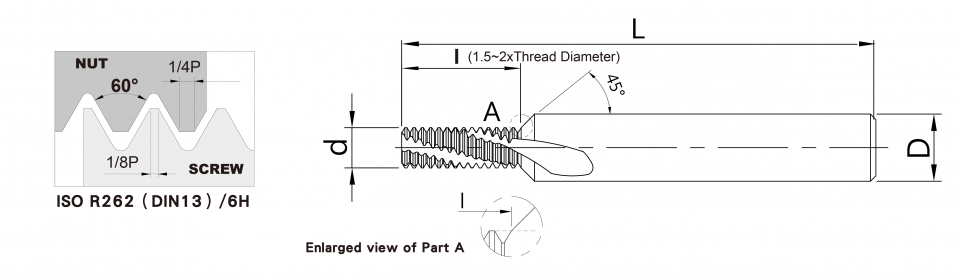

Thread Diameter: M5~M12 // Thread Length: 1.5~2.5 x Thread Diameter // TM - ISO R262 (DIN13) / 6H // Chamfer
  • 加工綫稿_Chamfer
    MODE Thread Diameter
    (M)
    Pitch
    (mm)
    Diameter
    (d)
    Thread Length
    (l)
    Full Length
    (L)
    Shank Diameter
    (D)
    No. of
    flutes (Z)
    TMCH45-M0305002303(TL5.25) M3 (1.5xD) 0.5 2.3 5.25 65 6 3
    TMCH45-M0305002303(TL6.75) M3 (2xD) 0.5 2.3 6.75 65 6 3
    TMCH45-M0407003103(TL7.35) M4 (1.5xD) 0.7 3.1 7.35 65 6 3
    TMCH45-M0407003103(TL8.75) M4 (2xD) 0.7 3.1 8.75 65 6 3
    TMCH45-M0508003803(TL8.4) M5 (1.5xD) 0.8 3.8 8.4 65 6 3
    TMCH45-M0508003803(TL10.8) M5 (2xD) 0.8 3.8 10.8 65 6 3
    TMCH45-M0610004503(TL10.5) M6 (1.5xD) 1 4.5 10.5 80 8 3
    TMCH45-M0610004503(TL13.5) M6 (2xD) 1 4.5 13.5 80 8 3
    TMCH45-M0610004503(TL16.5) M6 (2.5xD) 1 4.5 16.5 80 8 3
    TMCH45-M0812506004(TL14.38) M8 (1.5xD) 1.25 6 14.38 80 10 4
    TMCH45-M0812506004(TL18.13) M8 (2xD) 1.25 6 18.13 80 10 4
    TMCH45-M0812506004(TL21.88) M8 (2.5xD) 1.25 6 21..88 80 10 4
    TMCH45-M1015007504(TL17.25) M10 (1.5xD) 1.5 7.5 17.25 105 12 4
    TMCH45-M1015007504(TL21.75) M10 (2xD) 1.5 7.5 21.75 105 12 4
    TMCH45-M1015007504(TL27.75) M10 (2.5xD) 1.5 7.5 27.75 105 12 4
    TMCH45-M1217509504(TL20.13) M12 (1.5xD) 1.75 9.5 20.13 105 14 4
    TMCH45-M1217509504(TL27.13) M12 (2xD) 1.75 9.5 27.13 105 14 4
    TMCH45-M1217509504(TL32.38) M12 (2.5xD) 1.75 9.5 32.3 105 14 4
