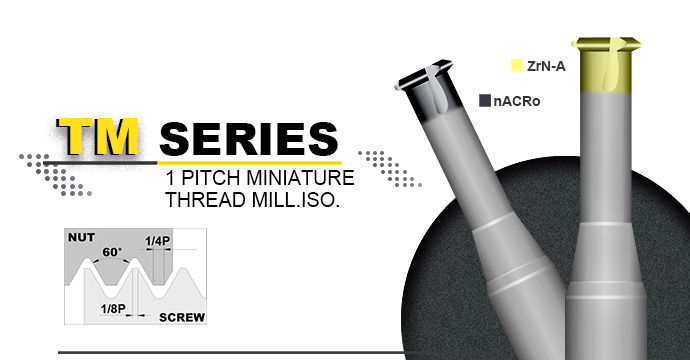

1 Pitch Miniature Thread Mill Cutter ISO
Product Number：TMSM1ZT + Thread Dia. + Pitch + Dia. + Flutes
Thread Diameter: M1.6~M12 // Thread Length: 1.5 ~ 5.25 mm // TM - ISO R262 (DIN13) / 6H // with Effective Length █ Features: ①Speed Tiger solid carbide Thread Mill offers long tool life and faster cutting speeds. ②Flute design reduces thread chatter, improving product thread finish and quality. ③An offering of Single Form Treadmills. ④Two coating options: ZrN-A and nACro coating, provide good hardness and better resistance to chemical breakdown in high-heat applications.
-

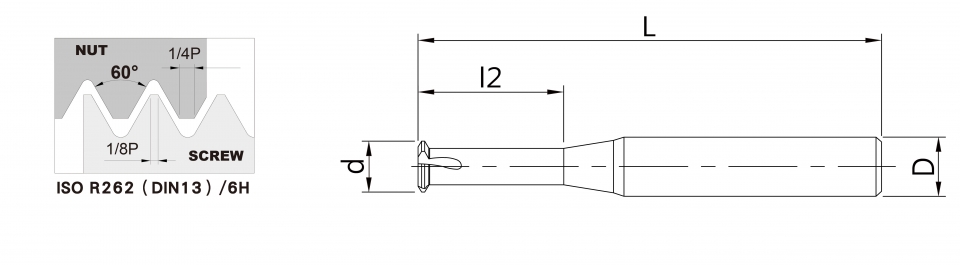

MODE Thread Diameter
(M)Pitch
(mm)Diameter
(d)Full Length
(L)Shank Diameter
(D)No. of
flutes (Z)Effective Length
(L2)TMSM1ZT-M01002500723 M1.0 0.25 0.72 50 4 3 3.1 TMSM1ZT-M01202500903 M1.2 0.25 0.9 50 4 3 3.7 TMSM1ZT-M01403001053 M1.4 0.3 1.05 50 4 3 4.3 TMSM1ZT-M01603501203 M1.6 0.35 1.2 50 4 3 5.0 TMSM1ZT-M02004001523 M2 0.4 1.52 50 4 3 6.2 TMSM1ZT-M02204501603 M2.2 0.45 1.6 50 4 3 6.8 TMSM1ZT-M02504501903 M2.5 0.45 1.9 50 4 3 7.8 TMSM1ZT-M03005002303 M3 0.5 2.3 50 4 2 9.3 -
-
