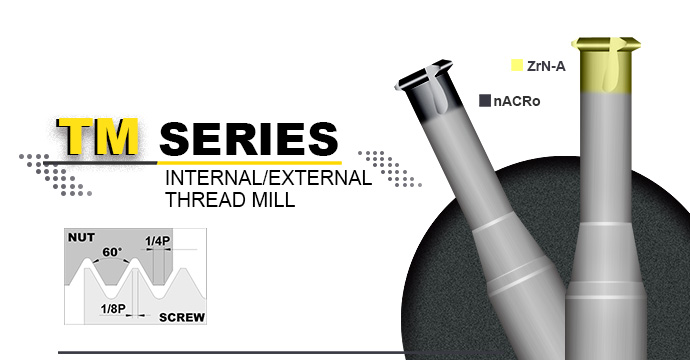

60° Thread Mill Cutter for Internal & External
Product Number：TMPA60 - Full Length - Effective Length + Dia. + Flutes
60° / Threading Whatever You Like. █ Features: ①Speed Tiger solid carbide Thread Mill offers long tool life and faster cutting speeds. ②Flute design reduces thread chatter, improving product thread finish and quality. ③Available in Single Form, Multi-Form, Tri-Form, and customized. ③Two coating options: ZrN-A and nACro coating, provide good hardness and better resistance to chemical breakdown in high-heat applications.
-

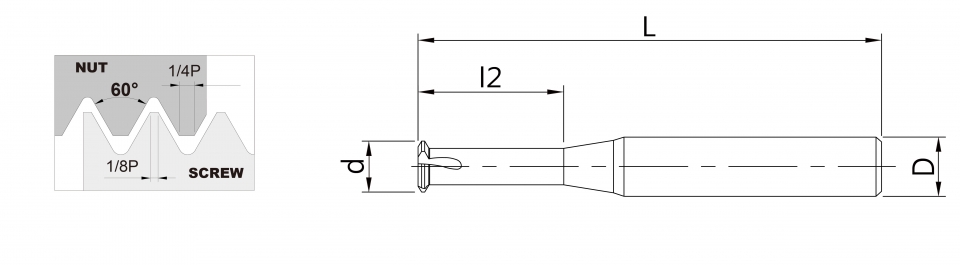

MODE Pitch
mmPitch
TPIDiameter
(d)Thread Length
(l)Full Length
(L)Shank Diameter
(D)No. of
flutes (Z)Effective Length
(L2)TMPA60-035-0600195003 0.35-0.6 72-40 1.95 0.75 50 4 3 6.0 TMPA60-050-0770245003 0.5-0.8 48-32 2.45 0.75 50 4 3 7.7 TMPA60-050-1000315003 0.5-0.8 48-32 3.15 0.90 50 4 3 10.0 TMPA60-050-1200400003 0.5-1.0 48-24 4 1.05 50 4 3 12.0 TMPA60-050-1500470004 0.5-1.25 48-20 4.7 1.05 50 4 3 12.0 TMPA60-050-1800600004 0.5-1.25 48-20 6 1.20 60 6 4 18.0 TMPA60-075-2400800004 0.75-1.5 32-16 8 1.20 60 8 4 24.0 TMPA60-100-3001000005 1.0-2.5 24-10 10 1.35 75 10 5 30.0 TMPA60-100-3601200005 1.0-2.5 24-10 12 1.35 100 12 5 36.0 -
-
