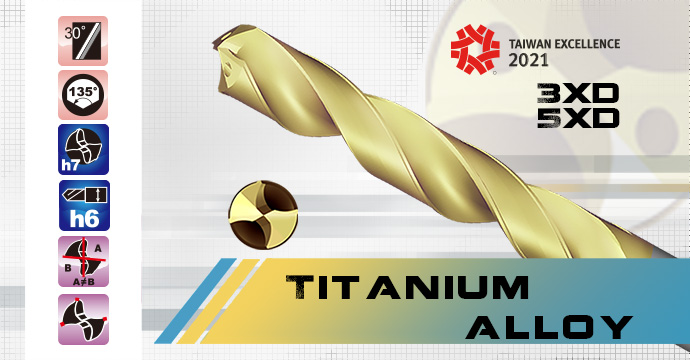

SN Carbide Drill For Titanium 3xD 5xD

Product Number:3SN, 5SN - 3xD & 5xD Carbide Drill For Titanium - Without Coolant Hole , Size Range: 3mm~16mm / 3mm~14mm , Point Angle:
█Features: ①Dissymmetrical irregular margins: Achieves smooth surface of drilling, allow high precision straight cutting and anti-vibration ②Unequal Flute Spacing - Anti-vibration and the chip removals are improved. ③Improved the margin top position, to advance the drilling precision. █Application: Stainless steel
  • ►3SN ►5SN ►5SNC ►8SNC
    ♦Size Range: Ø3-16mm // Ø3-14mm
    ♦Point Angle: 135º

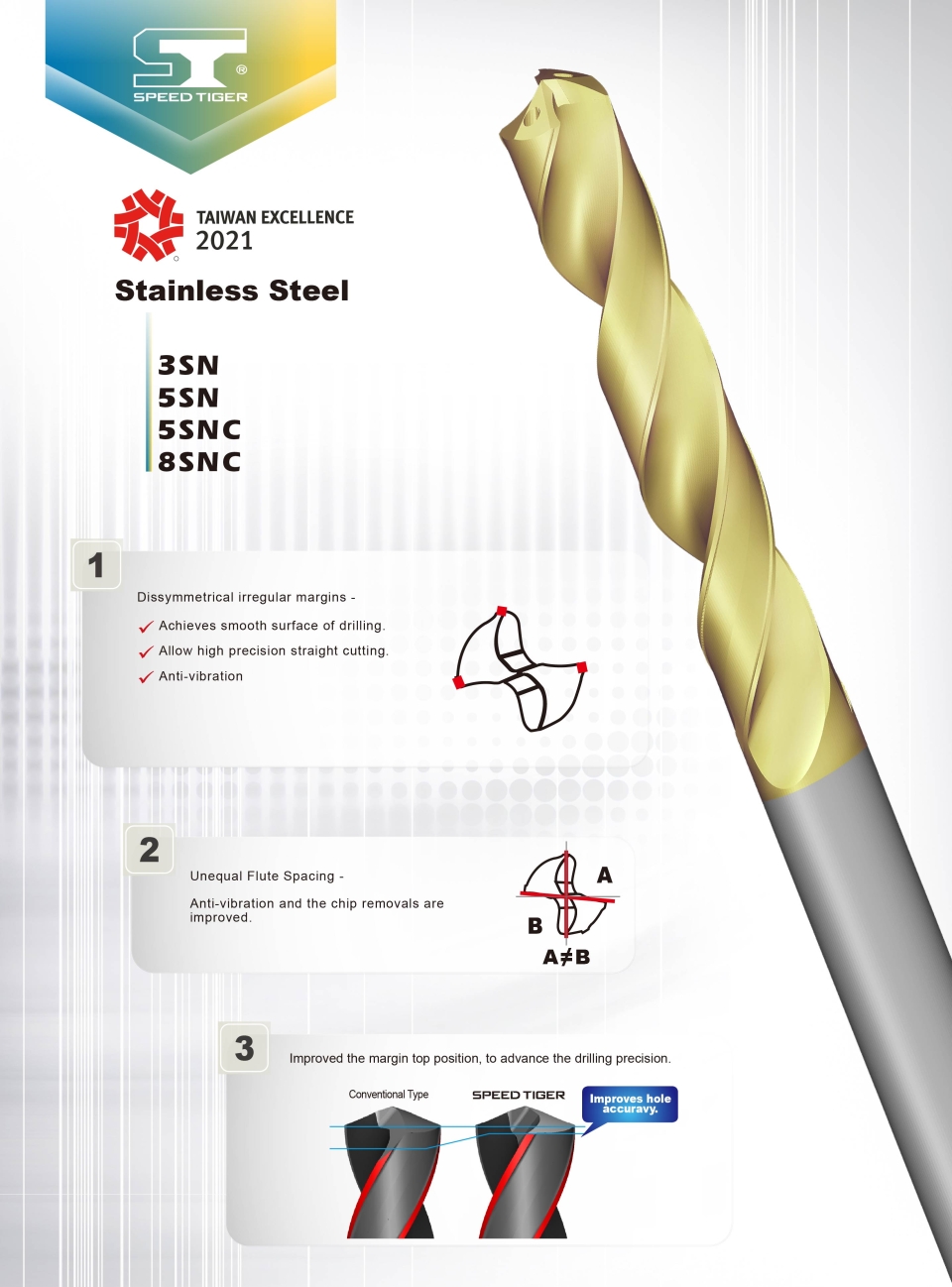

    Features



    1. Dissymmetrical irregular margins
       - Achieves smooth surface of drilling.
       - Allow high precision straight cutting.
       - Anti-vibration
    2. Unequal Flute Spacing - Anti-vibration and the chip removals are improved.
    3. Improved the margin top position, to advance the drilling precision.


    鑽頭_SN

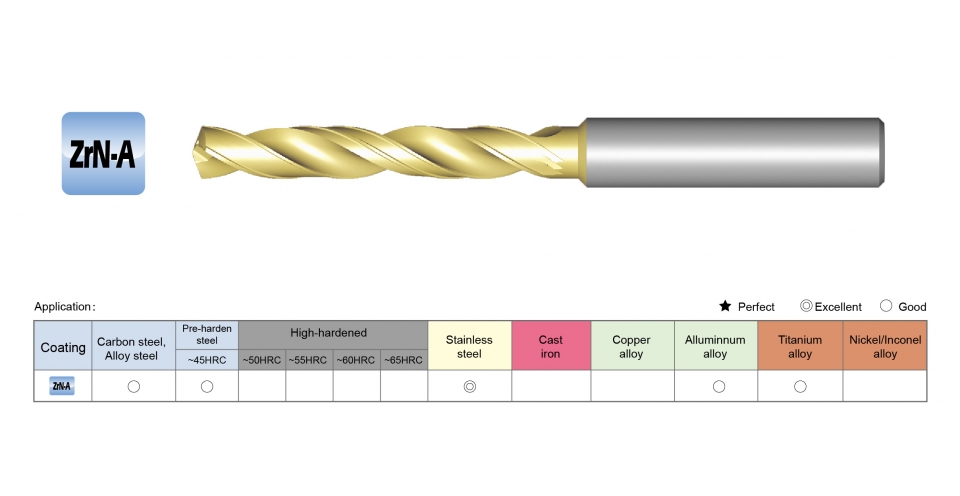

    Application



    ITEM Carbon steel,
    Alloy steel
    Pre-harden steel
    ~45HR
    High-hardened
    ~50HRC
    Stainless steel Cast iron Cooper alloy Aluminum alloy Titanium alloy Nickel/
    Inconel alloy
    3SN/5SN
     Excellent      Good

    PVD Coating (ZrN-A)

    coating 0428_ZrN-A

    Package & Shipping



    Delivery :
    Generally, it is 5-7 days if the goods are in stock.
    It is 15-20 days if the goods are not in stock, it is according to quantity.


    包裝盒
    send inquiry
    https://www.speedtigertools.com/inquiry/

    learn more
    The Guide to Buying Carbide Drill Bits, Choose the right one for your job!
  • ►3SN & 5SN- without coolant hole

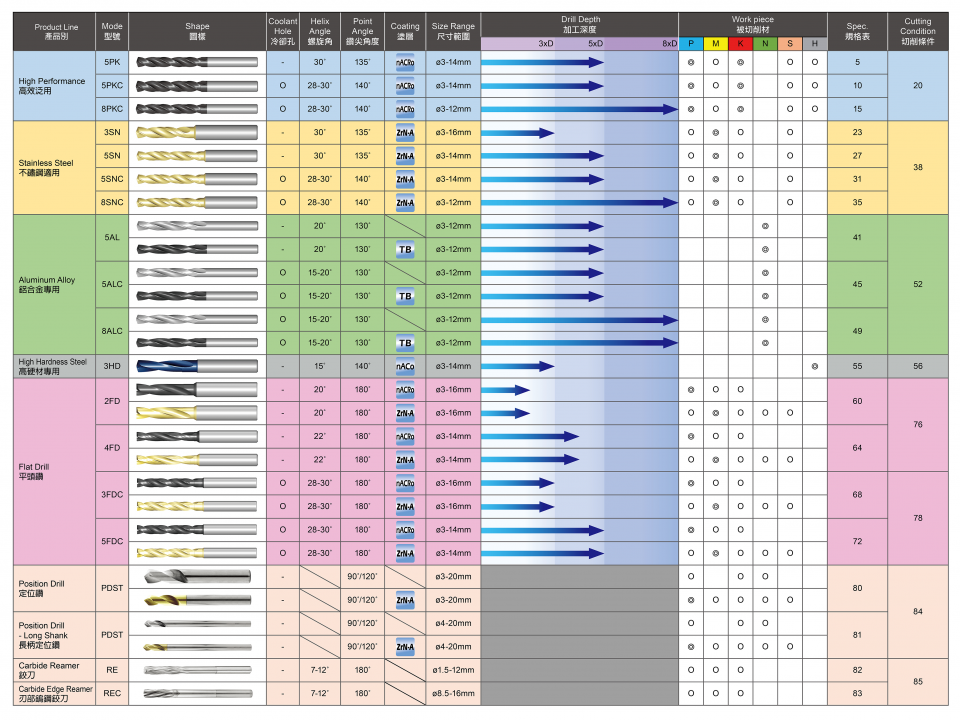

    Application Mode Photo Coolant Hole Helix Angle Point Angle Coating Diameter Spec.  Cutting Condition
    Titanium
    Stainless Steel
    3SN 3SN-1 X 30° 135° ZrN-A 3.0mm~16.0mm Download Download
    Titanium
    ​Stainless Steel
    5SN 5SN-1 X 30° 135° ZrN-A 3.0mm~14.0mm Download
    Titanium
    ​Stainless Steel
    5SNC 5SNC-1 O 28~30° 140° ZrN-A 3.0mm~14.0mm Download
    Titanium
    ​Stainless Steel
    8SNC 8SNC-1 O 28~30° 140° ZrN-A 3.0mm~12.0mm Download
