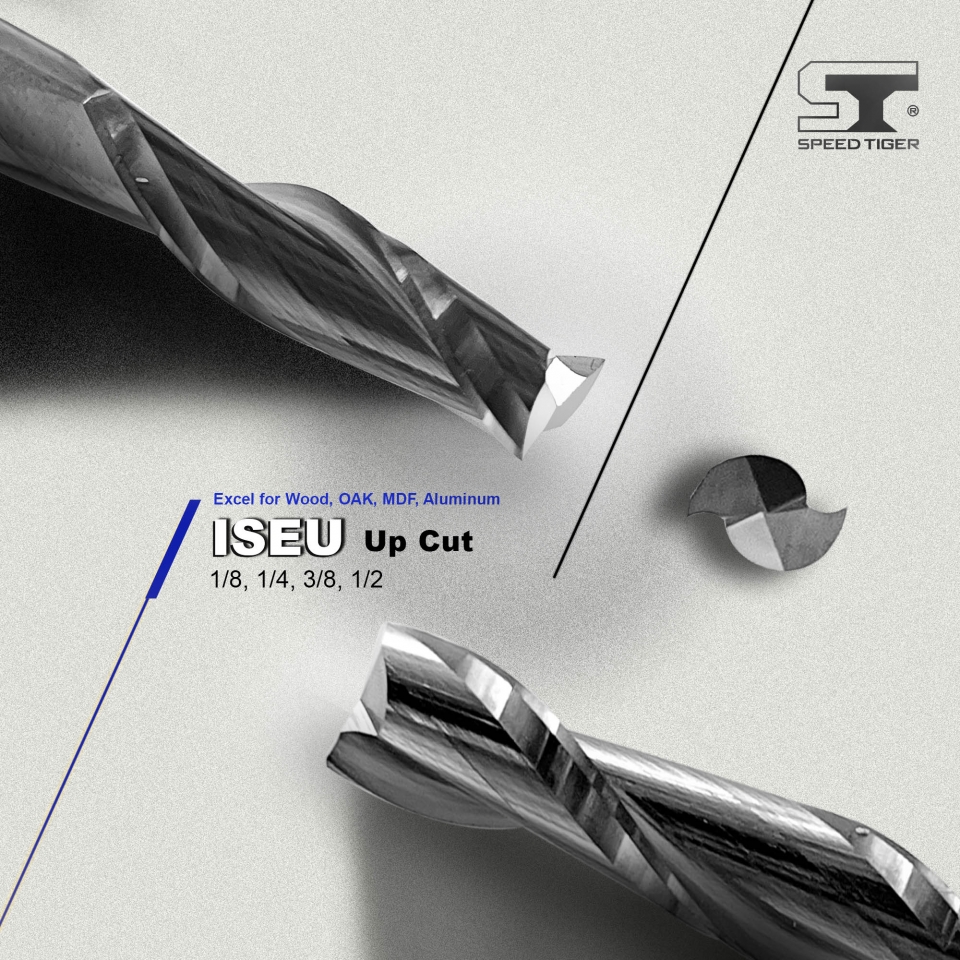

ISEU Carbide Spiral Router Bits Up Cut

Product Number:ISEU

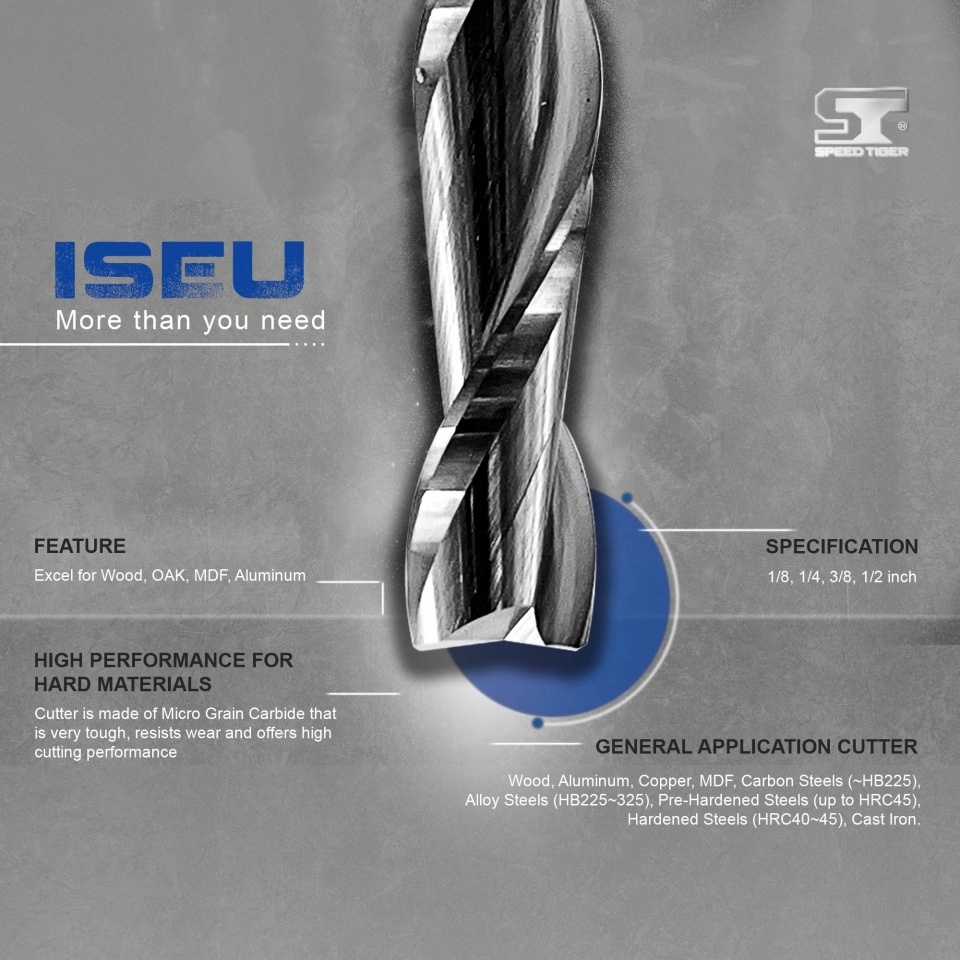

█Feature: ①HIGH PERFORMANCE FOR HARD MATERIALS - Cutter is made of Micro Grain Carbide which is very tough, resists wear and offers high cutting performance.②HIGH-QUALITY - Flutes are grounded in a world-class ISO-9001 Factory; Great performance at a competitive price. █Application:GENERAL APPLICATION CUTTER - Speed Tiger carbide tools excel at working wood, aluminum, copper, MDF, carbon steels (~HB225), alloy steels (HB225~325), pre-hardened steels (up to HRC45), hardened steels (HRC40~45) and cast iron.
  • Features



    03.ISEU

    The tools that are most commonly used in the manufacturing industry are right-handed and right-edged(Up Cut), and this why Up cut Router Bits are ideal for all kinds of standard milling. The up cut design helps move the chips up and away from the works.  If you require a better finish surface, you may choose a down up or compression cut bits.

    ISEU SERIES FEATURES
    1. HIGH PERFORMANCE FOR HARD MATERIALS - Cutter is made of Micro Grain Carbide which is very tough, resists wear and offers high cutting performance.
    2. HIGH-QUALITY - Flutes are grounded in a world-class ISO-9001 Factory; Great performance at a competitive price.
    3. High hardness-used coating, effectively improves tool life and finishes.

    Cutting Comparison

    MFC vs Aluminum
    Speed Tiger Up cut end mill has less sawdust on milling MFC and a smooth surface on cutting Aluminum. Also, the improved roughness(Ra) of Speed Tiger is better than its competitor.
    6.ISEU

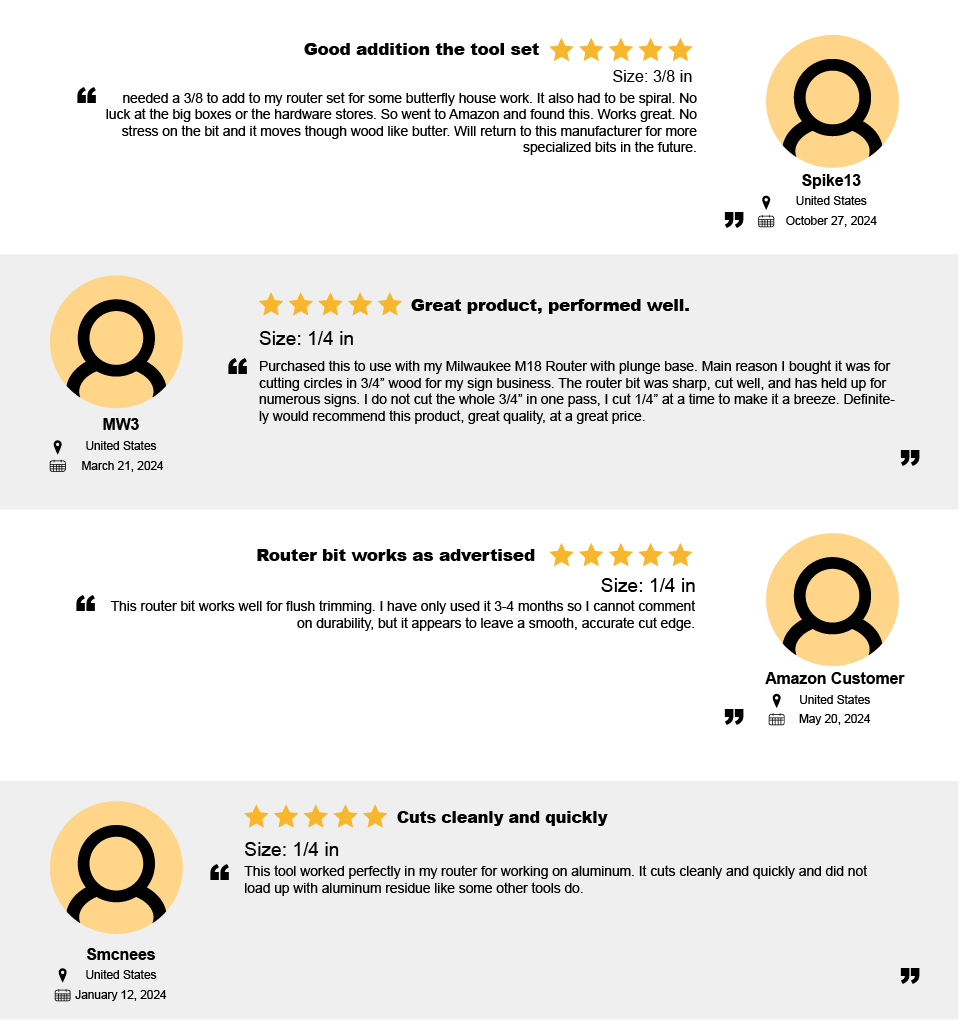

    Customer reviews



    ISEU customer reviewsend inquiry
    https://www.speedtigertools.com/inquiry/

    learn more
    The Basic(But Complete) Guide of CNC Router Bits
  • ALTIBN Coating
    coating 0428_AlTiBN



    TiSiN Coating
    coating-06



    ZrN-A Coating


    coating 0428_ZrN-A

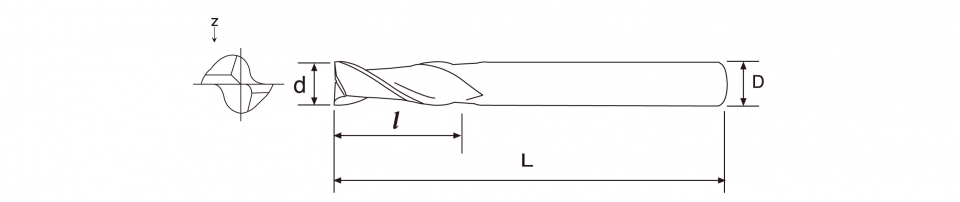

  • ISEU line drawing_工作區域 1 複本

    Mode Diameter Flute Length Full Length Shank Diameter Flutes
    ISEU1/8"2 1/8" 1/2" 2" 1/8" 2
    ISEU1/4"2 1/4" 1" 2-1/2" 1/4" 2
    ISEU3/8"2 3/8" 1" 2-1/2" 3/8" 2
    ISEU1/2"2 1/2" 1-1/4" 3" 1/2" 2
