ISED Carbide Spiral CNC Router Bits Down CutProduct Number：ISED

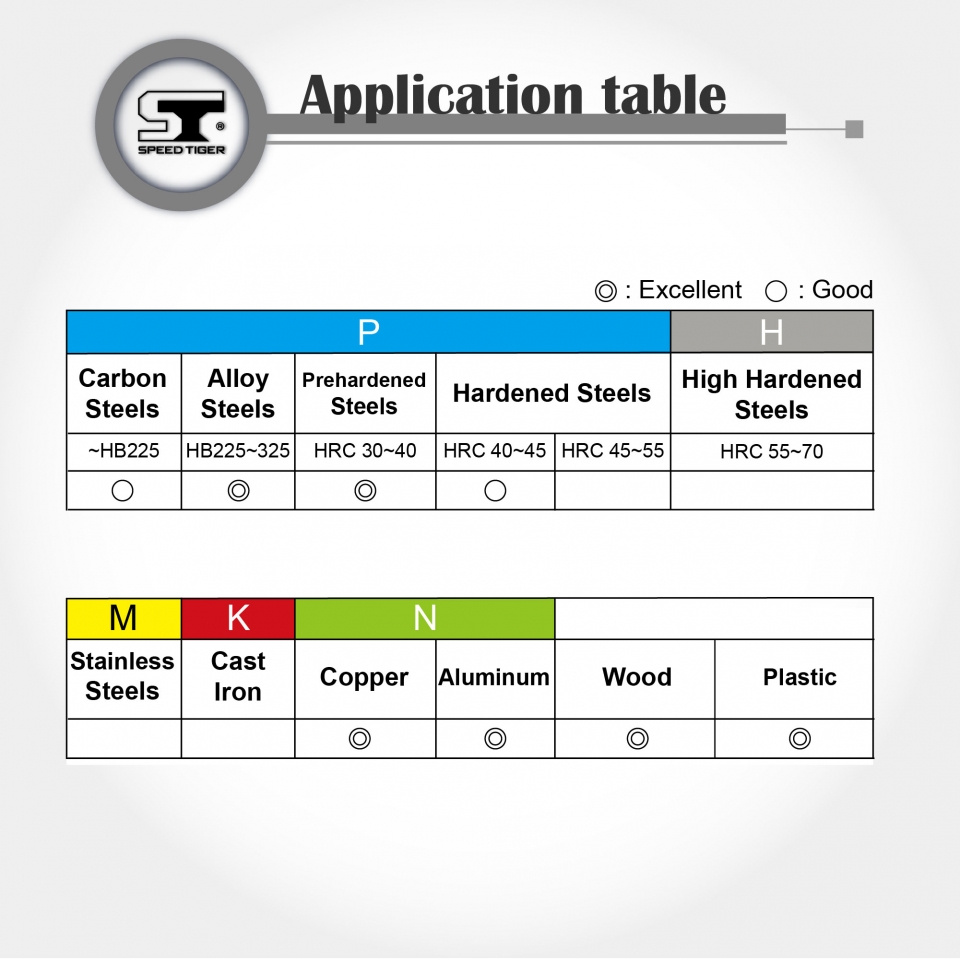

█Feature: ①HIGH PERFORMANCE FOR HARD MATERIALS - Cutter is made of Micro Grain Carbide which is very tough, resists wear and offers high cutting performance.②HIGH-QUALITY - Flutes are grounded in a world-class ISO-9001 Factory; Great performance at a competitive price. █Application:GENERAL APPLICATION CUTTER - Speed Tiger carbide tools excel at working wood, aluminum, copper, MDF, carbon steels (~HB225), alloy steels (HB225~325), pre-hardened steels (up to HRC45), hardened steels (HRC40~45) and cast iron.
Down Cut router bits are commonly used in finishing process, such as mobile phone’s keypad processing, plate processing, liquid crystal display panel, acrylic lenses, etc. With this method, the cutting force is downward, so the workpiece isn't lifted up and isn't easily displaced. Furthermore, chip removal from the machined surface is also capable of reducing cutting edge wear and reducing burrs on the machined surface. As a lazy worker, you don't have to worry about cleaning off chips on your work.
ISED SERIES FEATURES
- HIGH PERFORMANCE FOR HARD MATERIALS - Cutter is made of Micro Grain Carbide which is very tough, resists wear and offers high cutting performance.
- HIGH-QUALITY - Flutes are grounded in a world-class ISO-9001 Factory; Great performance at a competitive price.
- High hardness-used coating, effectively improves tool life and finishes.

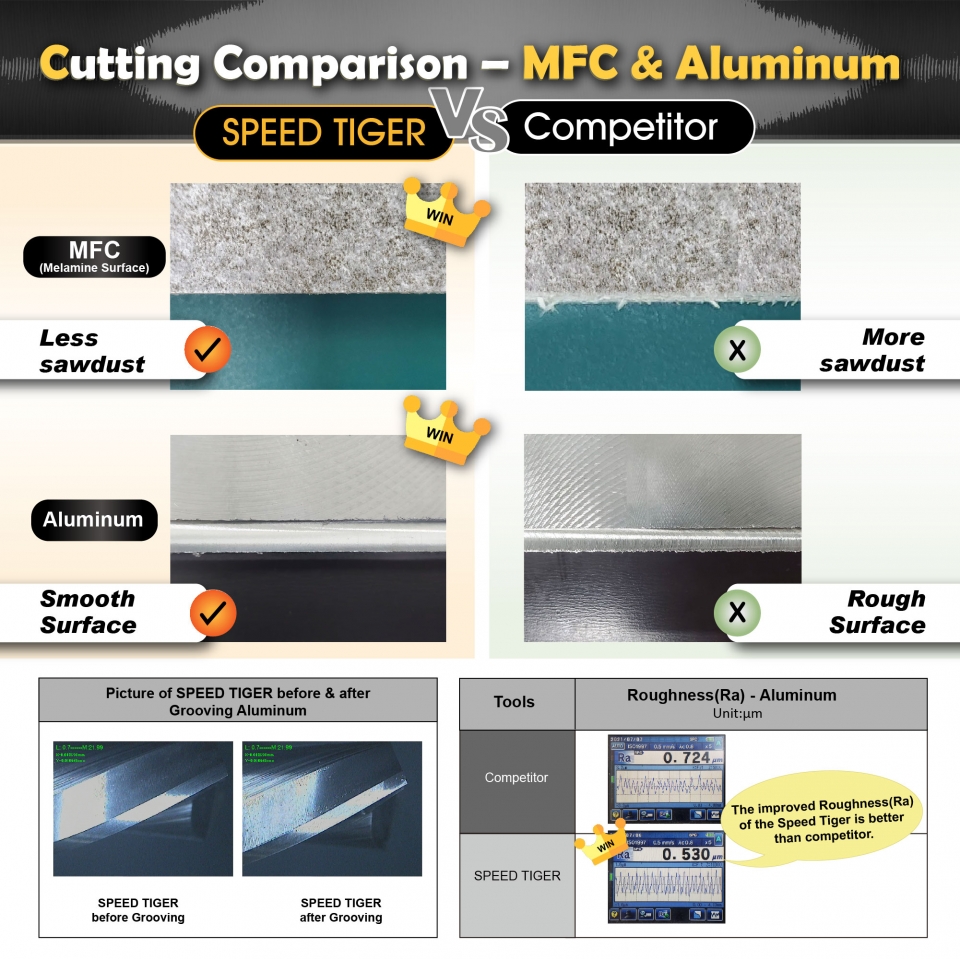

Cutting ComparisonMFC vs AluminumSpeed Tiger Down cut end mill has less sawdust on milling MFC and a smooth surface on cutting Aluminum. Also, the improved roughness(Ra) of Speed Tiger is better than its competitor.
The Basic(But Complete) Guide of CNC Router Bits

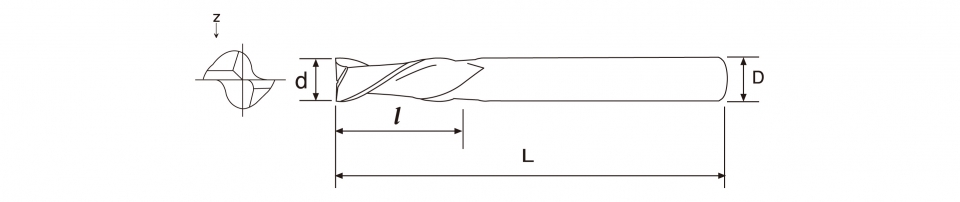

Mode Diameter Flute Length Shank Diameter Flutes ISED1/8"2 1/8" 1/2" 1/8" 2 ISED1/4"2 1/4" 1" 1/4" 2 ISED3/8"2 3/8" 1" 3/8" 2 ISED1/2"2 1/2" 1-1/4" 1/2" 2
