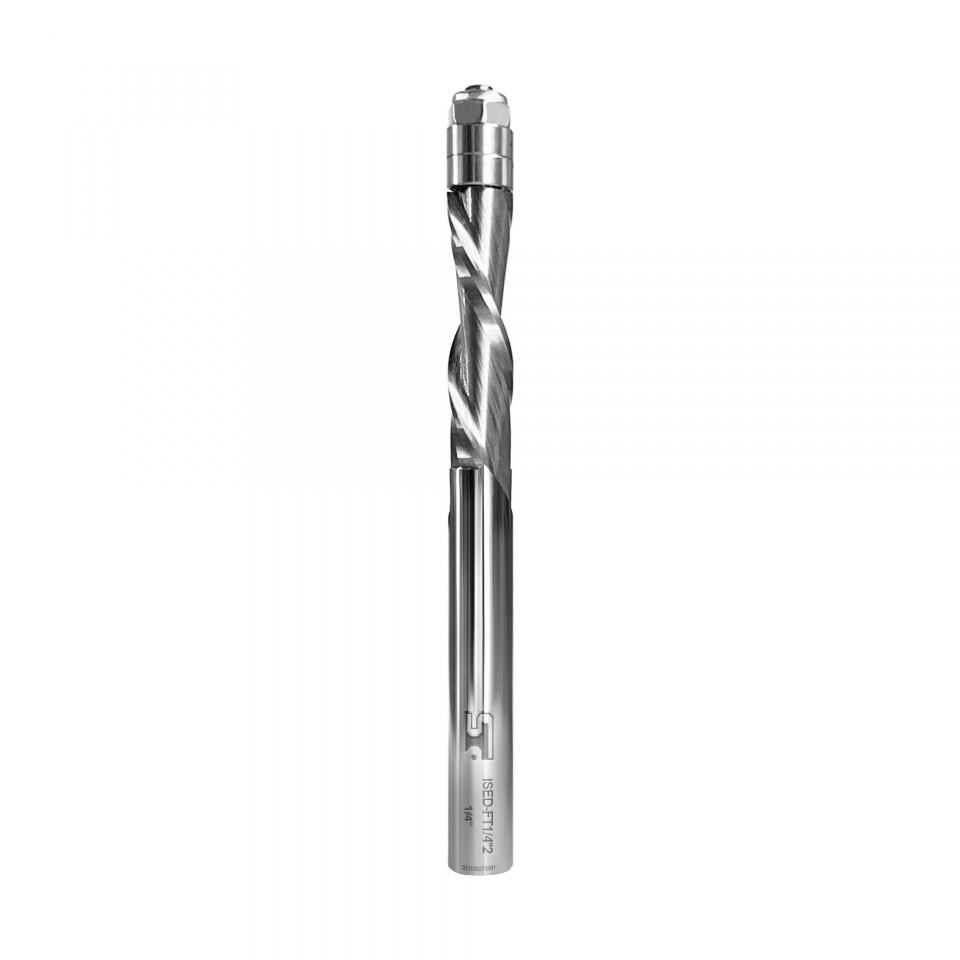

ISED-FT Carbide Spiral CNC Router Bits - Flush Trim Bit - Down Cut

Product Number:ISED-FT
█Feature: ①HIGH PERFORMANCE FOR HARD MATERIALS - Cutter is made of Micro Grain Carbide which is very tough, resists wear and offers high cutting performance.②HIGH-QUALITY - Flutes are grounded in a world-class ISO-9001 Factory; Great performance at a competitive price. █Application:Composite Materials - Speed Tiger carbide tools excel at working wood, MFC, MDF, Plywood, Hardwoods, and Softwoods.
  • Features



    03
    Down Cut router bits are commonly used in finishing process, such as mobile phone’s keypad processing, plate processing, liquid crystal display panel, acrylic lenses, etc. With this method, the cutting force is downward, so the workpiece isn't lifted up and isn't easily displaced. Furthermore, chip removal from the machined surface is also capable of reducing cutting edge wear and reducing burrs on the machined surface. As a lazy worker, you don't have to worry about cleaning off chips on your work.

    1. Composite Materials - Speed Tiger carbide tools excel at working wood, MFC, MDF, Plywood, Hardwoods, and Softwoods.
    2. HIGH PERFORMANCE FOR HARD MATERIALS - Cutter is made of Micro Grain Carbide which is very tough, resists wear and offers high cutting performance.
    3. HIGH-QUALITY - Flutes are grounded in a world-class ISO-9001 Factory; Great performance at a competitive price.
  • ALTIBN Coating
    coating 0428_AlTiBN



    TiSiN Coating
    coating-06



    ZrN-A Coating


    coating 0428_ZrN-A
  • ISEU-FT spec.
    Mode Diameter Flute Length Full Length Shank Diameter Flutes
    ISED-FT1/4"2 (Down Cut) 1/4" 1-1/8" 3" 1/4" 2
    ISEU-FT1/4"2 (Up Cut) 1/4" 1-1/8" 3" 1/4" 2
