Helix 30° End Mill for Compound Lathe - 4 Flutes

Product Number:TSTE / TTE
Diameter: 1-16mm █ Advantages of special short-flute square end mill for compound lathe. ①Specifically designed for lathe processing. ​②Improve cutting quality and processing speed. ③High precision and longer tool life. ④Be stable during the machining process, effectively achieving the anti-vibration effect and increasing the stability of the tool.
  •

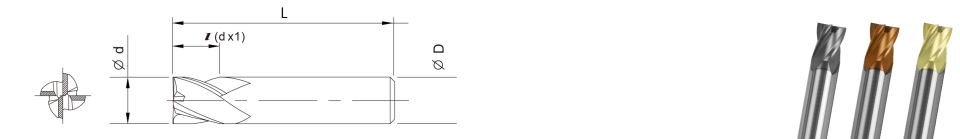

    TSTE Specification


    TSTE 4 coating
    MODE Diameter (d) Flute Length (l) Full Length (L) Shank Diameter (D) No. of
    flutes (Z)
    Coating
    ALTIBN TISIN ZrN-A
    TSTE0104 1 1 40 6 4 .01 .02 .03
    TSTE0154 1.5 1.5 40 6 4 .01 .02 .03
    TSTE0204 2 2 40 6 4 .01 .02 .03
    TSTE0254 2.5 2.5 40 6 4 .01 .02 .03
    TSTE0304 3 3 40 6 4 .01 .02 .03
    TSTE0354 3.5 3.5 40 6 4 .01 .02 .03
    TSTE0404 4 4 40 6 4 .01 .02 .03
    TSTE0504 5 5 40 6 4 .01 .02 .03
    TSTE0604 6 6 40 6 4 .01 .02 .03
    TSTE0804 8 8 40 8 4 .01 .02 .03
    TSTE1004 10 10 45 10 4 .01 .02 .03

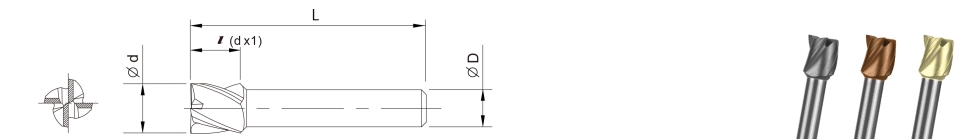

    TTE Specification




    TSTE 4 coating_1
    MODE Diameter (d) Flute Length (l) Full Length (L) Shank Diameter (D) No. of
    flutes (Z)
    Coating
    ALTIBN TISIN ZrN-A
    TTE0704 7 7 40 6 2 .01 .02 .03
    TTE0804 8 8 40 6 2 .01 .02 .03
    TTE1004 10 10 45 6 2 .01 .02 .03
    TTE1204 12 12 50 10 2 .01 .02 .03
    TTE1604 16 16 60 10 2 .01 .02 .03



    TTE application

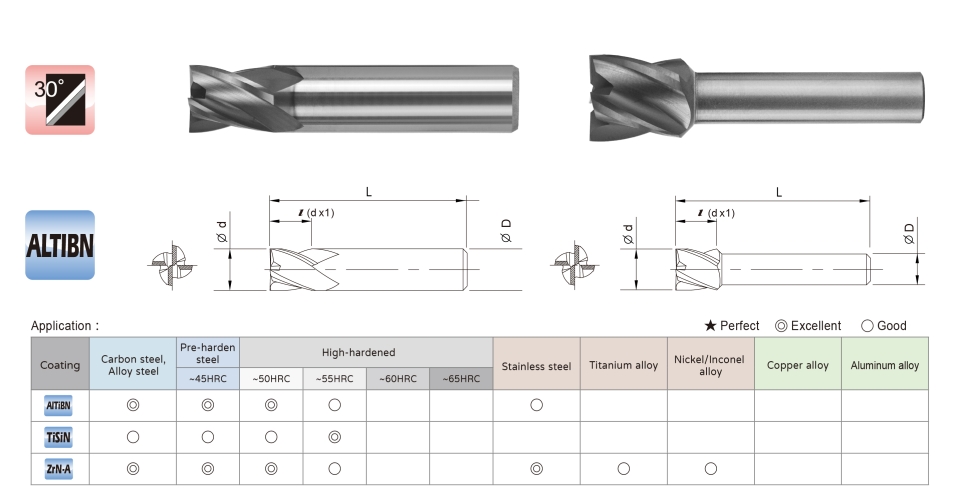

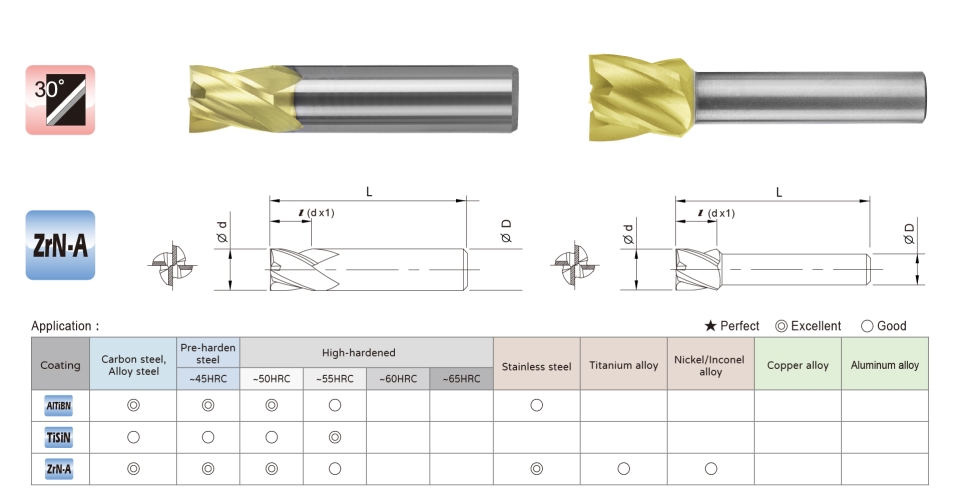

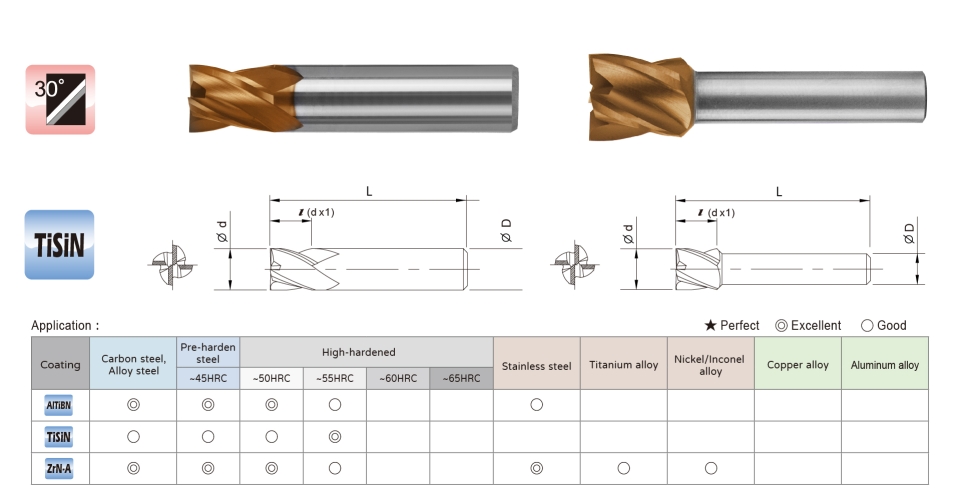

    Coating Options
    - AlTIBN (.01): for Steel
    - TiSiN (.02): for High-Hardened Steel
    - ZrN-A (.03): for Stainless Steel, Titanium
    With different coatings, it can be used on general steel, stainless steel and titanium alloy, etc.

    Application
