PRODUCTS

Aluminum End Mill for Compound Lathe - 3 Flutes

Product Number:TSAE / TAE
Diameter: 2-16mm █ Advantages of special short-flute square end mill for compound lathe. ①Specifically designed for lathe processing. ​②Improve cutting quality and processing speed. ③High precision and longer tool life. ④Be stable during the machining process, effectively achieving the anti-vibration effect and increasing the stability of the tool.
  •

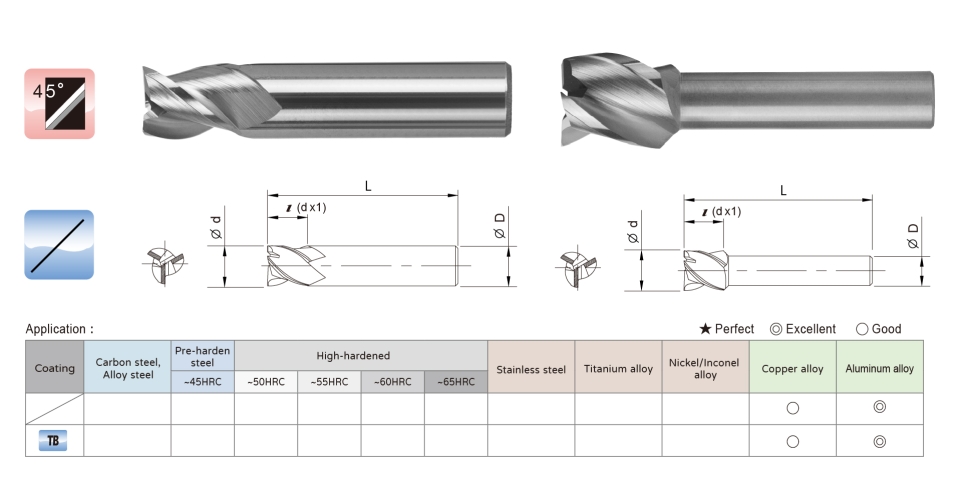

    TSAE Specification


    TSAE 3 coating
    MODE Diameter (d) Flute Length (l) Full Length (L) Shank Diameter (D) No. of
    flutes (Z)
    Coating
    / TB
    TSAE0203 2 2 40 6 2 .00 TB
    TSAE0253 2.5 2.5 40 6 2 .00 TB
    TSAE0303 3 3 40 6 2 .00 TB
    TSAE0403 4 4 40 6 2 .00 TB
    TSAE0503 5 5 40 6 2 .00 TB
    TSAE0603 6 6 40 6 2 .00 TB
    TSAE0803 8 8 40 8 2 .00 TB
    TSAE1003 10 10 45 10 2 .00 TB

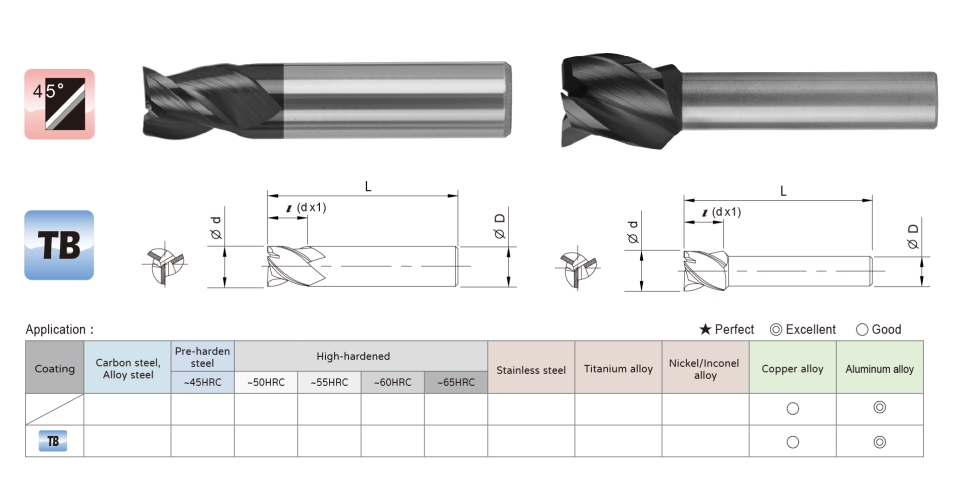

    TAE Specification




    TSAE 3 coating _1
    MODE Diameter (d) Flute Length (l) Full Length (L) Shank Diameter (D) No. of
    flutes (Z)

    Coating

    / TB
    TAE0703 7 7 40 6 2 .00 TB
    TAE0803 8 8 40 6 2 .00 TB
    TAE1003 10 10 45 6 2 .00 TB
    TAE1203 12 12 50 10 2 .00 TB
    TAE1603 16 16 60 10 2 .00 TB
       TAE 3 coating

    Coating Options
    - AlTIBN (.01): for Steel
    - TiSiN (.02): for High-Hardened Steel
    - ZrN-A (.03): for Stainless Steel, Titanium
    With different coatings, it can be used on general steel, stainless steel and titanium alloy, etc.

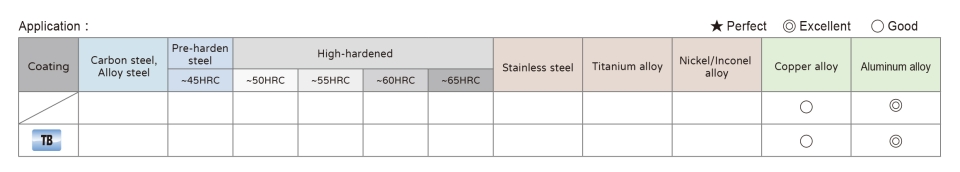

    Application
