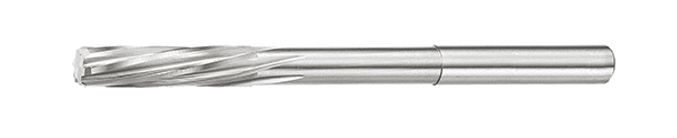

RE Reamer - 4 & 6 Flutes

Product Number:RE
Reamer Series, Diameter:1.5mm~12mm, Coating:uncoated
  • 02

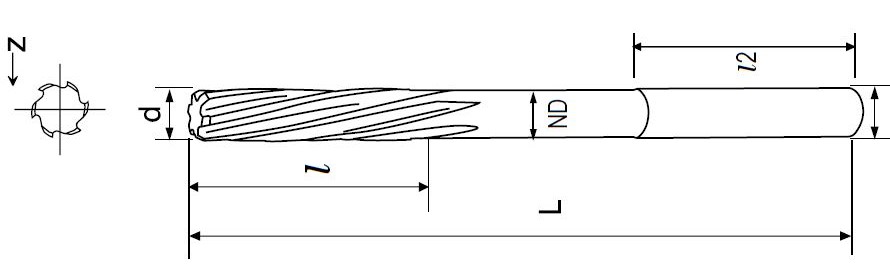

    Mode Diameter (d) Flute Length (l) Neck Diameter (ND) Shank Length (l2) Full Length (L) Flutes (z)
    RE015 1.5 8 1.35   40 4
    RE016 1.6 9 1.4   43 4
    RE017 1.7 9 1.5   43 4
    RE018 1.8 10 1.6   46 4
    RE020 2.0 11 1.8 18 49 4
    RE022 2.2 12 2.0 18 53 4
    RE025 2.5 14 2.6 20 57 4
    RE028 2.8 15 2.6 20 61 4
    RE030 3.0 16 2.8 20 65 4
    RE035 3.5 18 3.3 23 70 4
    RE040 4.0 19 3.7 25 75 4
    RE045 4.5 21 4.2 26 80 4
    RE050 5.0 23 4.7 35 86 6
    RE055 5.5 26 5.1 35 93 6
    RE060 6.0 26 5.6 35 93 6
    RE065 6.5 28 6.1 32 101 6
    RE070 7.0 31 6.5 36 109 6
    RE075 7.5 31 6.5 36 109 6
    RE080 8.0 33 7.5 42 117 6
    RE085 8.5 33 7 42 117 6
    RE090 9.0 36 8.0 42 125 6
    RE095 9.5 36 8.0 42 125 6
    RE100 10.0 38 9.0 45 133 6
    RE105 10.5 38 9.0 45 133 6
    RE110 11.0 41 9.0 50 142 6
    RE115 11.5 41 9.0 50 142 6
    RE120 12.0 44 9.0 50 151 6


  •
