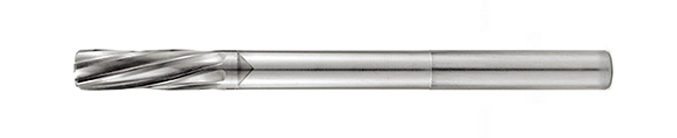

REC Carbide Edge Reamer - 6 & 8 Flutes

Product Number：REC

Reamer Series, Diameter：8.5mm~16mm, Coating：uncoated

Specification Contact us

Specification Download
Cutting Condition Download

Mode	Diameter (d)	Flute Length (l)	Neck Diameter (ND)	Shank Length (l2)	Full Length (L)	Shank Diameter (D)	Flutes (z)
REC085	8.5	33	7.0	42	117	8	6
REC090	9.0	36	8.0	42	125	10	6
REC095	9.5	36	8.0	42	125	10	6
REC100	10.0	38	9.0	42	135	10	6
REC105	10.5	38	9.0	45	133	10	6
REC110	11.0	41	9.0	50	142	10	6
REC115	11.5	41	9.0	50	142	10	6
REC120	12.0	44	9.0	50	151	12	6
REC125	12.5	44	9.0	50	151	12	6
REC130	13.0	44	11.0	50	151	12	6
REC135	13.5	47	11.0	58	160	12	8
REC140	14.0	47	11.0	58	160	12	8
REC145	14.5	50	11.0	58	162	12	8
REC150	15.0	50	11.0	58	162	12	8
REC155	15.5	52	11.0	58	170	12	8
REC160	16.0	52	11.0	58	170	12	8
