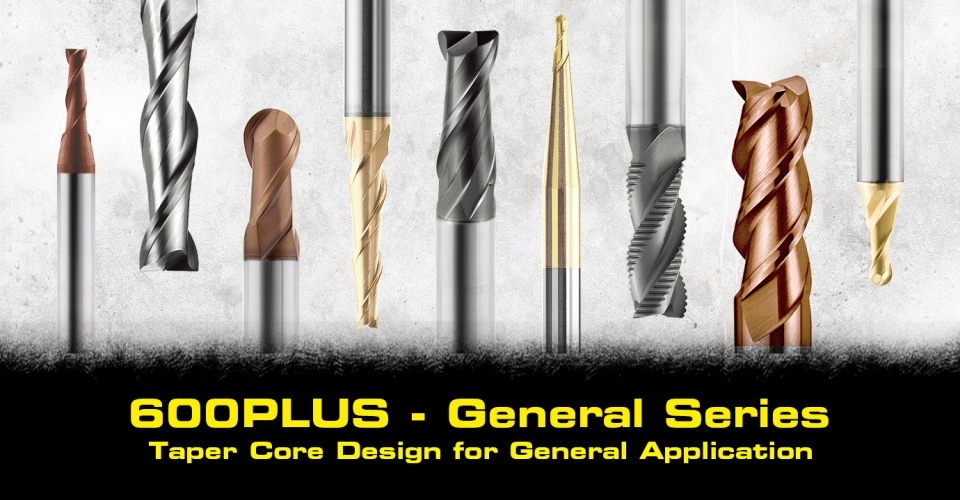

600PLUS - General Series
Product Number：Square, Ball Nose, Corner Radius, Miniature, Long Flute, Long Neck, Long Shank, Taper Flute, Pencil Neck
█Feature:
①Speed Tiger End Mills Type: Square, Ball Nose, Corner Radius, Miniature, Long Flute, Long Neck, Long Shank, Taper Flute, Pencil Neck, Finishing, Roughing...
②HIGH PERFORMANCE FOR HARD MATERIALS - Cutter is made of Micro Grain Carbide that is very tough, resists wear and offers high cutting performance
③HIGH-QUALITY - Flutes ground by a world-class ISO-9001 Factory; Great performance at a competitive price
█Application: GENERAL APPLICATION CUTTER - Speed Tiger 600PLUS carbide tools excel at working carbon steels (~HB225), alloy steels (HB225~325), pre-hardened steels (up to HRC45), hardened Steels (HRC40~45), cast iron
-
Features

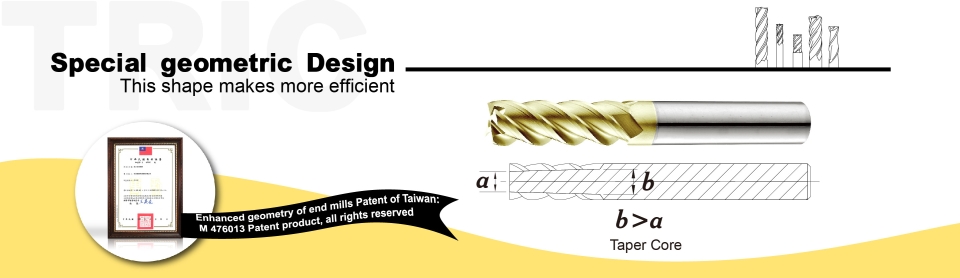

- Maximized rigidity, and chip removals are greatly improved due to special geometric design and reinforced design in cutting edges against chipping at corners.
- Excellent performance of anti-vibration and noise.
- High hardness-used coating, effectively improves tool life and finishes.
Cutting Performance

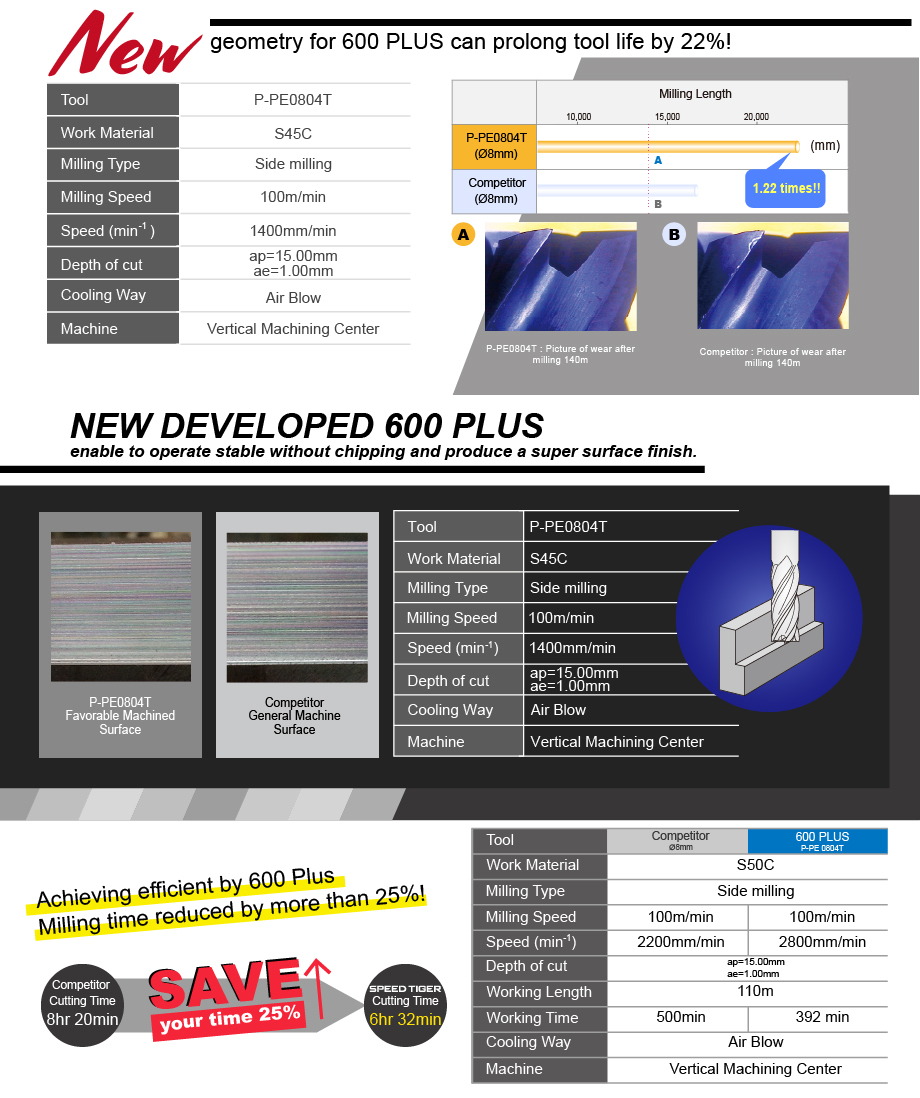

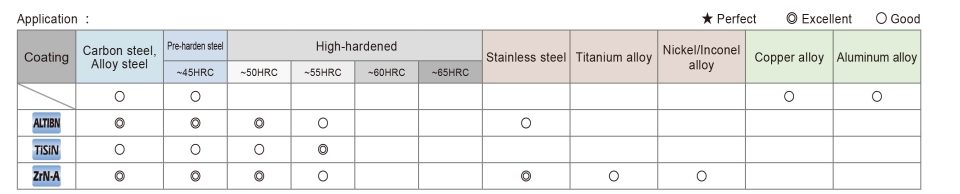

Coating Options
Speed Tiger is not only the largest cutting tools manufacturer, but also the first one that combined milling cutter coating technology in Taiwan. We provide a variety of coating types for different application, you could easily choose the most suitable coating for your work. For detailed coating information, please refer to next tab.
Package & Shipping
Delivery :
Generally， it is 5-7 days if the goods are in stock.
It is 15-20 days if the goods are not in stock, it is according to quantity.
https://www.speedtigertools.com/contact/ -
ALTIBN Coating

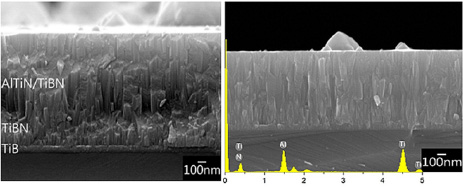

Coating Structural Analysis-SEM
Normal Temperature Mechanical Analysis
In normal temperature mechanical analysis,the performance of AlTiBN is superior to AlTiN in hardness, wear rate and coating roughness.Hardness (Hv) Impact of Diameter Lc2-Lc1 Wear Rate Roughness (µm) AlTiN 3672 305(um) 8.28N 6.49x10-6 0.233 AlTiBN 4088 280.9(um) 17.6N 5.11x10-6 0.166
The Oxidation Wear of 700°C

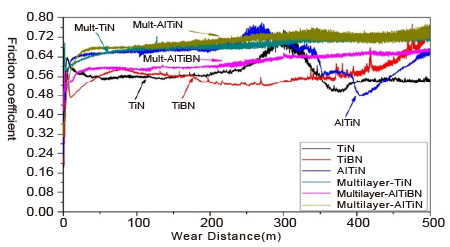

Fiction Coefficient Wear Distance Wear rate TiN 0.5662 316.3 6.4x10-6 TiBN 0.5664 281.2 5.69x10-6 AlTiN 0.6402 281.4 4.97x10-6 Multi-TiN 0.686 277.4 4.82x10-6 ALTIBN 0.618 281.8 4.66x10-6 Mult-ALTiN 0.7014 290.1 5.5x10-6

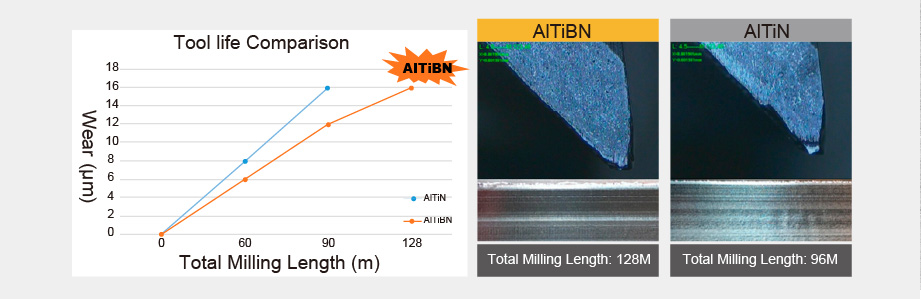

Tool Life Comparison and Cutting Edges
Milling Type Side Milling Feed Rate 1082mm/min Work Piece S45C Depth of Cut ap=20 ae=1.2 Tool Size 10mm x 30 x 75L Coolant Way Air Rotation Speed 3183 rpm CNC Machine CNC YCM FV102A TiSiN Coating
New Nano-composite coating material achieves extraordinary heat resistance and hardness. This is attained due to the new composite layer, consisting of nano-crystal material (Oxidizing temperature：1100℃, Layer hardness：HV 3600). Achieves extraordinary performance in high-speed cutting, and high efficient machining of hardened steel, machining efficiency is more than twice as effective as other manufacturers solid carbide end mills.
Ensuring long life and reliability in hardened steel applications HRC45~55 material examples：1.2080, 1.2344, and 1.2379, ASP Power Steels, High Speed Steels.
The coating generates less heat during cutting; therefore it is well suited to dry machining conditions.
Newly developed TiSiN Coating has excellent oxidation-resistant properties, this achieves：
High speed cutting of hard steels = High Efficiency
Improvement in tool life = Lower tooling costs The newly designed flute geometry increases rigidity, with the improved high radius accuracy producing higher tolerance, and smoother surface finish.
Direct Milling of hardened steel is now possible = Faster production times.
Patent of Taiwan No : I 280288 (the method of tool surface hardening)
ZrN-A Coating
Block resistance- Suitable for High Speed machining with both dry and wet cutting way.
- Hardness 2800~3000 HV
- Coefficient of friction: 0.3
- Oxidation Temp: 800~900°C
- High performance coating(Light golden)

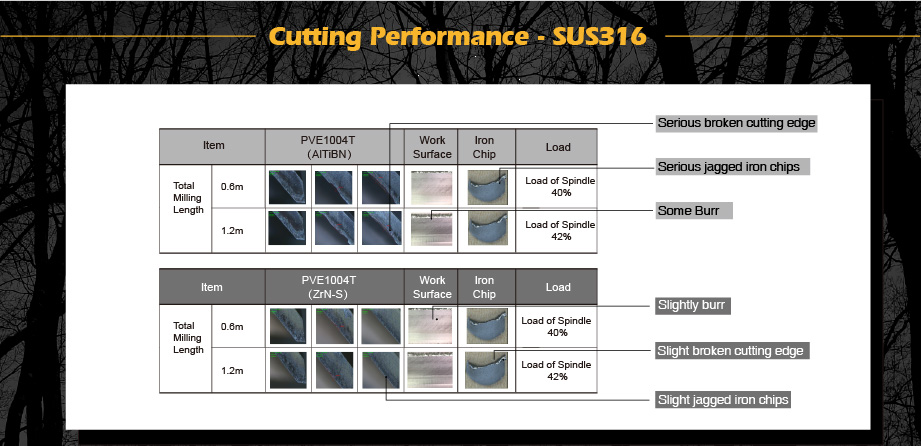

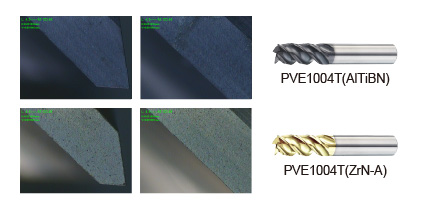

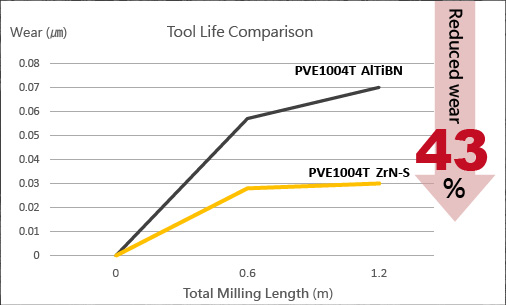

Measured comparison-SUS316
Before the tool is used
Parameter Tool(Coating) PVE 1004 ZrN-A Cutting Material SUS316 Rotation Speed (S) 2644 rpm Milling Speed (Vc) 100 m/min Feed Rate (F) 646 mm/min Depth of cut ap=10mm / ae=10mm (Fz) Feed of teeth 0.062 Machine YCM FV102A Holder BT40 Shrink fit holder The length of Tool Extend 37mm Cooling Way Water
Parameter Tool(Coating) PVE 1004 ZrN-S Cutting Material SUS316 Rotation Speed (S) 2644 rpm Milling Speed (Vc) 100 m/min Feed Rate (F) 646 mm/min Depth of cut ap=10mm / ae=10mm (Fz) Feed of teeth 0.062 Machine YCM FV102A Holder BT40 Shrink fit holder The length of Tool Extend 37mm Cooling Way Water
Coating Total Milling Length (m) 0.6m 1.2m ALTIBN 0.057µm 0.07µm ZrN-S 0.0µm 0.03µm
-
Specification Download
Cutting Condition Download

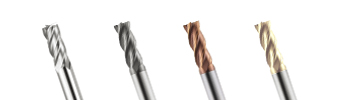

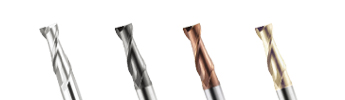

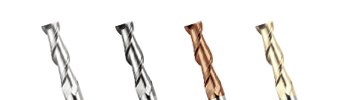

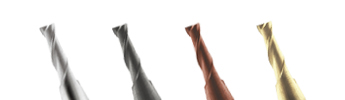

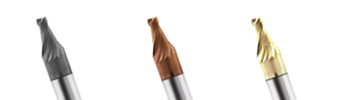

Type Mode Flutes Diameter Photo Miniature Square P-MIE 2 0.2 mm~3mm

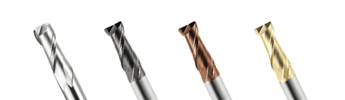

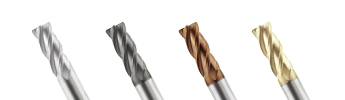

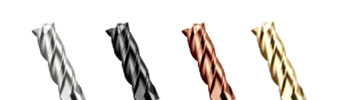

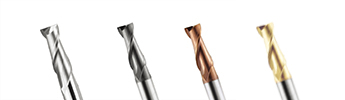

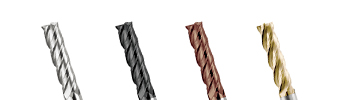

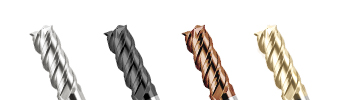

Square (35°) P-SSE,P-MSE,P-SE 2 / 4 1mm~20mm

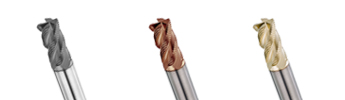

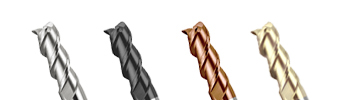

Square (45°) P-MPE,P-PE 3 / 4 1mm~20mm
Long Shank Square P-SLE, P-MLE 2/4 6mm~12mm
Long Flute Square P-LET 2/4 1mm~20mm

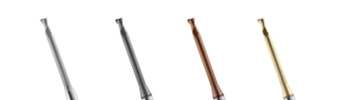

Long Neck Square P-LNT 2 0.5mm~4mm

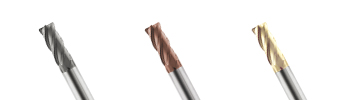

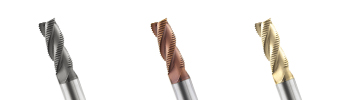

Roughing Square P-NTA 3/4 4mm~20mm
Roughing Square P-XTA 3/4 4mm~20mm

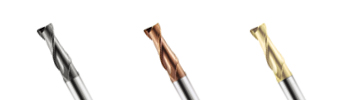

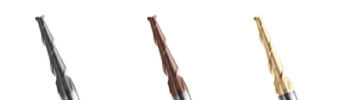

Taper Square P-TTA 2 0.5mm~10mm
Taper Long Flute Square P-LTTA 2 1mm~6mm

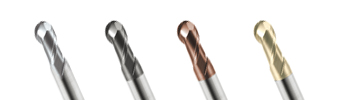

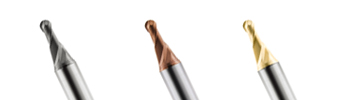

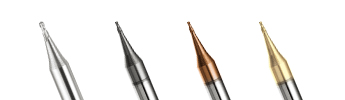

Miniature Ball Nose P-MIB 2 0.15R~3R

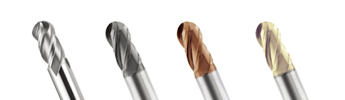

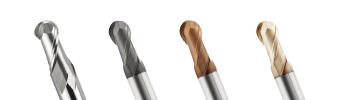

Ball Nose P-SSB,P-MSB,P-SB 2 /4 0.5R~10R
Long Shank Ball Nose P-SLB,P-MLB,P-LLB,P-XLB 2 0.5R~8R

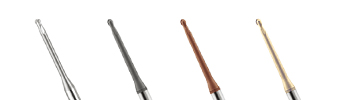

Long Neck Ball Nose P-LNBT 2 0.25R~2R
Pencil Neck Ball Nose P-PBTA 2 0.5R~4R

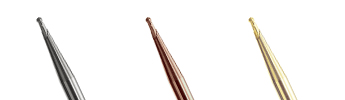

Taper Ball Nose P-TBTA 2 0.5R~1.5R
Corner Radius P-RTA 2 /4 1mm~12mm
Long Shank Corner Radius P-LRTA 2 /4 3mm~12mm
-
-
